Basic Info
Model NO.: CY-EQ-MFC
Type: Controller
Gas Pressure: 0.1-0.5MPa
Working Temperature: -10c-50c
Warranty: One Year
Structure: Desktop
Trademark: CY
Specification: 0-200sccm
HS Code: 85141090
Application: Lab, School, Industry
Certification: TUV, CE
Max. Pressure: 1MPa
Display: LED
Customized: Customized
Material: Stainless Steel
Transport Package: Wooden Box
Origin: Zhengzhou, China
Product Description

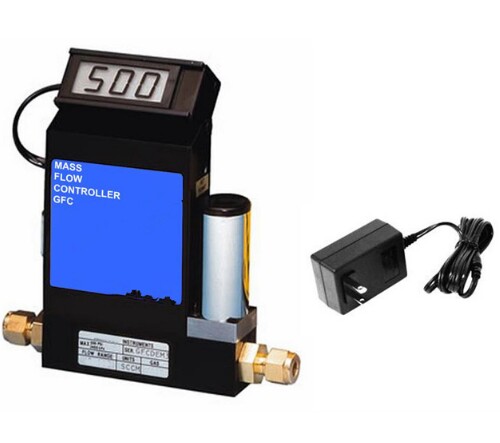

Precision Mass Flow Controller with Digital Display & Stainless Steel Body 0 - 200 SCCM
Specifications:
| Flow range | 0 - 200 Standard |
| Materials | SS 316 |
| Control Resolution | +/- 1% FS ( constant flow rate ) |
| Accuracy | +/- 2% FS |
| Linear | +/- 2% FS |
| Gas pressure range | 0.1 - 0.5 Mpa |
| Max. Pressure | 1 Mpa |
| Working Temperature | -10oC ~ 50oC |
| Power supply | AC (110-240V) to DC 15V / 0.5 A (included) |
| Output signal | 4 - 20 mA |
| Control Method | touch button in front panel |
| Display | LED digital |
| Inlet/Outlet Fitting | 1/4'' Swagelok Tube Fitting |
| Dimension | 168 L x 30 W x 132 H, mm |
| Weight | 920 grams (2 lbs) |
| Shipping Dimension | 13'' L x 10'' W x 5'' H |
