Basic Info
Model NO.: CY-EQ-W1000-LD
Customized: Customized
Certification: CE, TUV
Type: Electrochemical Gas Analyzer
Alarms: High / Low Programmable Limits with Delay
Repeatability: +/- 0.5% Full Scale
Trademark: CY
Specification: 0 - 1000ppm
HS Code: 85141090
Brand: Cy
Portable: Portable
Gas: O₃
Display: Large Color Screen
Accuracy: +/- 1% Full Scale Range
Warranty: 12 Months
Transport Package: Wooden Box
Origin: Zhengzhou, China
Product Description

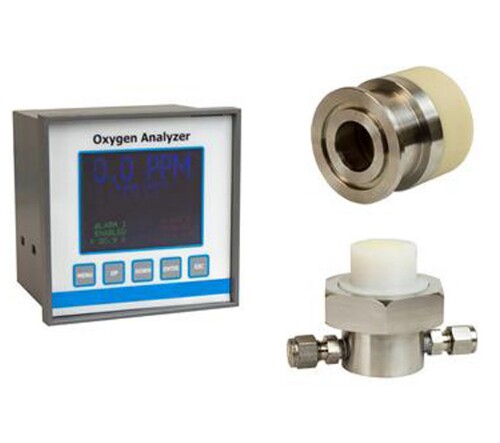

Trace Oxygen Analyzer (0 - 1000ppm) with KF40 & Flow Housings - EQ-W1000-LD
Introduction
The W1000 microprocessor based analyzer is ideal for the continuous measurement of gas mixtures in applications that demand heavy monitoring of the gas environment. A full color back light display shows the oxygen content data relayed by a precision electrochemical sensor in real time with compensation for temperature and barometric pressure variations. Two fully programmable alarms with built in delay enable the user to exert more control on processes.
Specification
| Features | Precision electrochemical sensor provides precision reading with rapid response time
Five auto-ranging measurement scales available: 0 to 10/ 100/ 1000 ppm, 0 to 1/ 25%
Perfect for high-precision oxygen detection inside a glove box or other enclosures
KF40 Housing provides easy connection to MTI stainless steel glove boxes with KF40 ports ( KF40 to KF25 reducer is available for connection to KF25 ports, please click here to order)
Flow Through housing with Swagelok fittings for monitoring gas applications requiring incoming gas lines with positive pressure |
| Analyzer | Measuring Ranges 5 Modes: 0 - 10ppm, 0 - 100ppm, 0 - 1000ppm, 0 - 1%, and 0 - 25%
Display Large color screen with backlight
Response Time (T90) 10 seconds
Alarms High / Low programmable limits with Delay
Power Input 100 ~ 240V AC
Enclosure General purpose ABS construction with 1/4 DIN flush mount
Enclosure Dimensions 85 x 96 x 96mm (L x W x H) |
| Oxygen Sensor | Glove Box Sensor
Provides the best response when used in enclosed environments where battery R&D is conducted; measures trace oxygen levels in purge gases (e.g. N2 and Argon). | Furnace Sensor
Designed for CVD applications when acid and aggressive gases (e.g. CO2, HCI, HCN, and etc.) will be present. |
Micro fuel cell technology
Accuracy: +/- 1% Full Scale Range
Repeatability: +/- 0.5% Full Scale
Temperature Coefficient: 2.54%/ ºC
Operating Temperature: 0 to 50 ºC
Storage Temperature: 0 to 45 ºC
Recommended Gas Flow: 0.5 - 2 SCFH (Standard Cubic Feet per Hour)
Humidity: 0 - 100% Relative; Non-Condensing
Longevity: 17 - 25 Months |
| Weight | 2 lbs |
| Warranty | One year limited coverage with lifetime support |
