Basic Info
Model NO.: CY-EQ-MSK-BK300
Structure: Desktop
Certification: CE, TUV
Type: Measurement Type
Voltage Measurment Range: DC 0 ~ 1.999V
Battery Holder: Optional
Transport Package: Wooden Box
Origin: Zhengzhou, China
Customized: Customized
Material: Alloy
Application: School, Lab
Accuracy: 0.3%
Warranty: One Year
Trademark: CY
Specification: 1m-ohm ~199.9m-ohm
HS Code: 85141090
Product Description

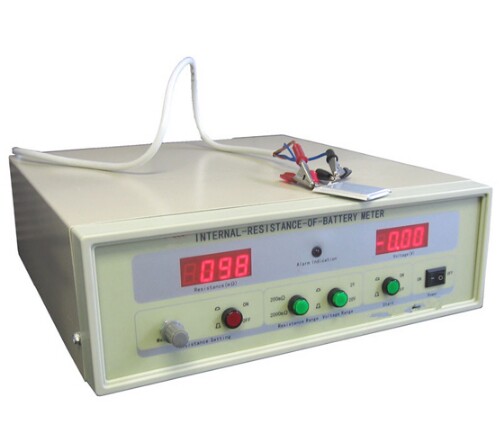

Internal Resistance Tester for All Batteries ( 1 - 1999 m-ohm) - EQ-MSK-BK300
Introduction
EQ-MSK-BK300 is a precision internal resistance meter for R&D or quality control of all rechargeable battery, which has accuracy up to 1 milli-ohm and can measure any battery from 0-19.99V. It is ideal tool for UN38.3 Initial Characteristics
Specification
| Features | Adopts sine wave AC power with frequency of 1000Hz to carry out test on the battery internal resistance. AC current used for test is about 10mA.
Applicable for internal resistance test of conventional capacitance single battery and its battery group.
Built-in standard precision resistance (50 m-ohm), facilitating the user to calibrate the instrument test accuracy.
Capable of judging synchronously battery internal resistance and voltage, using microprocessor to set the upper/lower limit of the internal resistance and voltage alarm, outputting the audible and visual alarm. |
| Available battery voltage measuring range | Two selectable ranges:
DC 0 ~ 1.999V +/- (Accuracy: 0.2% RD + 0.1% FS with resolution +/- 1mV)
DC 2 ~ 19.99V +/- (Accuracy: 0.2% RD + 0.1% FS with resolution +/- 10mV) |
Battery
internal resistance | Two selectable ranges:
1m-ohm ~199.9m-ohm: Accuracy: +/- (0.3% RD + 0.5 m-ohm) with resolution +/- 0.1m-ohm
200 m-ohm ~1999m-ohm: Accuracy +/- (0.3% RD +2 m-ohm) with resolution +/- 1.0 m-ohm |
| Optional | Then cylinder battery holder and cable are optional for measuring cylinder cell and battery pack at easy. |
| Voltage | AC110/220V, 50/60HZ, dissipation < 10W,
(FOR 110V, PLEASE USE the EQ-AD-TF 60W transformer which can plug into 110V power and is included in the package. |
| Dimension | 340 (W) x 110 (H) x 365 (D). |
| Warranty | One year limited with life time support |
