Basic Info
Model NO.: CY-MSK-SFM-ALO
Motor Type: DC Motor
Application: Metallurgy
Outlet Size: 0.1-3mm
Condition: New
Jaw Plates: High Purity Alumina Plates
Warranty: 12 Months
Trademark: CY
Specification: 90mm x 25mm loading port
HS Code: 85141090
Type: Jaw Crusher
Motor Power: 500W
Materials: Fine Sandstone
Inlet Size: 5-40mm
Crushing Speed: 400 Times Per Minute
Timer: 0-60 Minutes
Certificate: Ce/TUV
Transport Package: Wooden Box
Origin: Zhengzhou, China
Product Description

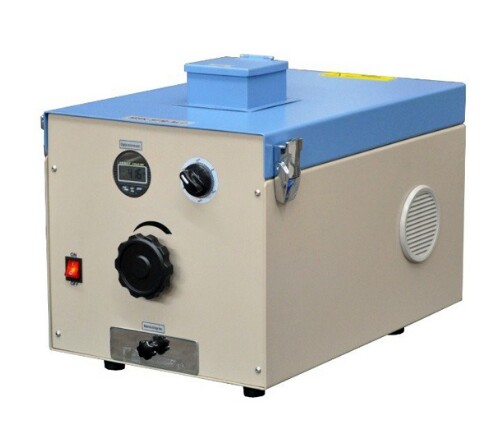

Compact Electric Jaw Crusher with Digital Size Control -- MSK-SFM-ALO
Introduction
MSK-SFM-ALO is a compact electric jaw crusher with adjustable digital crushing size controller. Two jaw plates are made of high purity alumina to avoid metallic contamination while crushing materials. It is useful to break up sintered bulks prior to ball milling and saves the researcher labor and time.
Specification
| Working Voltage | 208 - 240VAC 50Hz, 500W |
| Crushing Speed | 400 times per minute |
| Timer | 0 to 60 minutes adjustable |
| Jaw Plates | Two high purity alumina plates
Easy remove for cleaning.
90mm x 25mm loading port |
| Crushing Size | Input:
Material Hardness must be < Mohs 8
Sample size: 5 - 20 mm diameter or thickness
~ 200 g of input materials can be added at once
Output:
Output size : 0.1 mm - 3 mm (adjustable via a digital micrometer).
Crushing quantity: ~ 200 g is accepted by underneath drawer each time.
Use a slide plate instead of the drawer, continuous output of samples can be achieved with continuous feeding of input materials. |
| Net Weight | 150 lbs |
| Shipping Weight | 185 lbs |
| Dimensions | L325mm×W500mm×H310mm |
| Compliance | CE certified |
| Warranty | One years limited warranty with lifetime technical support |
