Basic Info
Model NO.: MSK-T-10
Certification: CE, TUV
Suitable for: Plastic, Alloy, Stainless Steel
Structure: Cr Plated Steel
Cutting Die Material: Stainless Steel
Transport Package: Wooden Box
Origin: Zhengzhou, China
Condition: New
Automation: Manual
Cutting Die: Customized
Warranty: 12 Months
Trademark: CY
Specification: 3-24mm die
HS Code: 85141090
Product Description

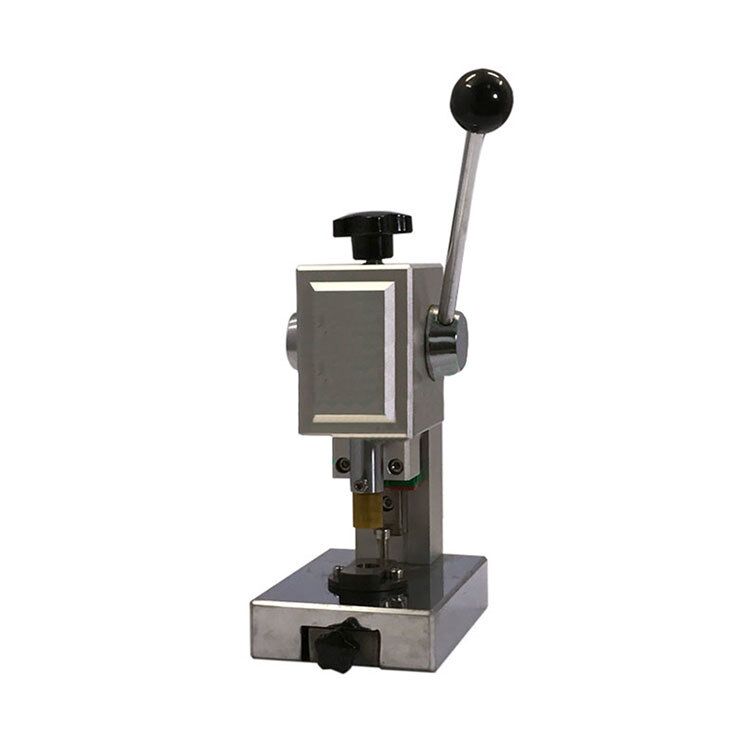

Precision Disc Cutter with Standard 16, 19, 20 Dia. Cutting Die & 3 - 24mm Optional - MSK-T-10
Introduction
MSK-T-10 is a compact disc cutter with quality sliding rail with ball bearing for precision cutting. It can be easily placed into a glove box with a transition chamber diameter larger than 230mm. This tool is manually operated and is designed for cutting round discs from thin metal sheet/foil (< 0.5 mm) or separator film (<30um). The resulting discs can be used as electrode/separator discs of split test cell and coin cell for battery researches as well as TEM sample preparation.
Specification
| Structure | Major structural material: Cr Plated Steel |
| Cutting Die | 16, 19, and 20mm precision dies are included in standard package
Optional 3 - 24mm customized dies are available upon request |
| Product Dimensions | 209mm(L) x 120mm(W) x 394mm(H)
Compact size which can be put into glovebox through air lock chamber |
| Warranty | One year limited manufacture warranty with lifetime support
Rusting and damage due to improper storage condition or maintenance is not covered by warranty |
