200c Max 4" Width Electric Hot Rolling Press with Variable Speed

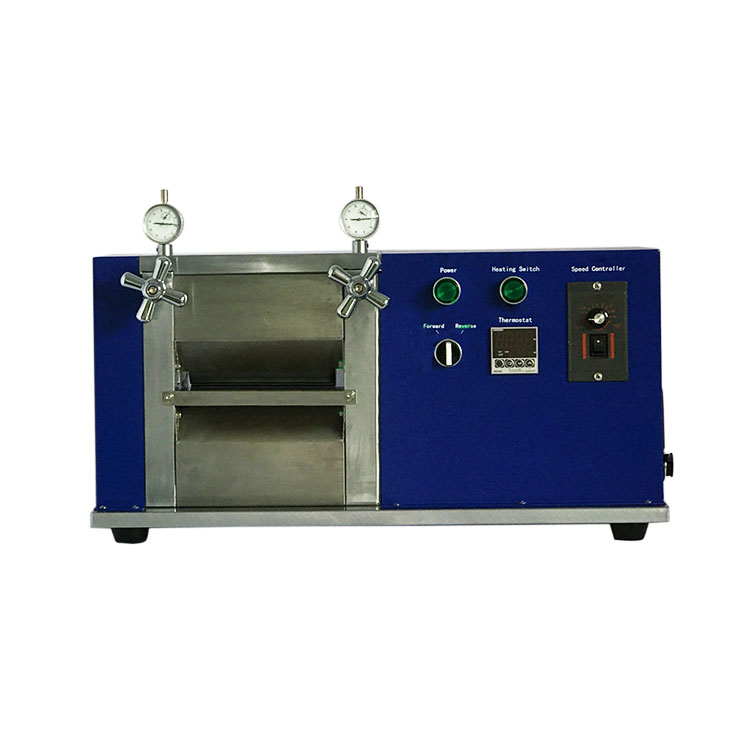

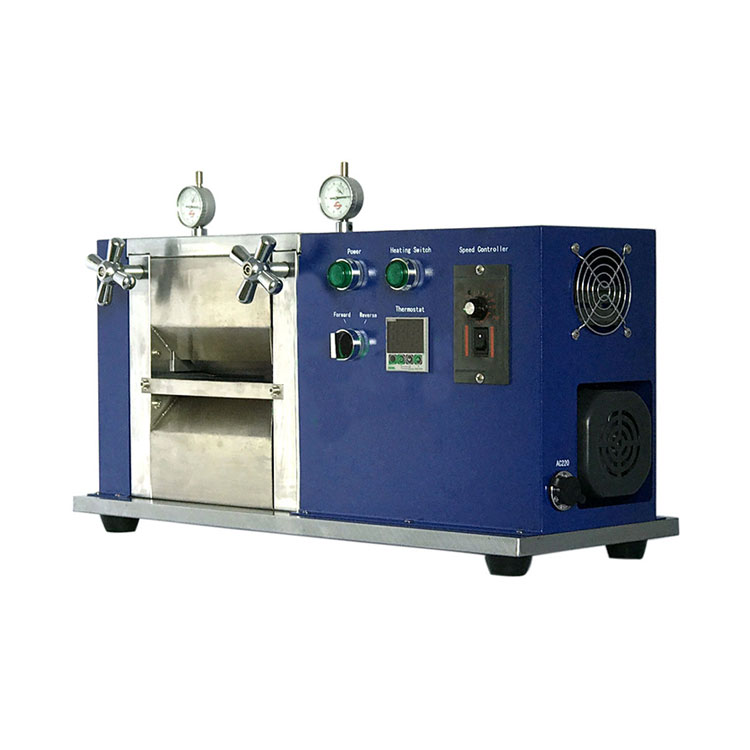

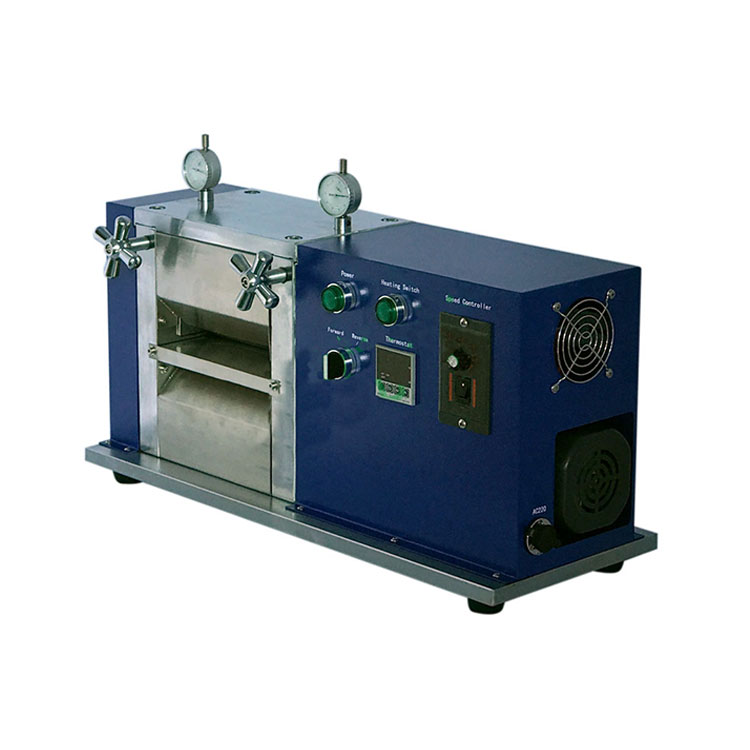

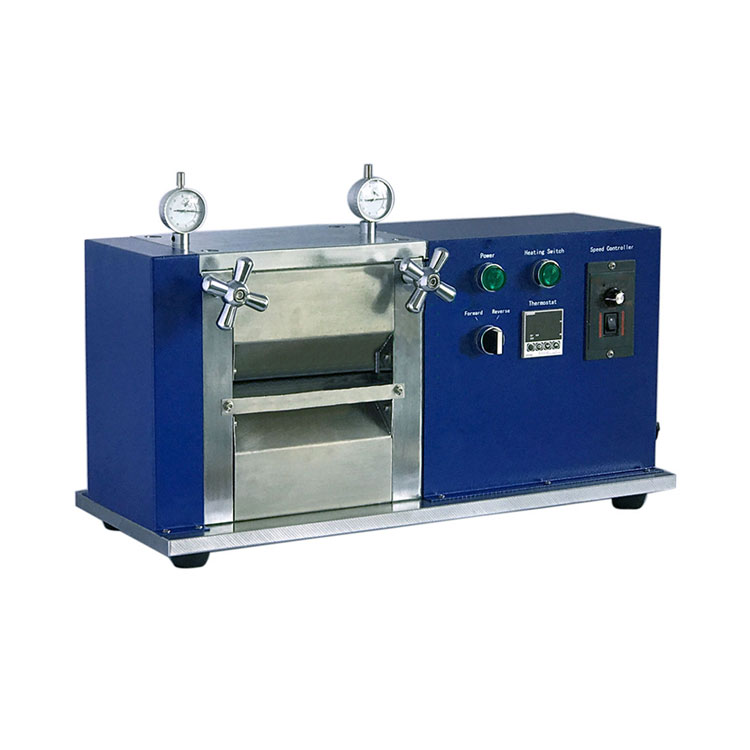

CY-HRP-1A is compact Hot Rolling Cylinder Press with max. Working temperature of 200ºC, which is designed for preparing battery electrode for both inside or outside glove box because the high torque DC motor is Ar gas compatible. It serves well in the application such as increasing active material density of the electrode in Li-ion batteries research after coating. It has a pair of 100mm width steel rollers with a heating capacity of 200ºC max.

Inquire Now Next Product

Basic Info

Model NO.: CY-HRP-1A
Feature: High Efficiency
Condition: New
Warranty: 12 Months
Transport Package: Plywood Box
Origin: Henan, China
Type: Rolling Press
Certification: CE
Customized: Customized
Trademark: CYKY
Specification: 530mm* 247mm* 380mm

Product Description

200ºC Max. 4" Width Electric Hot Rolling Press with Variable Speed CY-HRP-1A
Brief Introduction
CY-HRP-1A is compact Hot Rolling Cylinder Press with max. Working temperature of 200ºC, which is designed for preparing battery electrode for both inside or outside glove box because the high torque DC motor is Ar gas compatible. It serves well in the application such as increasing active material density of the electrode in Li-ion batteries research after coating. It has a pair of 100mm width steel rollers with a heating capacity of 200ºC max.
Specifications
Effective Cylinder Width: 96mm
Roller Size: 96mm( Dia) * 100mm( W)
Rolling Gap Thickness: 0~1.2mm adjustable
Dial Gauge Accuracy: 0.01mm
Minimum Thickness: Depending on the electrode's material and thickness, typically
                  1) 0.16mm thick electrode coated on copper can be pressed into a minimum thickness of 0.1mm
                  2) 0.06mm thick electrode coated on copper can be pressed into a minimum thickness of 0.04mm
                  3) 0.33mm thick silver/ gold can be pressed into a minimum thickness of 0.03mm
Heating Temperature: 1) Two independent temperature controllers enable dual-zone temperature control for the upper and lower rollers
                     2) 200ºC maximum for less than one hour.
                     3) 180ºC continuously
                     4) Recommended Heating Rate: 1.3ºC/ min
                     5) Power of Heating Element: 500W
                     6) Precision temperature controller with ±1ºC Accuracy
Voltage: AC 208~240V Single phase 50/ 60 Hz
Motor: 1) High torque 24V DC motor with reducing gear
       2) 0.8A
       3) Rated power 40W
       4) Speed Indicator Display: 0~40
       5) Actual rolling speed: 0~26mm/ sec
Power Consumption: 1000W max
Surface Hardness of Rollers: HRC60~62( Never roll materials with hardness> 50HRC)
Feeding Board: 2PTFE feeding boards included
Dimensions: 530mm( L) * 247mm( W) * 380mm( H)
Net weight: 60kg
Compliance: CE Certified
Warranty: One year
Application Notes:
1,The CY-HRP-1A roller is specially designed for battery R&D in terms of its advantages as affordable, compact and precise. Please strictly follow the instructions to operate
2,Must use acetone to clean rollers' surface after each use
3,Never rolling material with hardness> 50HRC
4,If the machine will be idle for a long period of time, please apply anti-rust lubricant on the rollers
5,The minimum thickness of the rolled sheet should depend on the physical property of the material
