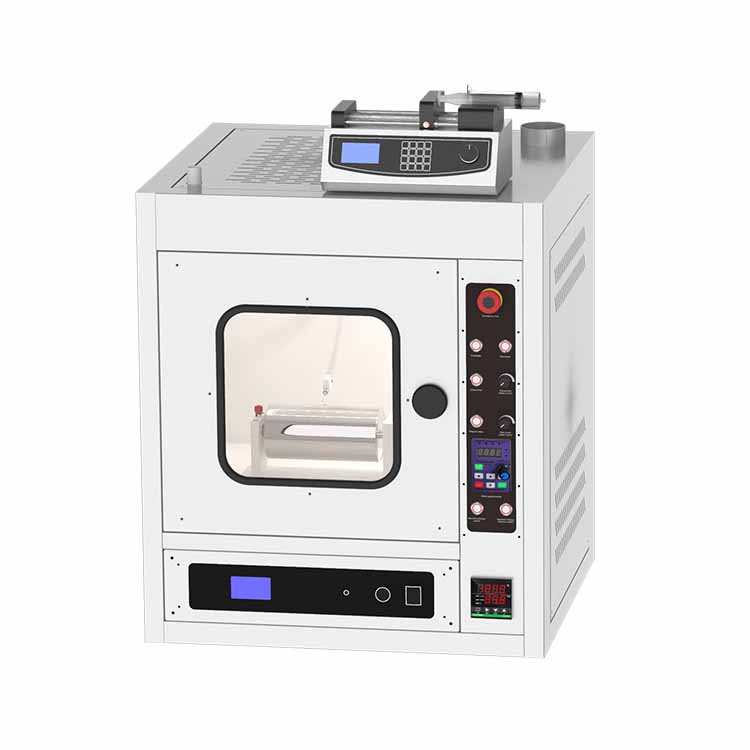

High-voltage electrospinning machine is mainly composed of four parts: liquid supply device, spinning head, high voltage power supply and collecting device.The liquid supply device adopts a professional scientific research syringe pump, which can provide continuous and stable flow of liquid, and the liquid supply speed can be adjusted to meet the needs of different types of spinning solutions.
The spinning head has multiple nozzles and the number of nozzles is optional. The bracket can be adjusted to obtain the best spinning distance and non-woven fabric with different width. The high-voltage power supply can provide long-term stable electric field and the electric field strength for electrospinning is 0-30kV.
Equipped with three sets of collecting devices, including a set of six sizes of mandrel collectors for electrospinning; a plate collector for nanofiber collection; and a set of XY-axis movable plate collectors for the preparation of film.
Compared with the traditional laboratory electrospinning equipment, the whole set of instruments has more outstanding integrity, controllability and consistency, and is safe, efficient and highly integrated.
High-voltage electrospinning machine application:
It can be used in the spinning of a variety of natural or artificial polymeric materials. The films and nanofiber prepared can be used for research and production in various fields such as filtration separation, biomedicine, new energy, and electronic information.
High-voltage electrospinning machine technical parameters:
Item | Detail |
Supply voltage | AC220V，50Hz |
Total power | 2.5KW |
High voltage power supply | Input voltage | 0-30kV |
Max current | 0.5mA |
Heating source | Heating method | Infrared heating tube |
Max temperature | Substrate temperatures up to 60℃ |
Max heating power | 1000W |
Syringe pump | Syringe capacity | 2.5ml~60ml |
Flow range | 2.779μl/min~72.24ml/min |
Collector | Mandrel collector | Six sets with various size: 200mm × φ100, 25, 12, 7, 6.0, 2.0mm; Actuator: brushless motor; mandrel shaft speed: 300-4000 rpm; used for electrospinning |
Plate collector | Dimensions: 320mm ×100mm × 2mm; Material: Stainless steel; for nanowire collection |
Y-axis movable plate collector | Dimensions: 300mm × 200mm × 5mm; Material: Stainless steel; used to prepare film, computer program to control the way of moving |
