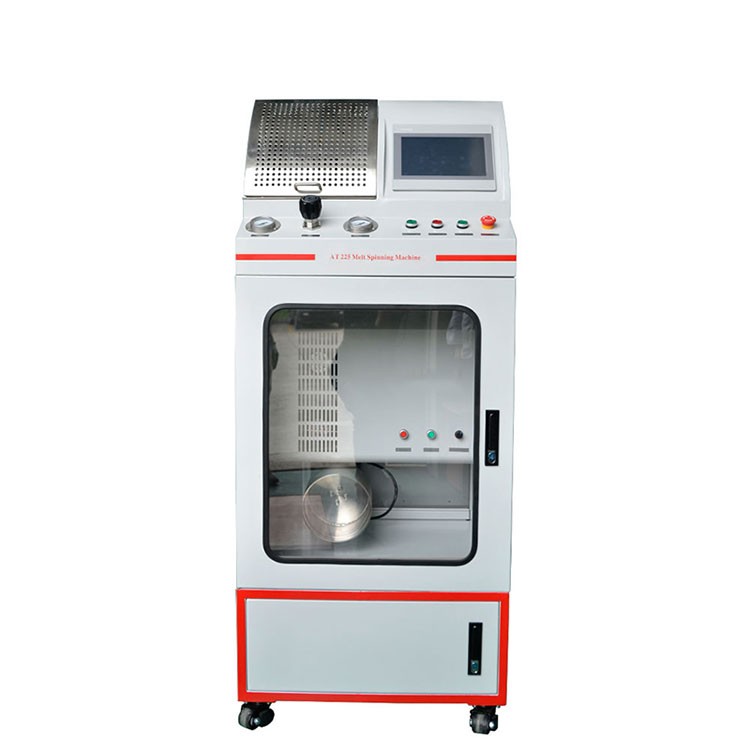

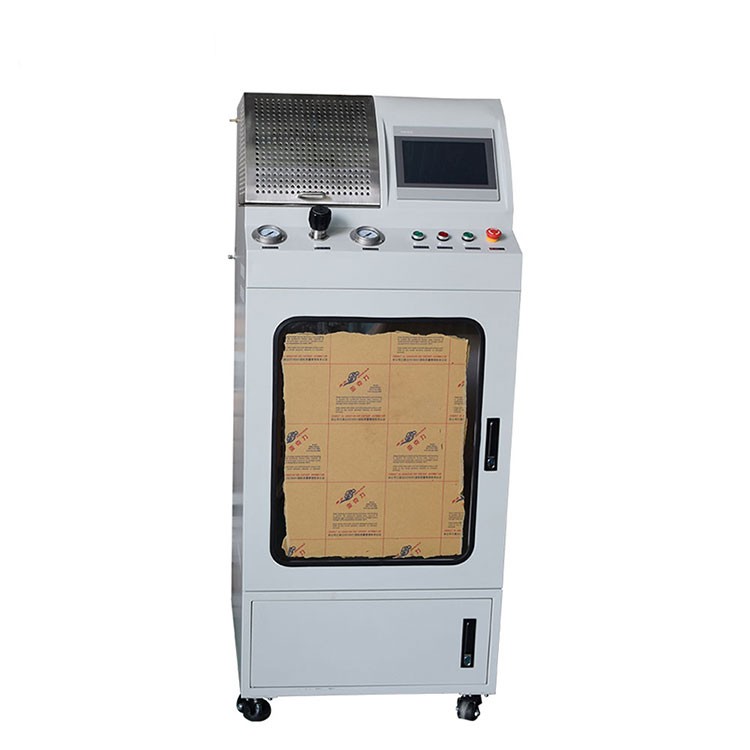

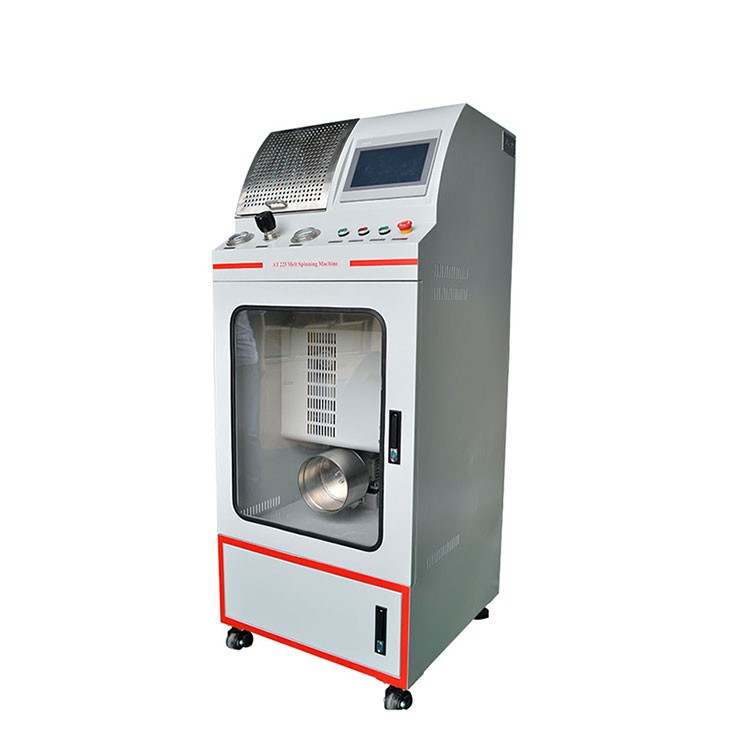

lab scale polyester melt spinning small machine

Pressure range

Design pressure: 3.6MPa

Input pressure: ≤13MPa, Output   pressure: ≤1.6MPa,

accuracy: ±0.01MPa

Temperature range

450℃ max.

Temperature accuracy

±0.5℃

Heating mode

Two sections of heating furnace,   Mullite fiber insulation

Temperature control mode

Two pieces of temperature controller,   high precision of ±0.5℃

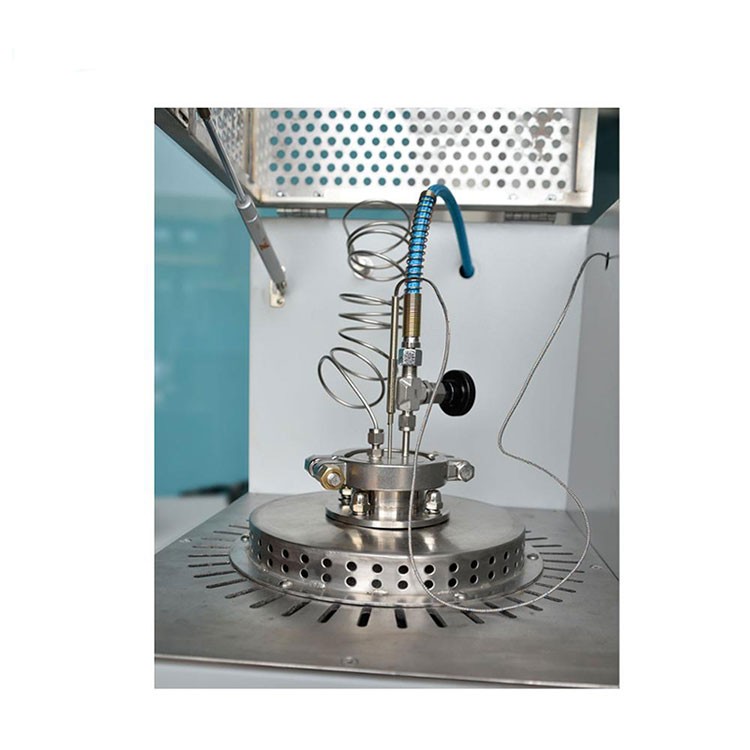

Feed cylinder

150ml, stainless steel, with soaking   distribution device

Spinneret plate

Dia. 0.2, 0.3, 0.4, 0.5 optional
  L: D: 2:1~3:1 optional
  kinds of hole optional
  (please specify before order)

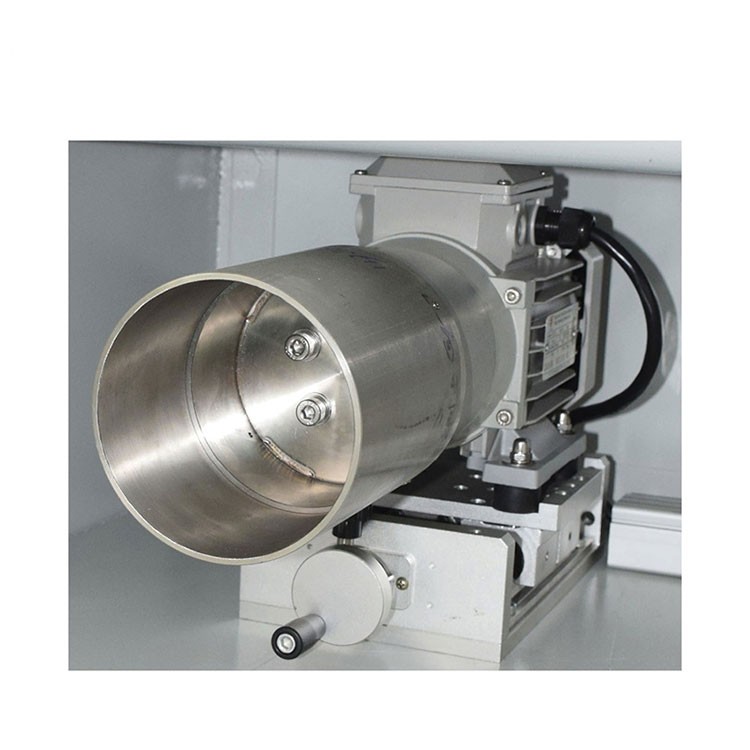

 Rotary head

Friction driven rotary head

Speed range

0~1400 RPM
