Nano fiber electrospinning unit with horizontal and vertical spinning

Item

Detail

Specifications

High Voltage Power Supply

CY-NFES-040 comes with high voltage power supply. It has 0 - 30kV output voltage range with a maximum current capacity of 0.5mA. Output voltage and current can be set using front panel knobs and readout from the digital panel meters.

1.0 - 30kV Single Output, 0.5mA max Current

2.Digital Voltmeter and Current meter

3.Static Removal Device - Shorting Stick

4. Constant current / Constant Voltage mode of operation

5.Built-in ARC Circuit Protection

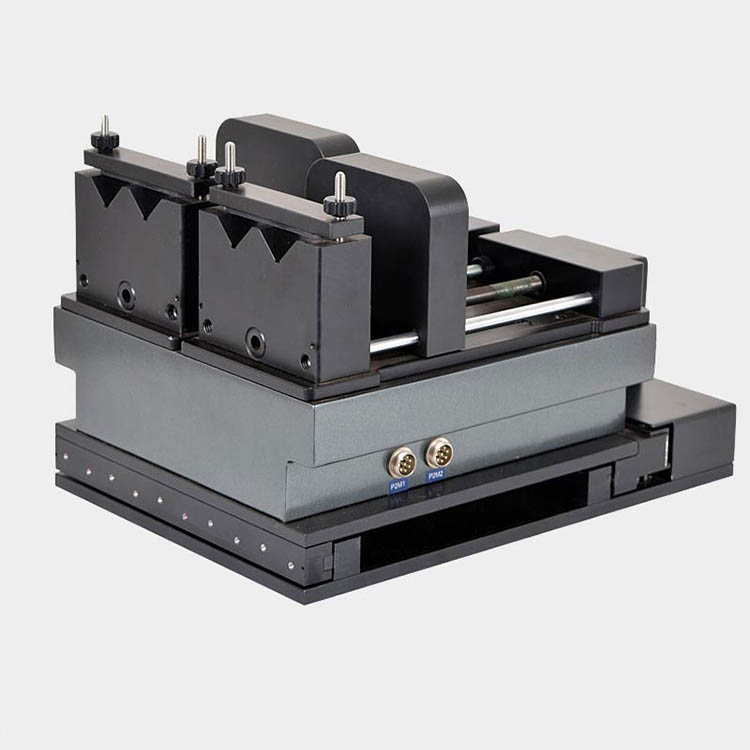

Independently Controlled Dual Channel Syringe Pump

CY’S CY-SPLF4 model syringe pump provides independent control of two dual channel syringe pumps. The speed and flow rate can be changed on both to achieve custom fabrications of fibers.

The Syringe pump also can be moved to and fro in X axis. The   maximum travel distance is 200mm. The movement is controlled via PC.

It can operate with standard off-the-shelf syringes made of plastic, glass or stainless steel. The microprocessor based control circuit can render a flow rate of 0.4 µl/hr to 650 ml/hr (with 5ml Syringe). The syringe diameter, spin duration or the target volume can be set by the user through the ElectroSpinner software interface.

1.To dispense from standard disposable or glass syringes from 2.5 to 60ml

2. Syringe holder made of insulating material to work under high voltage conditions

3.Motor control through microcontroller to control and indicate flow rate

4.Four syringe dispensing system

5.PC based control with documentation of parameters like syringe diameter, flow rate, spray duration etc.

6.Manual height adjustment platform to vary the pump height according to the target height.

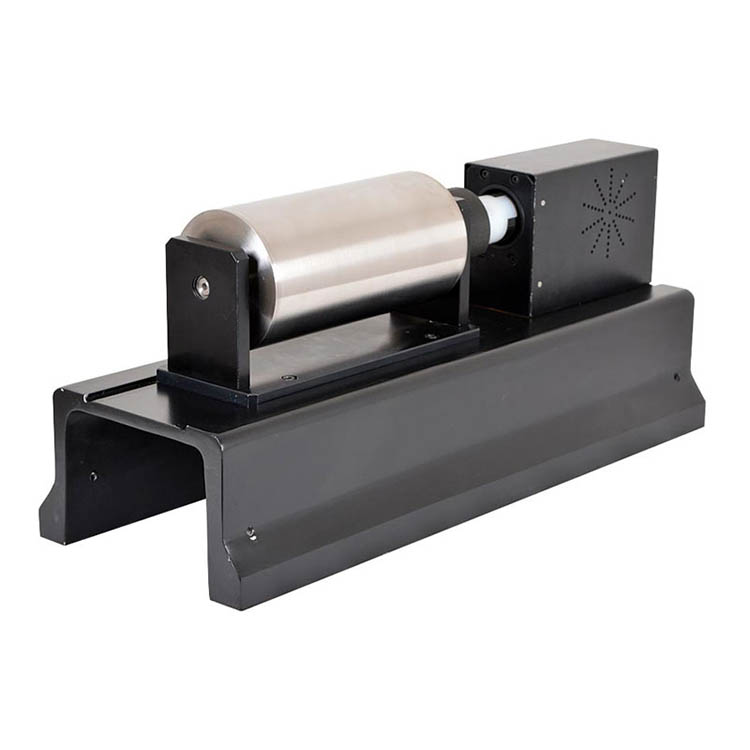

Rotating Mandrel

Rotating mandrels which comes with the electrospinning unit can be used as a target to get an aligned continuous mesh of nanofiber. It has a speed range of 300rpm to 4000rpm suitable for electrospinning. Grounding of the mandrel to the HV power supply is attained through a carbon brush contact. The rotating mandrel has a speed stability of +/- 1%. CYKY’s CY-RM-01 is a high speed rotating mandrel assembly which works with CY-MN series mandrels of 2mm to 100mm diameter and is of 200mm length. No. of mandrels supplied are 100mm, 75mm, 50mm, 25mm, 15mm, 12mm, 6mm, 4mm, 2mm.

1.Stainless steel drums of different sizes

2.Rotational Speed: 300 - 4000 rpm

3.Grounding facility: Available

4.Actuator: Microprocessor controlled BLDCmotor with hall sensor   feedback

5.Speed stability: +/- 1%

6.PC based control with documentation of speed and duration

Stationary Target

This collector can be used as Stationary target.

The stationary target which acts as a collector of electro spun nanofibers, is made of stainless steel plate such that it can be held vertically on a table top. It also has connector for grounding.

1.Plate Dimension 200*200, 200 *100, 100 *100, 75 *75 mm

2.Plate Material: Stainless Steel

3.Grounding Facility: Available

Spinneret

a. Needle Spinneret

The Flat tipped metal needles are provided for the easy flow of the nano fibers. The high voltage is connected to the tip of the needle using metal clips.

b. Co axial Spinneret

The Coaxial spinneret provides simultaneous flow of two different   solutions. This helps to produce Hollow nanofibers and Core / Sheath   nanofibers.

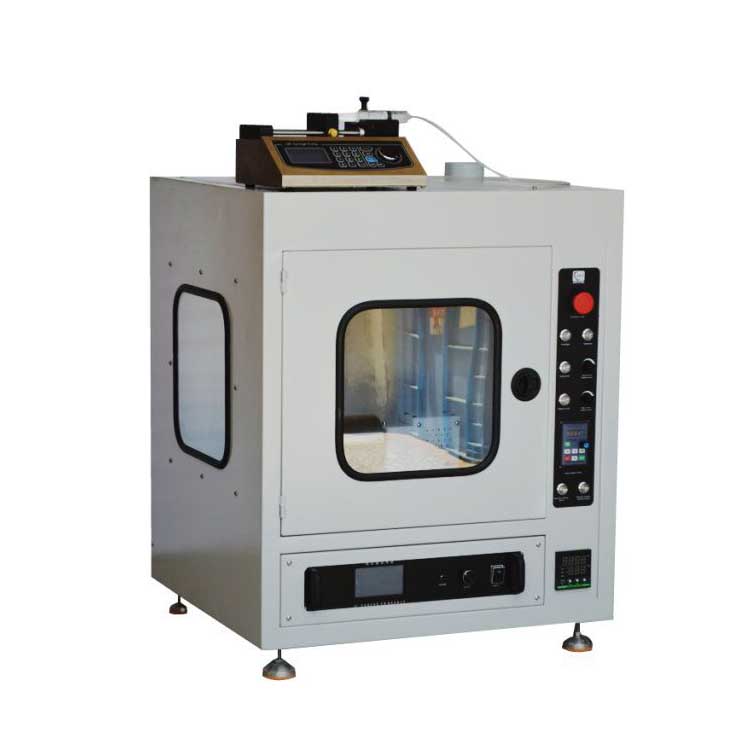

Fume Hood

CYKY’s CY-FH-04 model fume hood provides an enclosed atmosphere for electrospinning. An enclosed chamber is necessary to protect the user from pollutant air caused by solvent evaporation during the process. It comes with an exhaust fan attached or optionally with a duct of custom dimension so that it can be connected to an exhaust duct available onsite.

CYKY’s Fume Hood also has an option for in-built heater capable to provide a temperature up to 45℃. An independent PID controller ensures precise control of temperature. A common electronic control unit for all the devices   in the electrospinning system is integrated within the hood.

The fume Hood has transparent side walls and front door shield made of float glass. This ensures good visibility of the process. High intensity light from the optional halogen lamp illuminates the nanofibers being spun on its way to the target. The table top is made of granite which makes the cleaning process easy.

1.Standalone unit with in-built power supply and wiring for the heater, lighting and exhaust

2.Transparent glass windows on three sides for easily monitoring the electrospinning process

3.Foot print:1000mm*800mm*1672 mm

4.Construction Material: Stainless Steel, Aluminium & Glass

5.Epoxy coated for electrical insulation

6.Ambient to 40℃ temperature   control

7.Exhaust fan ventilation at the top of the hood which can be connected to an exhaust outlet available at the customer facility.
