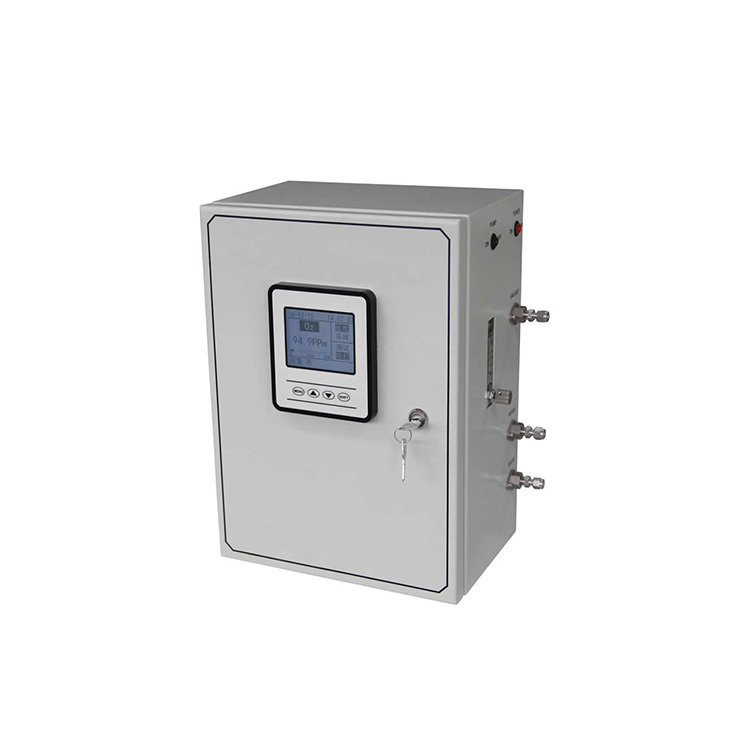

Wall-mount oxygen analyzer adopts a unique protection air circuit which can protect the sensor efficiently and prevent the sensor from being exposed in the air for too long to affect its serving life. The imported micro-fuel cell oxygen sensor is with long serving life, a rapid response speed, high measured accuracy and long calibration period for features, etc.
Wall-mount oxygen analyzer main features:
1. Only one random point needs to be calibrated among the whole measurement range, and the measured accuracy among the whole measurement range can be met without multi-points calibration;
2. Function of built-in temperature compensation could eliminate the influence from the changes of environment temperature on the measured accuracy;
3. Function of storing data automatically makes looking through historical data at any time possible;
4. Function of shifting Chinese-English menu makes the operation visual and easy;
5. Auto reverse blow function (optional) prevents the pollutant like dust in the sampling gas from blocking the sampling pipe (especially the filter);
6. Built-in imported extraction pump (optional).
Wall-mount oxygen analyzer technical parameters:
Test principle | micro-fuel cell |
Display mode | 320×240 matrix dot LCD |
Test Range | 0 ~ 10/100/1000ppm,1.00%,25.00% O2 |
Accuracy | 0 ~ 1000ppm /1.00%/10.00% /25.00% ≤±1% FS 0 ~ 100ppm ≤±2% FS 0 ~ 10ppm ≤±5%FS |
Resolution | 0.1ppm |
Repeatability | ≤±1% |
Response time | T90≤60S |
Analog output | 4~20mA.DC (non-isolated output, loaded resistance lower than 500 Ohm) 0~5V.DC (non-isolated output, loaded resistance higher than 10k Ohm) 1 way programmable alarm output (Dry contact type, maximum load 220VAC/2A) |
Power supply | AC170 ~ 264V 50/60HZ |
Temperature of the sample gas | 0 ~ 50℃ |
Sampling mode | Sample gas pass-in or extraction |
Sample gas flow | 600 ~ 800ml/min |
Working pressure(without pump) | 0.05Mpa≤entrance displayed pressure≤0.35Mpa, steady pressure environment |
Working pressure(with pump) | micro positive pressure, micro negative pressure or ordinary pressure |
Background gas | He, H2, CO2, N2 and inactive gas |
Appearance Size | 400mm×300mm×200mm（H×W×D） |
Serving life | ＞24 months(under normal use) |
Gas circuit port | NPT 1/8 internal thread |
Install mode | wall mount |
