18kW microwave generator at 2450 MHz

    CYKY GLP range of microwave generators provide continuous wave (CW) output power adjustable from 5 to 18 kW or 5 to 36 kW

CYKY GLP range of microwave generators provide continuous wave (CW) output power adjustable from 5 to 18 kW or 5 to 36 kW..

High reliability for your applications:

Stable power output, even at low power

Designed for long processes

Precise frequency spectrum

Low ripple

Automatic Restart Function (ARF)

Extended magnetron lifetime

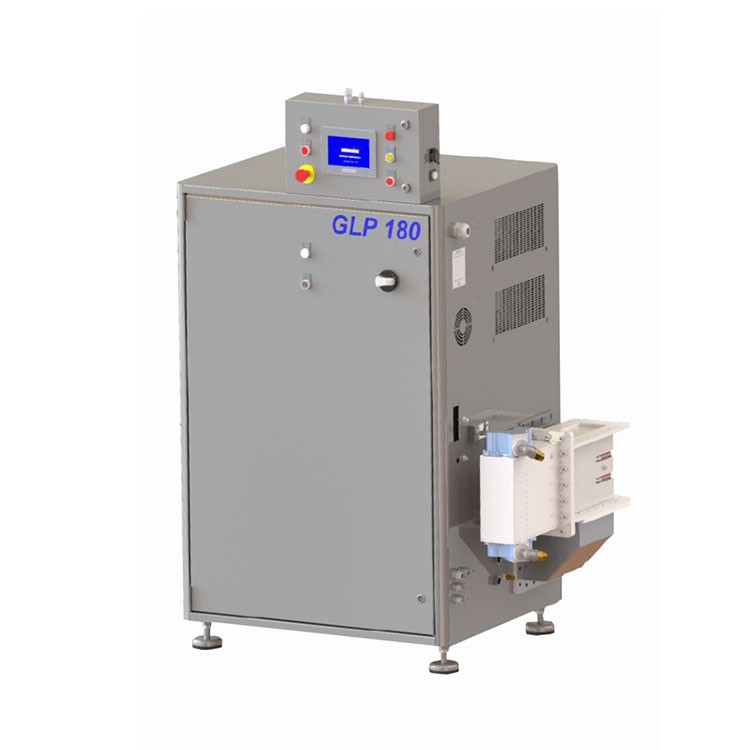

The GLP is a continuous wave microwave generator

composed of a single cabinet with a switch mode power

supplies and a magnetron. For a better efficiency, a PLC

controller drives simultaneously the magnetron anodic

power, electromagnet field and filament current.

The result is a very low power setting possibility (5 kW

by default, lower power setting optional), maximum

efficiency, reduced ripple and increased magnetron life

time.

MAIN APPLICATIONS

INDUSTRIAL APPLICATIONS

Industrial heating: liquids, essential oils, wood,

rubbers, thermoplastics, biomass …

Industrial drying: ceramics, powders …

PLASMA APPLICATIONS

Lab-grown mono and polycrystalline diamonds

Various plasma generation applications: PECVD, gasification, gas abatement

KEY BENEFITS

COMPACT AND STURDY DESIGN

All-in-one design: controls, power supply, microwave generator, isolator, in the same cabinet

Stainless steel 304L cabinet

HIGH RELIABILITY

Switch mode allows to get a very precise control of the power

Automatic Restart Function (ARF), in less than 100 ms, to avoid production stop or loss1

Smart controls that allow maximum efficiency and extended magnetron lifetime

Narrow frequency spectrum compatible with resonant cavity design

CONTROLS

All operational parameters and faults are available on the color touch screen
