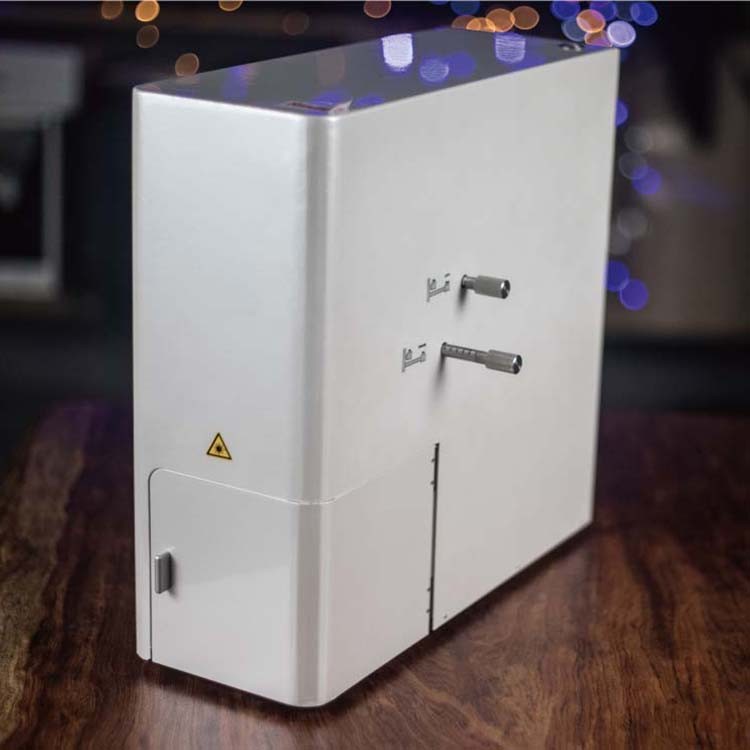

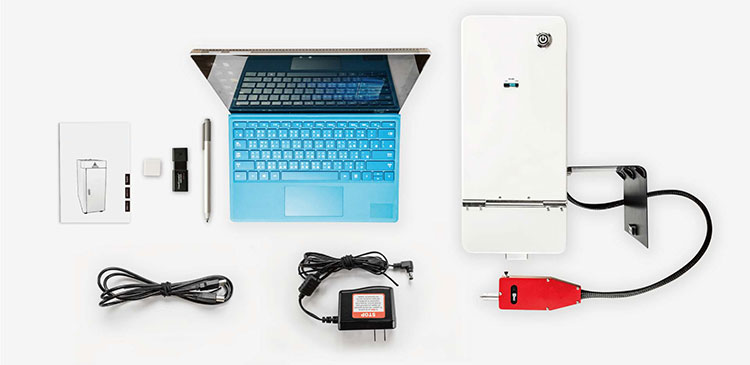

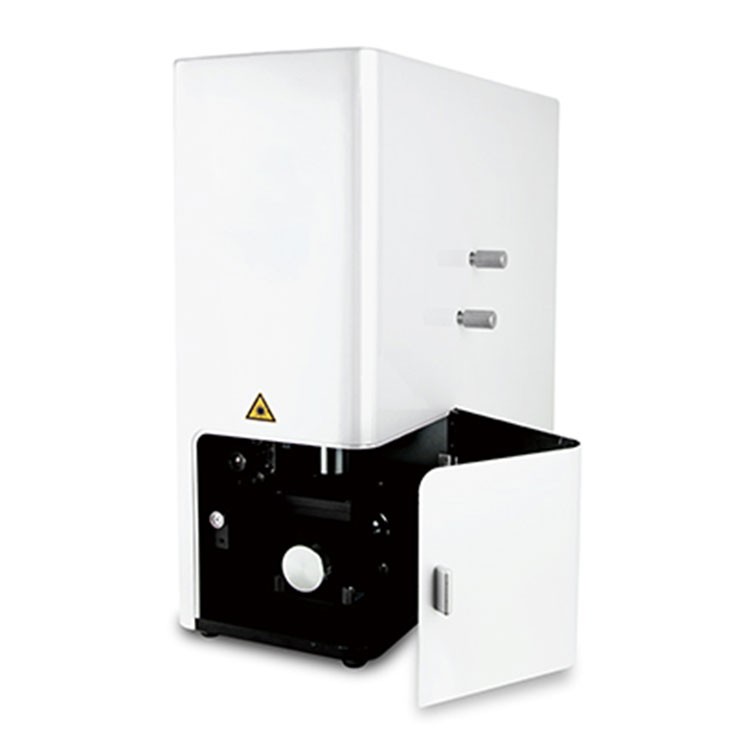

CYKY ProTT-EZ Raman is a dual-wavelength Raman instrument that combines NIR and Visible excitation lasers in one portable package, which is suitable for laboratory and field analysis, and can be applied to various types of the detected specimens. It features the best performance in measuring probe, which can acquire both Raman signals and florescence signals with the excellent signal-to-noise rate in a limited time, and can be used for database searching and analyzing.
CYKY ProTT-EZ Raman is a dual-wavelength Raman instrument that combines NIR and Visible excitation lasers in one portable package, which is suitable for laboratory and field analysis, and can be applied to various types of the detected specimens. It features the best performance in measuring probe, which can acquire both Raman signals and florescence signals with the excellent signal-to-noise rate in a limited time, and can be used for database searching and analyzing.
hesive strength
• Quick hardening
• Easy to be debonded by hot water without using solvent or oven
• Easy to be blended (Weight Ratio A : B = 2 : 1)
• Good for large area mounting
• Non-flammability, no disgusting smell
• Customization is available upon request
Gem Professor | ||
Excitation Source | ||
Wavelenghth | 785nm/ 532nm Laser | |
Output Power | < 350mw/ < 200mw | |
Power Stability | < 5%/ < 5% | |
Spectrometer | ||
Detector Type | Response Enhanced Linear CCD Array | |
Detector Pixel Format | 2048 x 1 Elements | |
Pixel Resolution | ~2 cm-1 Per Pixel/ ~3 cm-1 Per Pixel | |
Camera System | Optional | |
System Software | ||
Control & Data Collection | ||
Database Search | ||
Others | ||
Operating Temp. | Room Temperature | |
Dimension | W170xD370xH390mm | |
Working Voltage | 100~240v | |
Warranty | 1 Year | |
Optional Part | Computer |
