Two zones CSS furnace with rotating wafer holder

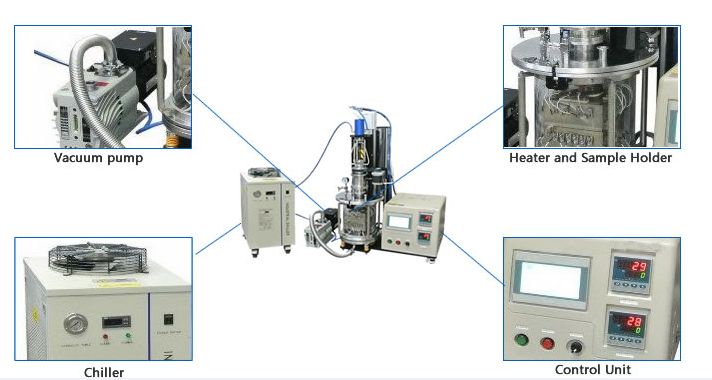

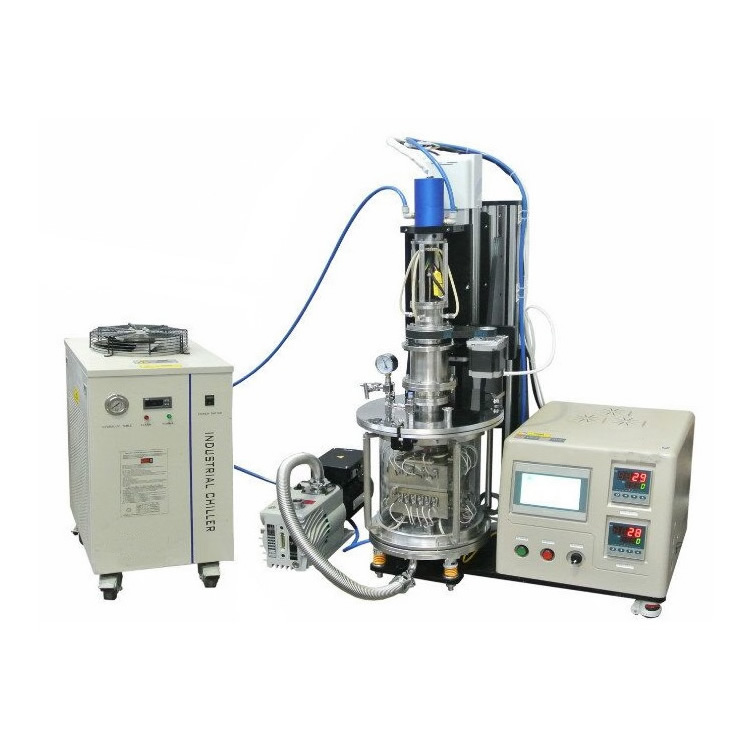

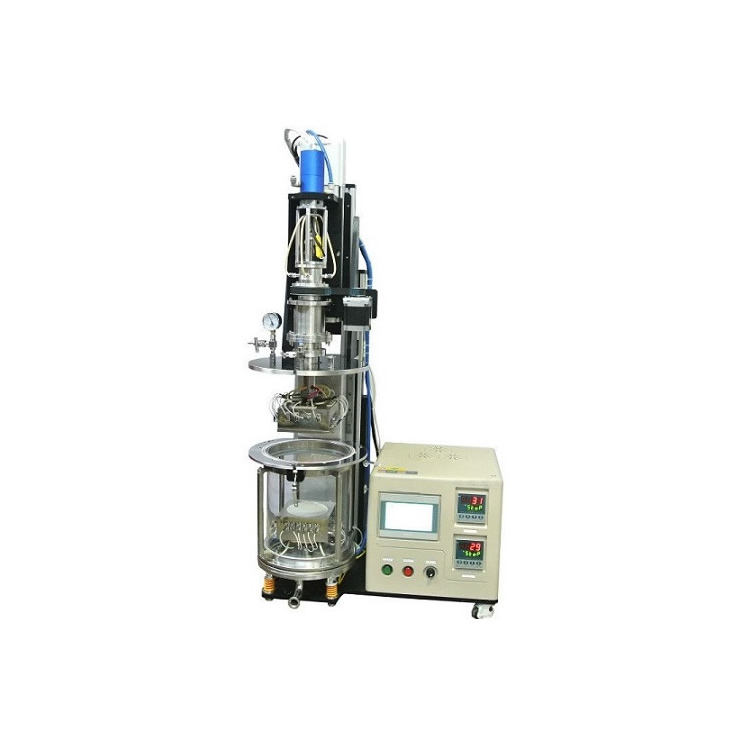

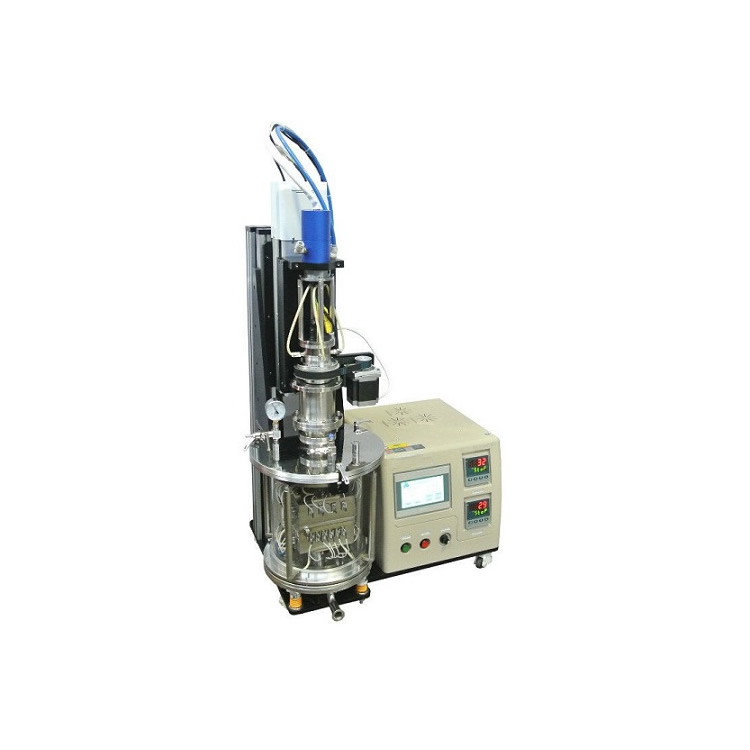

    Two zones CSS furnace with rotating wafer holder is an advanced rapid thermal processing furnace with 11" OD quartz chamber and 5"×5" rotating sample holder. It is designed for CSS (Close Spaced Sublimation) film coating up to 5" circular or square wafer samples at working temperature of 800°C Max.

Two zones CSS furnace with rotating wafer holder is heated by two group of halogen heaters (Top and Bottom) separately with max. 10ºC/s heating rate. The top sample holder is rotatable to achieve high uniformity coating. It is an excellent tool to research new generation thin film for solar cells, such as CdTe, Sulfide, and Perovskite solar cell.

CSS furnace

Two zones CSS furnace with rotating wafer holder specifications:

Furnace structure

  • Furnace, two temperature controllers, two-channel gas flowmeters are integrated into a mobile aluminum alloy frame.

  • The chamber is made of high purity fused quartz tube with dimesion of 11" OD/10.8" ID×9" H.

  • The vacuum flanges are made of Stainless Steel 316 and lifting by electric motor.

  • Two 5"×5" IR heating plates and the spacing are adjustable .

  • Top sample holder is rotatable at the speed 0-7 RPM.

Vacuum Flanges

  • Top Flange with one KFD-25 vacuum port and one gas outlet (1/4" pipe required) can slide up or down manually to load and unload substrate and evaporated material easily.

  • Bottom flange has one KFD-25 vacuum port with one gas nlet (1/4" pipe required) with needle valves.

  • The flange is sealed by double silicone o-rings and can achieve max. the vacuum pressure of 10E-2 Torr by a quality mechanical pump and 10E-5 Torr by a molecular pump (vacuum pump is not included, please order separately).

  • One digital vacuum gauge is installed on the top flange.

  • Precision anti-corrosion digital vacuum gauge is in standard package

Heater and Sample Holder

  • Two independently controlled heaters with manually adjustable gap from 2 - 30 mm.

  • 20 pcs Halogen lamps are used as the heating element for rapid thermal processing.

  • Heaters are made of stainless steel with water cold jacket to reduce heat radiation and are capable of fast cooling.

  • 5" Dia. the circular wafer holder is built into the top heater for holding the substrate.

  • One set of high thermal-conductive AlN plates (5" Dia.×0.5mm Thick) are included (place on the back of        the substrate to make it heat uniformly).

  • A 58L/min circulating water chiller is included for saving water source.

  • Top sample holder is rotatable at adjustable speed  0-7 RPM

Temperature   Controller



  • Two precision digital temperature controllers with 30 segments programmable offer independent controlling  of top and bottom heaters.

  • Each controller has a PID autotune function to protect heaters from overshooting and an alarm function to prevent overheating from damaging the thermal couples.

  • PC communication interface & software are installed for recording temperature profile.

Working Temperature

Maximum temperature for each heater: ≤ 800ºC.

Maximum temperature difference between two heaters: ≤ 300 depends on the spacing between two heaters:

Ÿ     Spacing 30mm Max. temp difference: 315 heating bottom only

Heating & Cooling Rate

Heating: < 8/s ( heating single heater only)

Cooling: < 10/s (600 - 100) Max.

Thermal Couple

Two K-type thermal couples are installed on top and bottom heaters separately.

Working Voltage

 208 - 240VAC, single phase, 50A air breaker

Power Requirement

 10 KW  total

Warranty

One year limited with lifetime support (Consumable parts such as quartz tube and heating lamps are not covered by the warranty).

Application Notes

The tube furnaces with quartz tube are designed   for using under vacuum and low pressure < 0.2 bars / 3 psi / 0.02 Mpa. Vacuum pressures may only be safely used up to 1000°C. The flow rate for   gasses should be limited to < 200 SCCM (or 200 ml/min) for reducing   thermal shocks to the tube.
