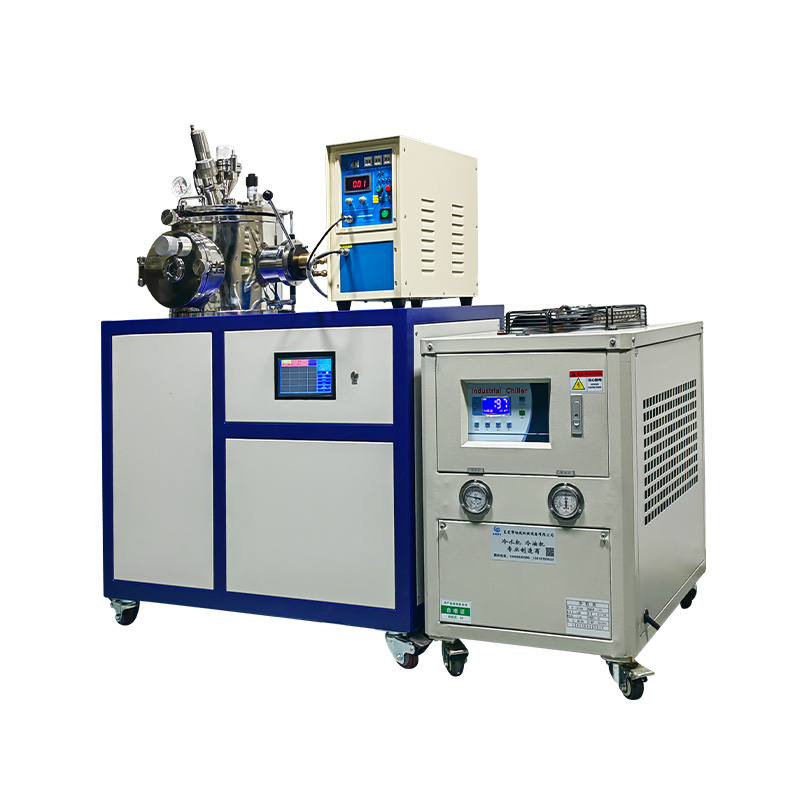

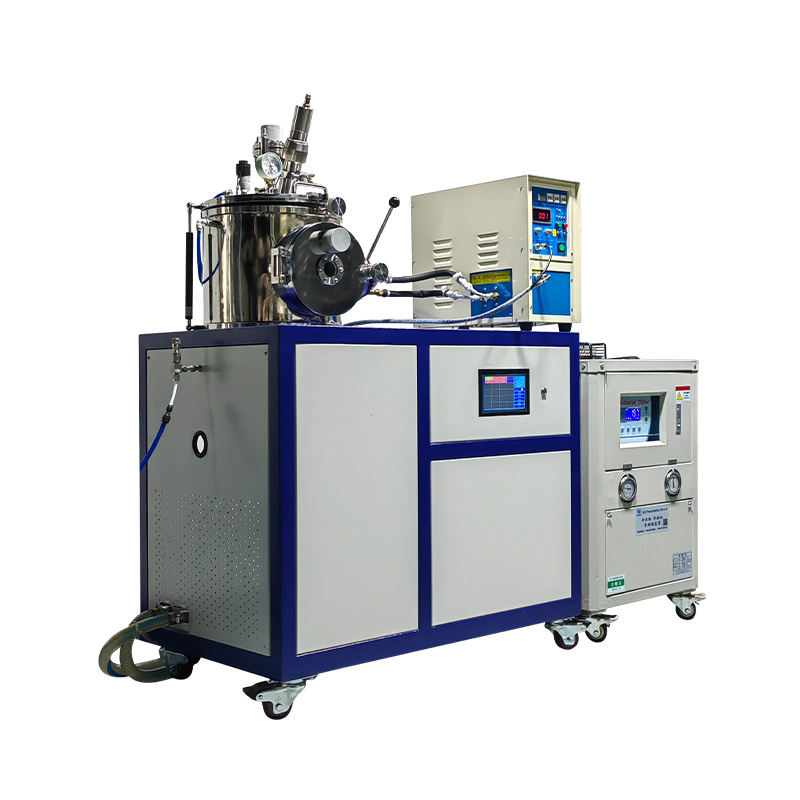

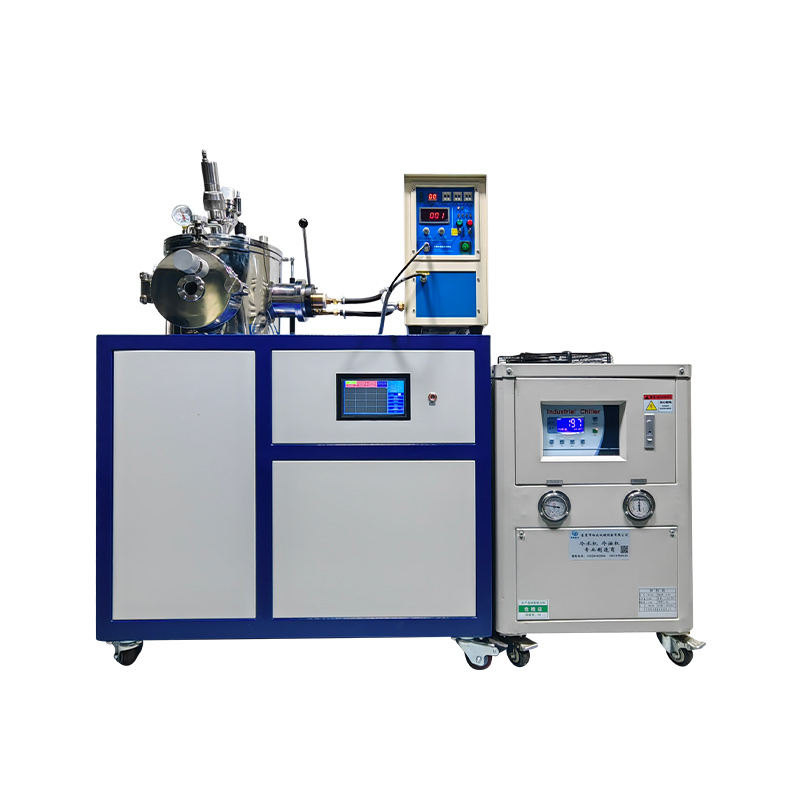

This product is a Vacuum Induction Melting Furnace, using induction heating, melting temperature can reach 2000℃.It adopts stainless steel water-cooled chamber with quartz observation window to observe the sample melting condition, which is suitable for metal sample melting, heat treatment and phase diagram research.The equipment adopts high frequency induction power supply with maximum power of 25KW.The equipment adopts infrared temperature measurement, intelligent temperature controller to control the temperature, with overtemperature protection function, can accurately control the melting temperature.
Vacuum Induction Melting Furnace is equipped with high-performance two-stage rotary vane pump, which can pump the chamber to vacuum to protect the sample from oxidation. The equipment is also equipped with lifting platform and turnover handle, which is convenient for operators to cast and take out samples after smelting. The equipment is also equipped with a dumping device, which can dump the melted sample into the mold prepared in advance to make the required sample shape.
Vacuum Induction Melting Furnace has comprehensive functions, fast melting, easy to use, energy saving and environmental protection, and is very suitable for metal sample research in laboratory.
Vacuum Induction Melting Furnace Technical Parameter：
Model | CY-IV300-15KW-SS |
Product Name | Vacuum Induction Melting Furnace |
Power supply | Voltage: AC220V, power: 15kw |
Vacuum chamber | Material: 304 stainless steel Structure: vertical cylinder, front door Size:O.D.325x290 Quartz observation window:φ180mm The upper cover is equipped with a feeding port |
Casting system | The right side of the chamber is equipped with a dumping device, which can be poured after smelting Pouring mould size: φ 20mm x 50mm Mold type: water cooled copper mold |
Vacuum system | Two-stage rotary vane pump, pumping speed 1.1L/s Ultimate vacuum: 1 Pa |
Temperature control | Intelligent temperature control meter Over-temperature protection Temperature measurement: infrared optical temperature sensor, the maximum measurement temperature is 2100 ℃ |
Induction heating | Induction coil: inner diameter 60mm, height 80mm |
Intake port | φ10 pagoda head |
Air release valve | Manual |
Cooling system | Integrated water cooling pipeline design, φ12mm quick plug connector |
Water chiller | Refrigeration type , cooling capacity 2.8kW, flow rate 3m3/h |
Overall size | 900x700x1500(mm) |
