Product features:
1. Adopts DC brushless motor, single-chip microcomputer control
2. Different suction cups can be used according to the specifications of the sample, and the replacement is convenient and simple.
3. High-definition touch screen control, the controller and the glue machine are split, so that the glue machine can be in the glove box and the controller can be outside.
4. The motor adopts a 24V DC brushless motor, which has high reliability, strong adaptability, simple repair and maintenance, low noise, small vibration, smooth operation, fast and stable start-up, and smooth operation after acceleration, which can ensure the consistency and uniformity of the coating thickness.
5. Single-step and multi-step glue operation can be performed, five programs can be stored, and each program can be set to five steps
6. Fixed-point stop can be achieved, and the position of the carrier plate is fixed each time it stops, which is consistent with the last stop position, and can be used with the manipulator for repeated work
Spin coater technical parameters:

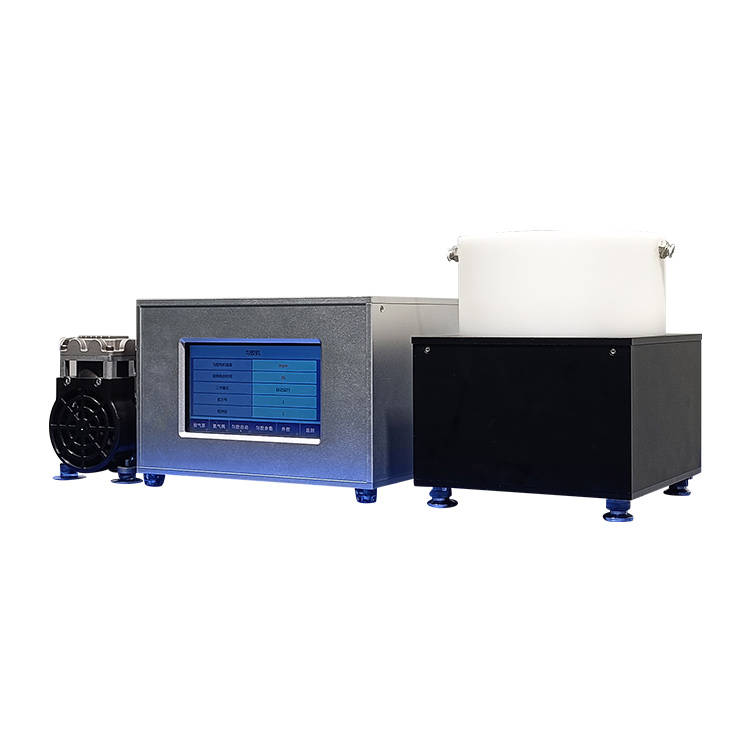

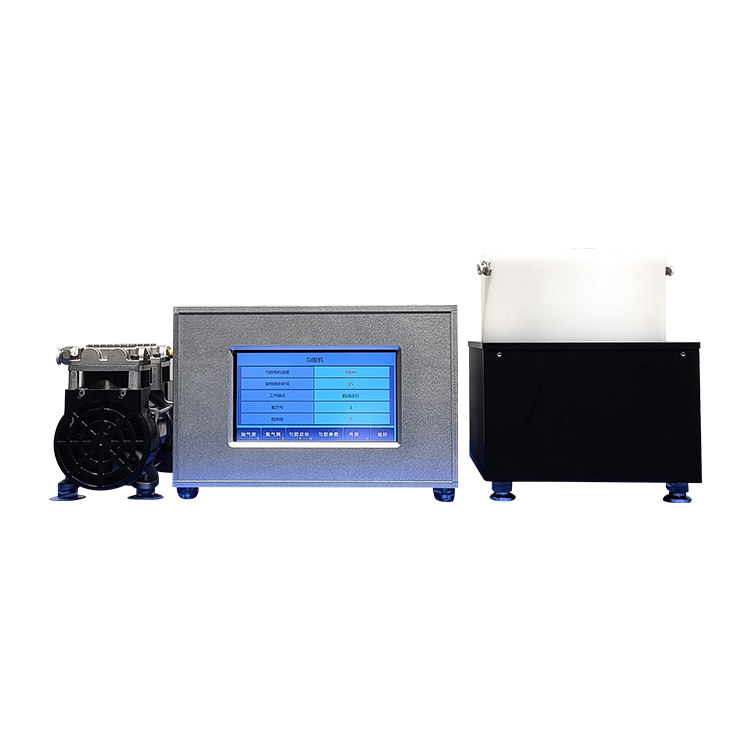

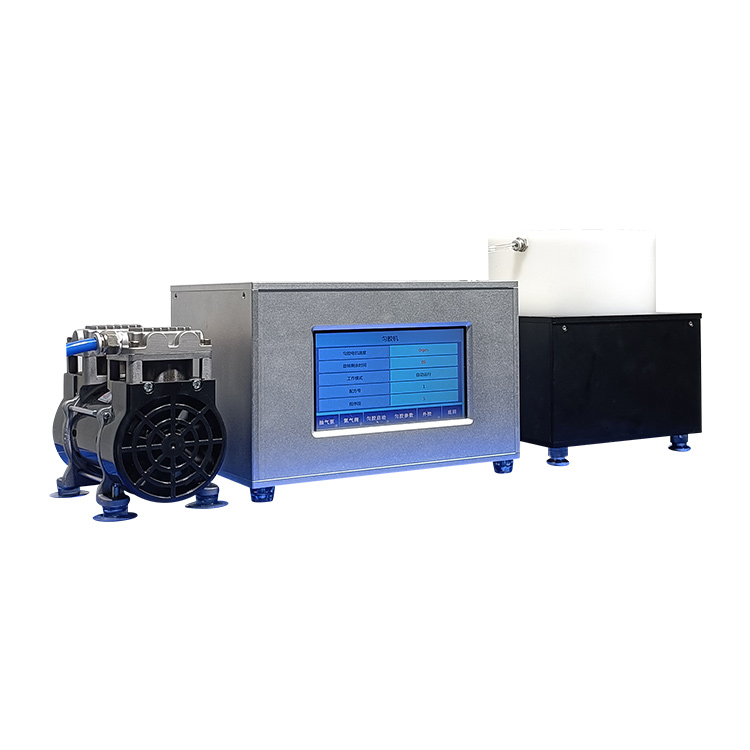

Product name | Tray Positioning Spin Coater |
Product model | CY-SPC8-D-PP |
Spin coater | Supply voltage | AC220V 50HZ |
Speed | 100-10000rpm |
Acceleration | 100-5000rpm/s |
Speed resolution | 1rpm |
Single-step time | 3000s |
Power | 400W |
Dimensions of the dispensing chamber | Φ190mm* 90mm |
Operation mode | 7-inch high-definition LCD touch screen |
Dispensing curve | Each curve has 5 segments, and a total of 5 curves can be stored |
Cavity material | PP engineering materials |
Carrying plate | Standard configuration is vacuum suction cup, and mechanical chuck can also be customized |
Fixed-point stop function | The position and angle of each stop of the carrier can be fixed, consistent with the last stop |
Exhaust system | Vacuum pump | Dry mechanical pump |
Evacuation rate | 1.1L/s |
Power supply | AC220V 50/60HZ |
