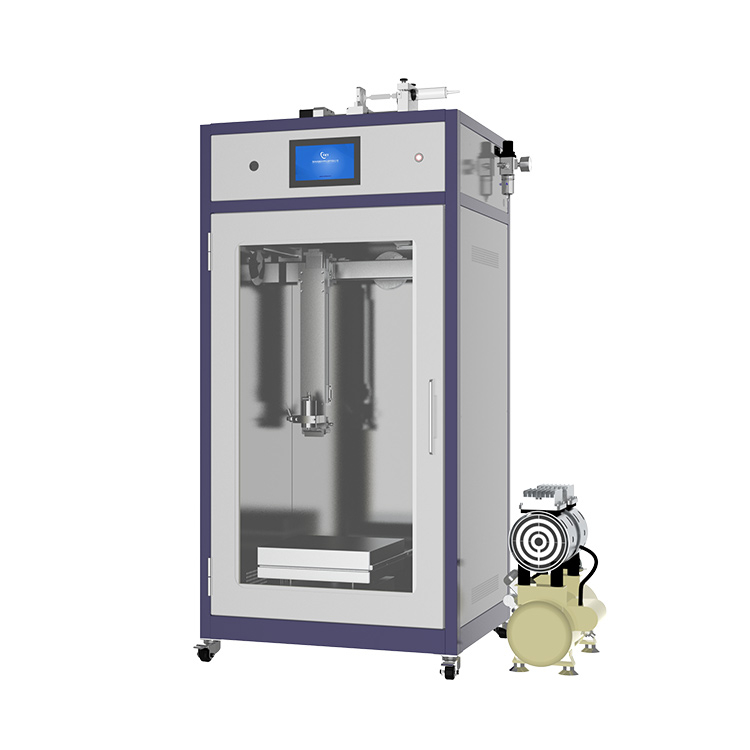

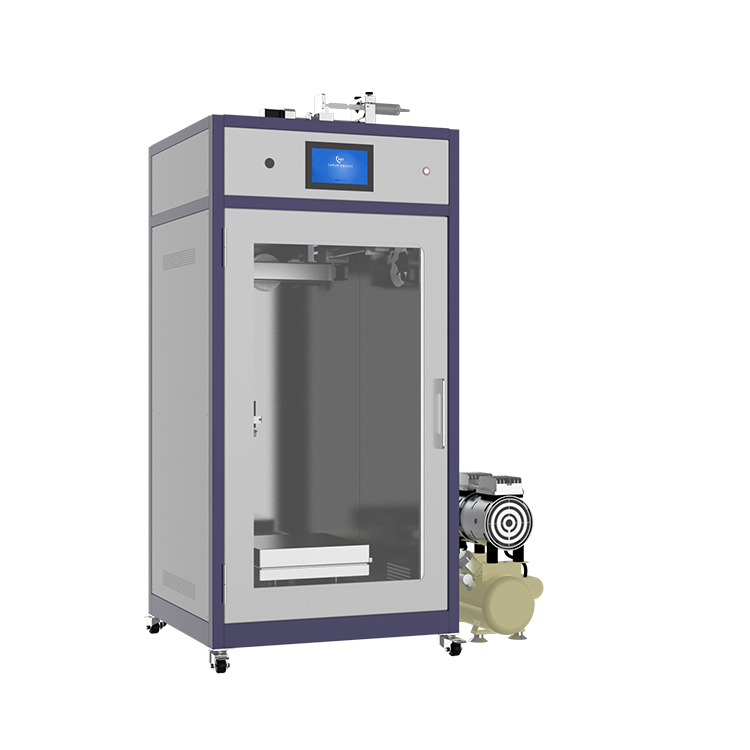

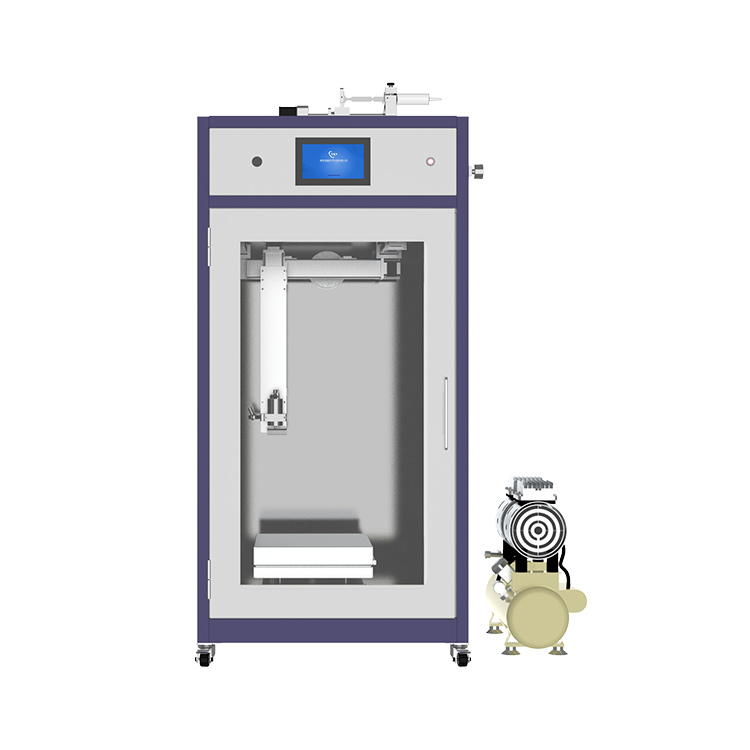

high temperature Automatic ultrasonic spray pyrolysis coater for Perovskite solar cells

    The spray pyrolysis film preparation method is to atomize the solution and spray it onto a heated substrate, and then obtain a desired material structure on the substrate. This equipment is an ultrasonic spray pyrolysis equipment independently developed by our company

The spray pyrolysis film preparation method is to atomize the solution and spray it onto a heated substrate, and then obtain a desired material structure on the substrate. This equipment is an ultrasonic spray pyrolysis equipment independently developed by our company. It is equipped with 40KHz 130W ultrasonic sprayer, PID temperature-controlled substrate heater plate, high precision peristaltic pump and precision programmable stepping motor moving mechanism. The integrated design of the device can accurately control the parameters such as the amount of solution, the speed of the spray particles and the size of the spray particles, and the substrate temperature can also be controlled to meet your various experimental needs.

Ultrasonic spray pyrolysis coater application range:

Product name

Automatic ultrasonic pyrolytic spraying

Product number

CY-TSC-250 X 250-T

Sample size

250mm*250mm

Deposited film

10cm*10cm FTO transparent electrode

Supply voltage

AC220V50/60Hz

Maximum power

3.5KW

Ultrasonic atomizer

50KHz 30W

Liquid viscosity

1-50mPa·scP

Nozzle stroke

X-Y axis Max 260mm

Velocity of movement

0-80mm/s (X-axis) 0-80mm/s(Y-axis)

Heat the substrate substrate

250mm X 250mm

Maximum temperature

500℃

Temperature control mode

AI-PID temperature control

Exhaust device

The equipment is provided with an exhaust device so that   the decomposed gas can be discharged from the exhaust outlet device

Injection method

High flow injection pump

Communication protocol

In Windows, the default communication port is RS485 or   RS232

Control mode

Automatic touch screen control

size

780x780x1500

weight

200KG
