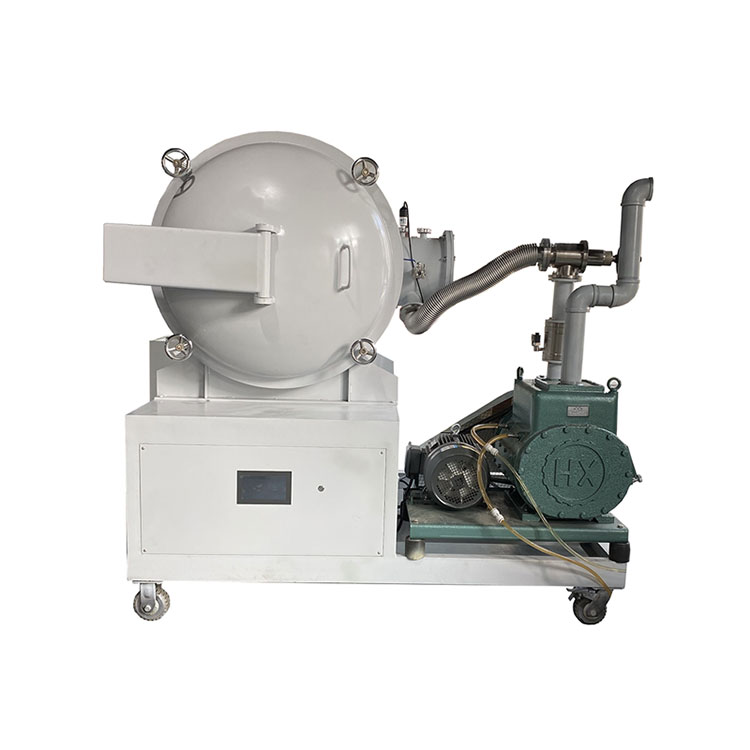

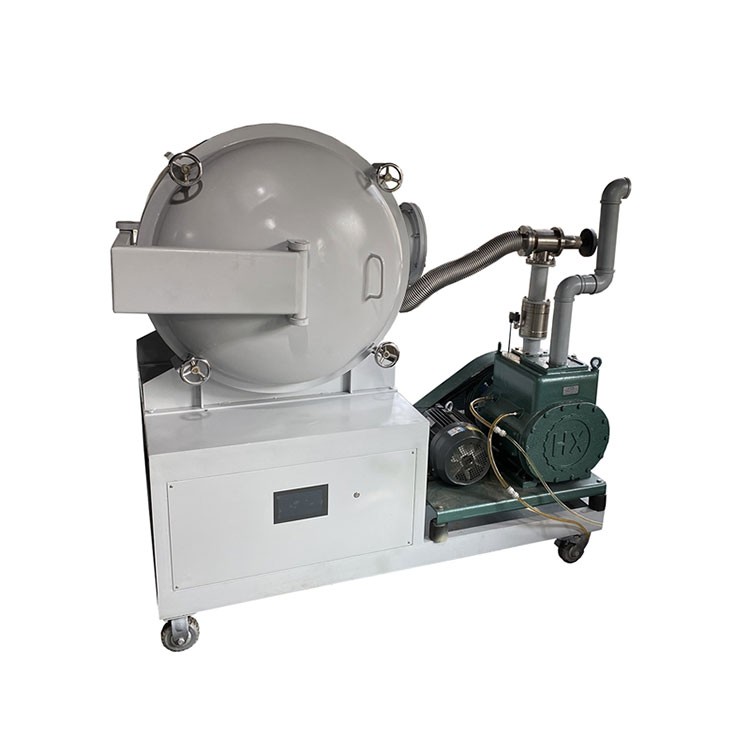

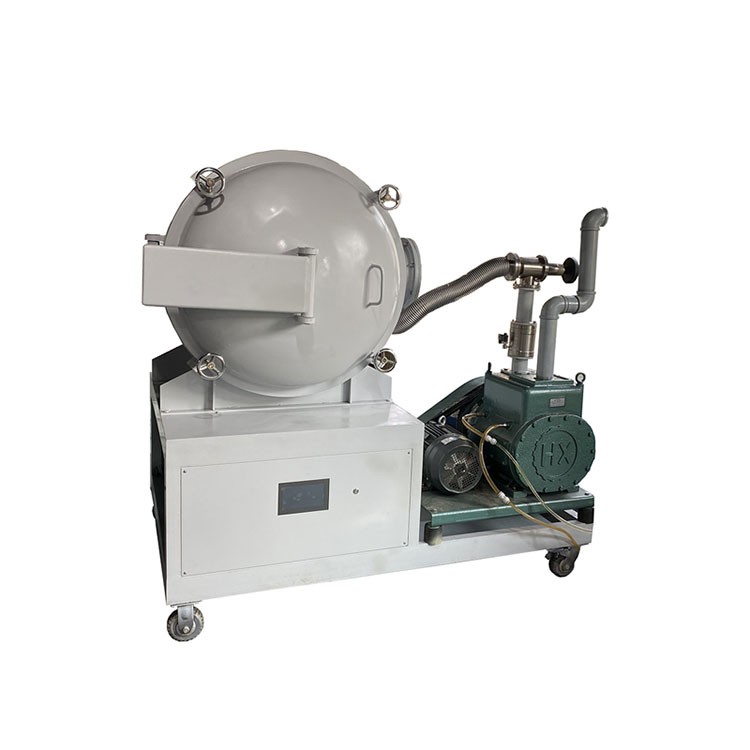

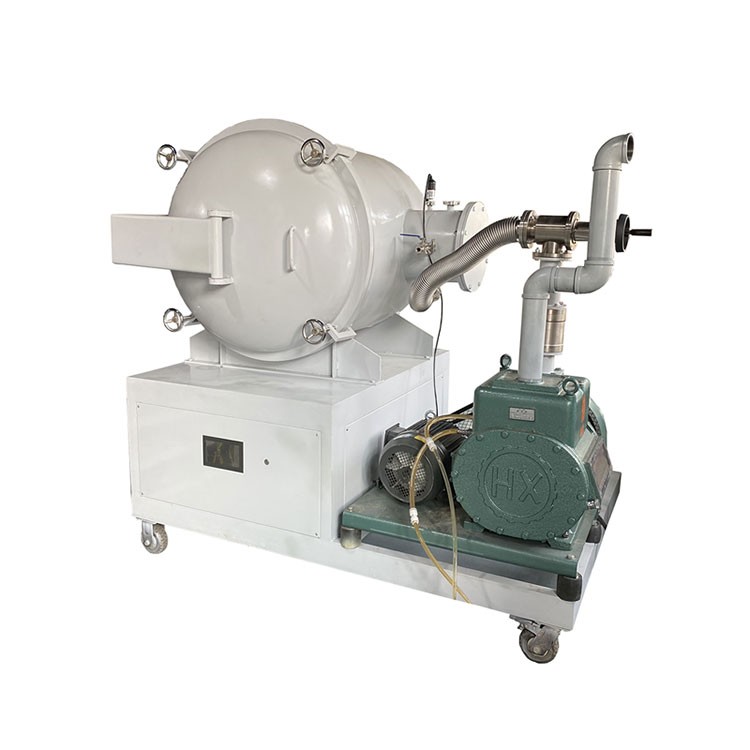

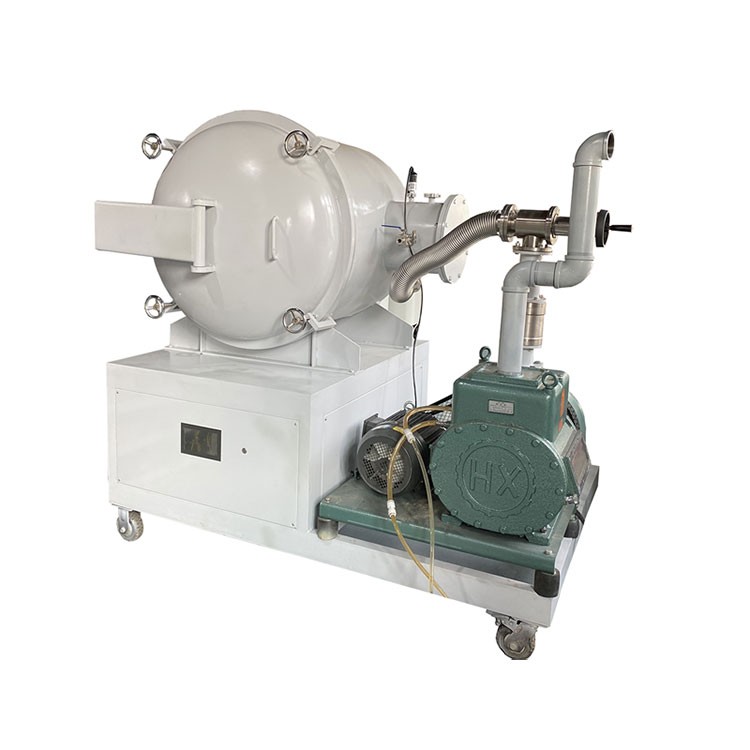

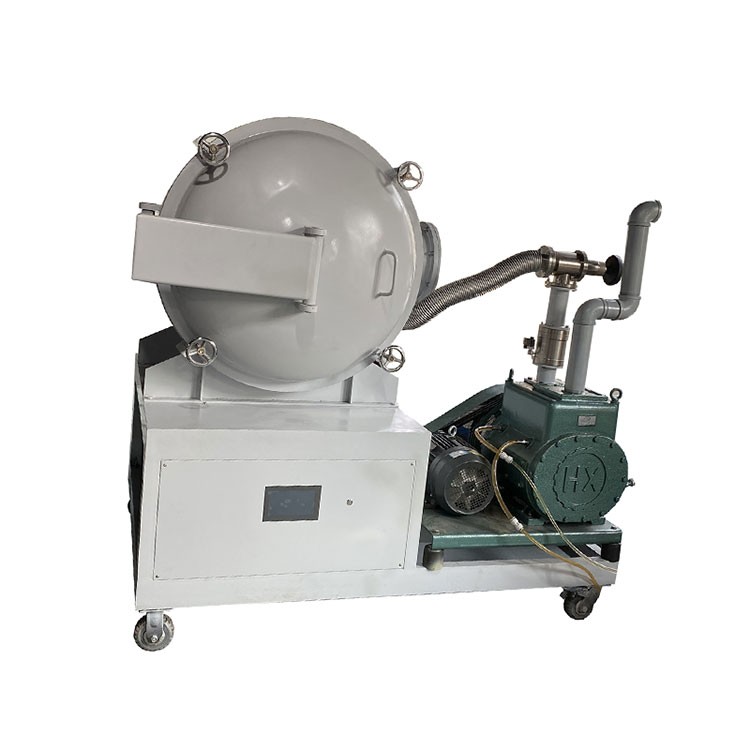

1200℃ Vacuum Atmosphere Furnace

    The vacuum Atmosphere Furnace CY-V1200-36L adopts double-layer air-cooled structure, high purity polycrystalline alumina fiber to make the furnace, and uses resistance wire as heating element; Equipped with rotary mechanical pump, vacuum up to 0.01mbar.  The machine has reasonable structure, unique shape, simple operation and easy to learn. At present, the product has been ordered by many research institutes, universities and research institutions at home and abroad.  It is an ideal product for metal heat treatment, ceramic sintering, vacuum smelting, etc

The vacuum Atmosphere Furnace CY-V1200-36L adopts double-layer air-cooled structure, high purity polycrystalline alumina fiber to make the furnace, and uses resistance wire as heating element; Equipped with rotary mechanical pump, vacuum up to 0.01mbar.  The machine has reasonable structure, unique shape, simple operation and easy to learn. At present, the product has been ordered by many research institutes, universities and research institutions at home and abroad.  It is an ideal product for metal heat treatment, ceramic sintering, vacuum smelting, etc

1200℃ Vacuum Atmosphere Furnace

Vacuum Atmosphere Furnace technical parameters:

Item

Detail

Supply   voltage

AC380V

Maximum   power

Vacuum furnace 9kW, vacuum system 5.5kW,water-chiller0.6kW

Heating   rate

20/minrecommended   10/min

Operating   temperature

Maximum temperature≤1000

Temperature   accuracy

±1℃

Thermocouple

K type   thermocouple

Uniform   temperature

±5℃

Temperature   control method

Double   layer polycrystalline alumina ceramic fiber furnace AI-PID 30 section process   curve, can store multiple With overheat and coupling protection

Furnace   chamber material

Double   layer polycrystalline alumina ceramic fiber furnace

Atmosphere   control

Fine   tuning valve intake, can pass Ar, N2 and other inert gas

Vacuum   system

Mechanical pump

Furnace   chamber size

300*300*400mm

Sealing   method

Outer   furnace door seal ring seal, inner furnace door chamber concave and convex   type seal

Vacuum   system

·           Mechanical   pump limit vacuum 0.01mbar

Overall   size

1520mm X 1140 mm X 1900 mm

Total   Weight

About 600kg
