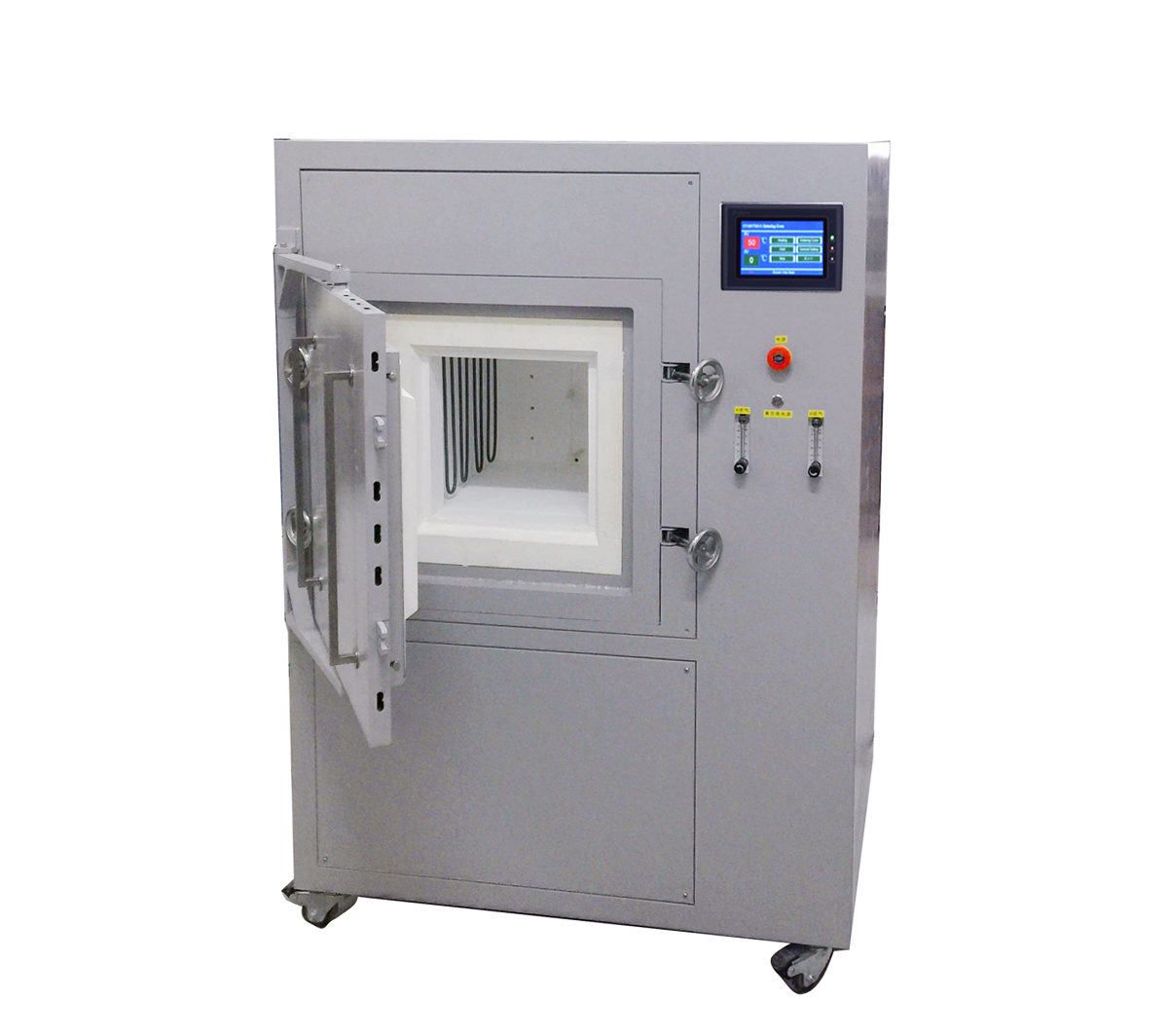

1700°C High Temperature Inert Gas Atmosphere Box Furnace CY-A1600-36L

1700°C High Temperature Inert Gas Atmosphere Box Furnace CY-A1600-36L

    CY-A1600-36L 1600℃ atmosphere controlled muffle furnace is designed for material synthesis under controlled inert gas atmosphere up to 1600℃with better temperature uniformity.High-quality alumina fiber brick and high purity MoSi2 heating elements with 300*300*400mm, as well as vacuum sealed steel case with water cooling jacket and two gas float flow controller,allows various gas surround request. It is an ideal tool for preparing new materials which require a heat treatment under inert gas or oxidizing gas.

Model No.

CY-A1600-36L

Controller

7” LCD Touch Panel

Chamber Dimension

300*300*400mm

Maximum Temperature

1650℃

Rated Temperature

Rm~1600℃

Heating Rate

0-20℃ (suggestion 10℃/min)

Temperature Control

30 programmable and PID automatic control

Temperature uniform

± 5℃

Heating Element

MoSi2

Thermocouple

B type

Furnace Shell Structure

Double furnace shell and is equipped with

cooling fan

Water cooling capacity

50w/ ℃

Tank capacity

9L

Cooling water speed

15L/min

Atmosphere acceptable

nitrogen, argon and other inert gases. Insert

reduction gas is prohibited

Voltage

AC380V,50/60Hz

Quality Guarantee

One year
