1700℃ vacuum atmosphere furnace The whole machine has reasonable structure, unique shape, simple operation and easy to learn. At present, the product has been ordered by many scientific research institutes, universities and research institutions at home and abroad

Inquire Now Next Product

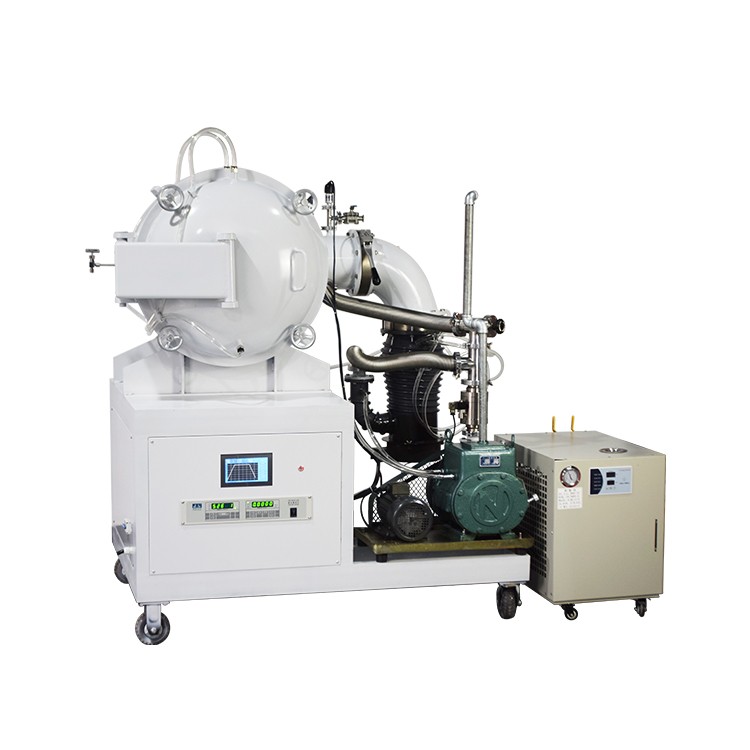

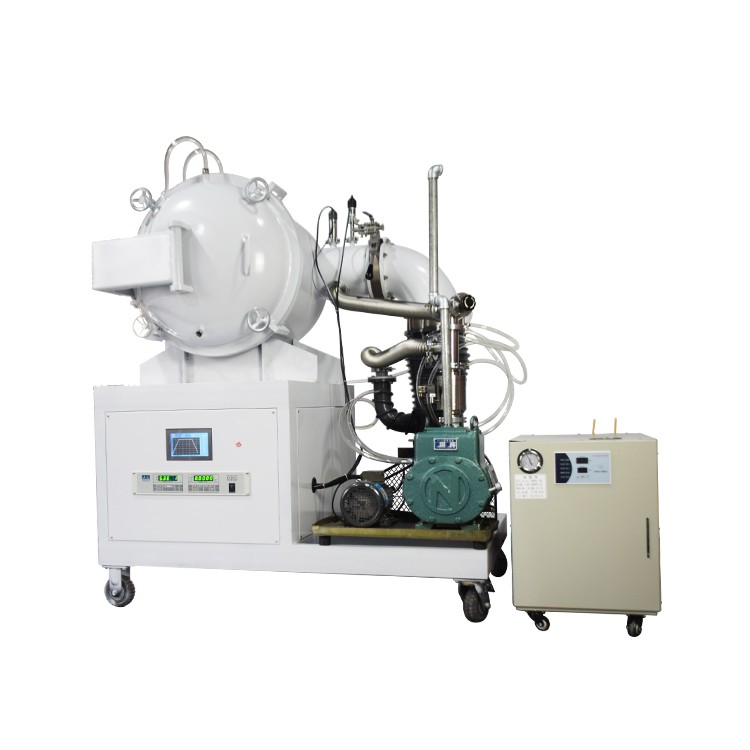

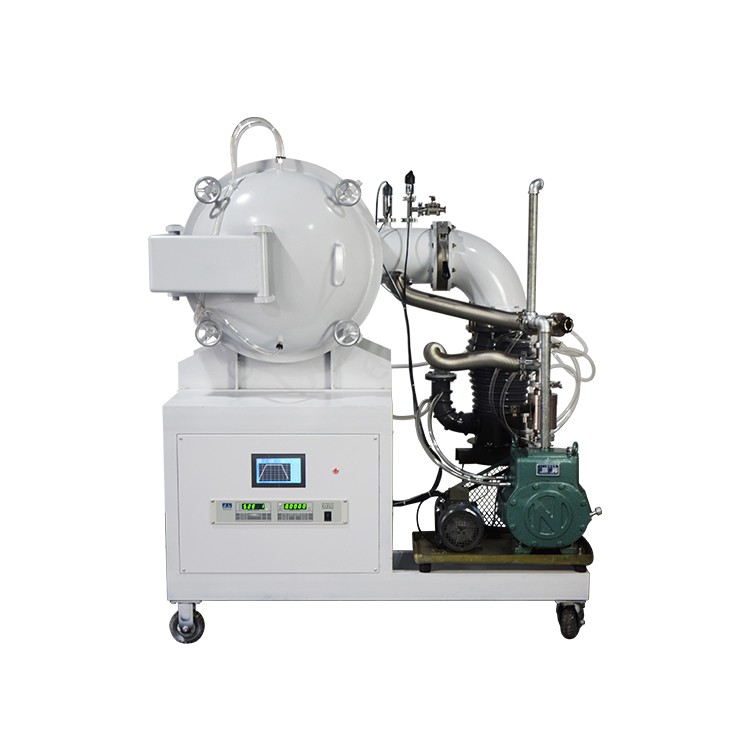

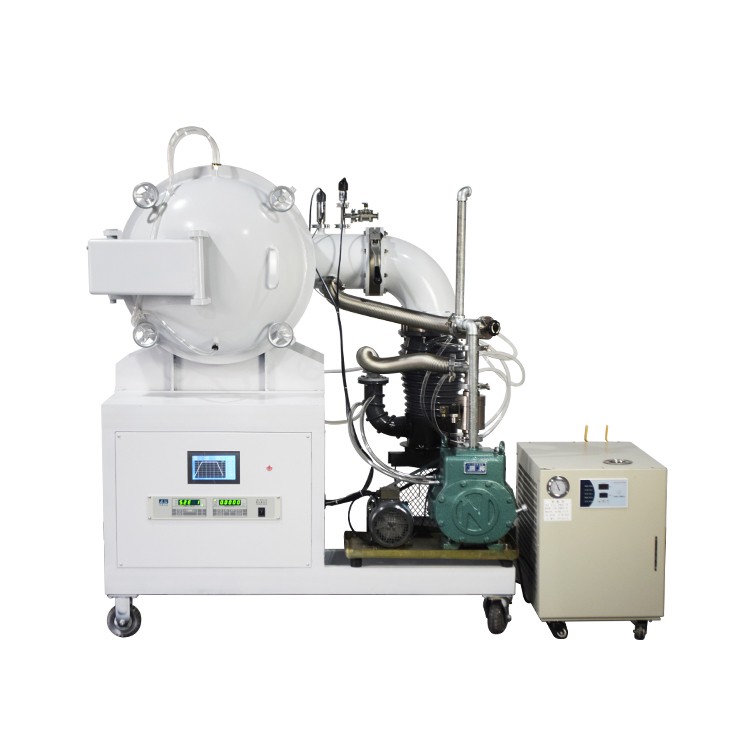

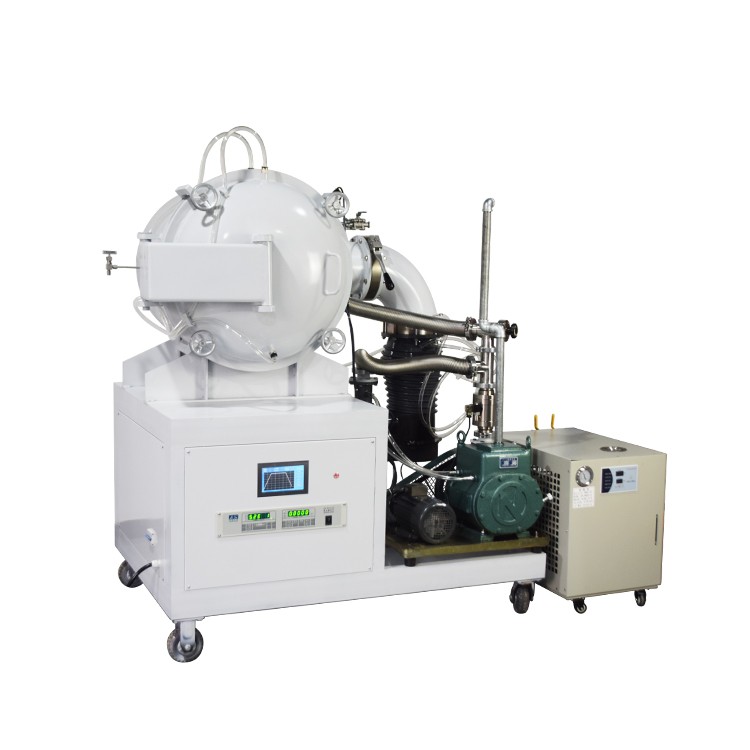

1700℃ vacuum atmosphere furnace CY-V1700-3IC adopts a double-layer air-cooled structure, high-purity polycrystalline alumina fiber makes the furnace chamber, and uses silicon molybdenum rods as heating elements to achieve rapid heating; equipped with a two stage rotary vane mechanical pump The vacuum pump group composed of diffusion pump can reach 6.5E-3Pa in cold state and 7E-2Pa when heated. The whole machine has reasonable structure, unique shape, simple operation and easy to learn. At present, the product has been ordered by many scientific research institutes, universities and research institutions at home and abroad. It is an ideal product for metal heat treatment, ceramic sintering, vacuum smelting, etc.

1700℃ vacuum atmosphere furnace technical parameters:

Item	Detail
Supply voltage	AC380V, 50Hz
Maximum power	7KW
Heating rate	≤20℃/min, recommended 10℃/min
Operating temperature	Maximum temperature≤1700℃; Continuous working temperature≤1600℃
Temperature control accuracy	±1℃
Thermocouple	B type thermocouple
Uniform temperature	±5℃
Temperature control method	AI-PID 30-segment process curve, can store multiple With overheating and thermocouple failure protection
Furnace chamber material	Double-layer polycrystalline alumina ceramic fiber furnace chamber
Atmosphere control	Fine-tuning valve for gas intake, which can pass inert gases such as Ar and N2
Vacuum system	Two-stage vacuum system mechanical pump + diffusion pump
Furnace chamber size	150mm x 150mm x 150mm
Sealing method	The outer furnace door is sealed with a sealing ring, and the inner furnace door is sealed with a concave-convex type
Vacuum system	Mechanical pump + diffusion pump two-stage vacuum pump set Ultimate vacuum 6.5x10^-3Pa
Overall size	1520mm x 1140 mm x 1900 mm
Total Weight	About 600kg
