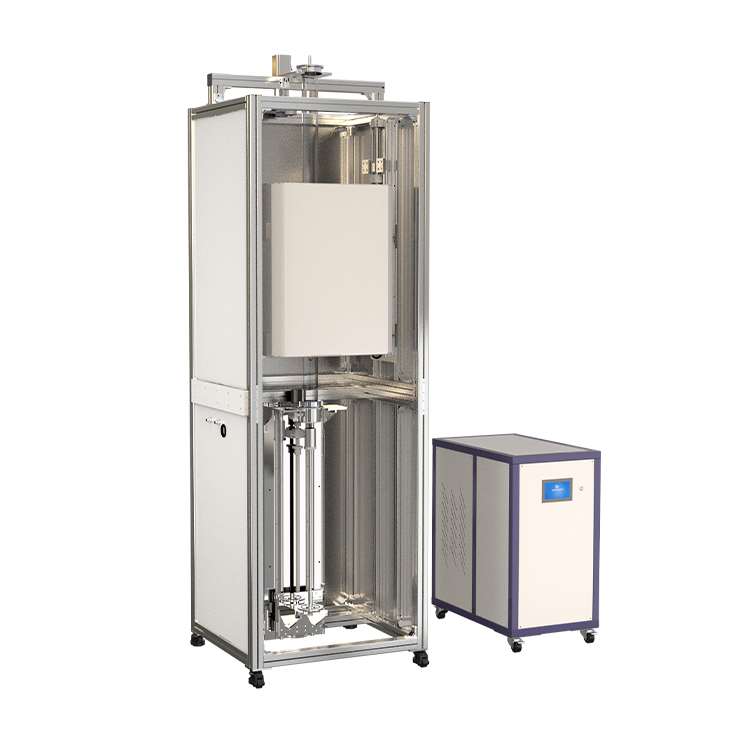

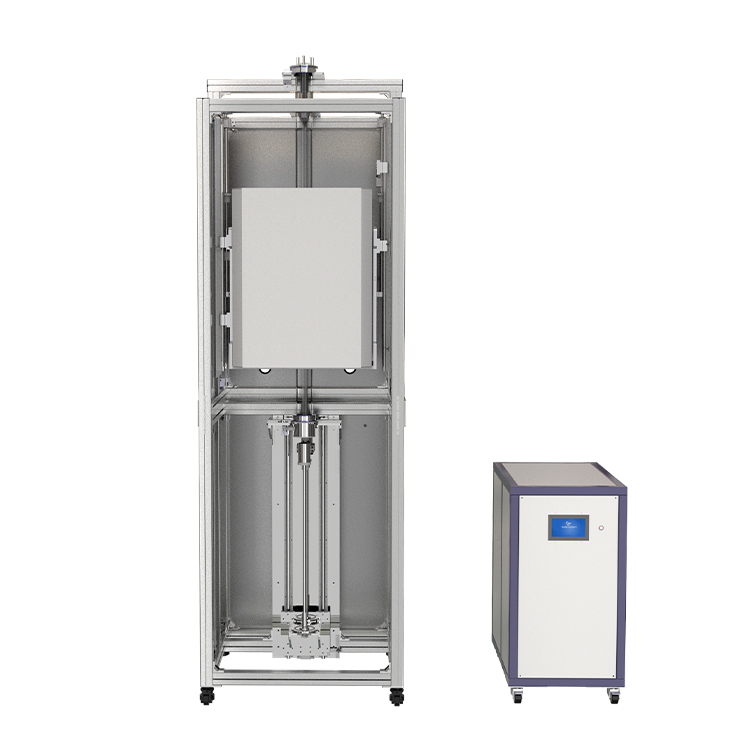

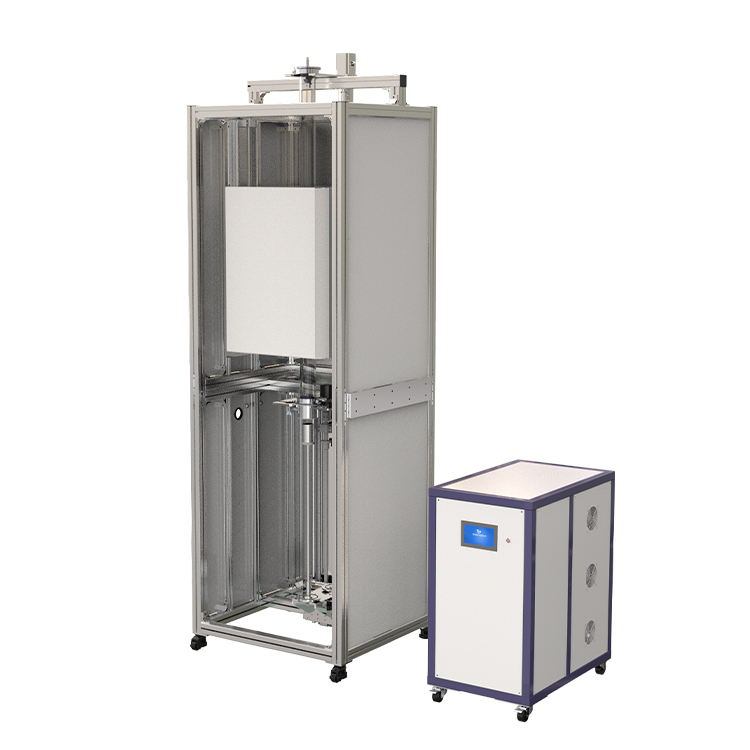

Bridgman Crystal growing furnace at 1650 ℃
1650℃ Bridgman crystal growth furnace is mainly used in the field of semiconductor materials, for the growth of a variety of single crystals, including silicon, sapphire, silicon nitride, silicon carbide, etc. It can grow high purity, high quality and large size single crystals for the production of semiconductor devices, lasers, optoelectronic devices, etc. In addition, the furnace can also be used to grow photovoltaic materials, magnetic materials, ferroelectric materials, etc.
1650℃ Bridgman Crystal growth furnace is a high temperature crystal growth equipment, mainly used to grow high quality, large size single crystals. Its technical features are as follows:
1. High temperature capacity: 1650℃ Bridgman crystal growth furnace can reach very high working temperature, can meet many high temperature crystal growth needs.
2. High precision temperature control: The furnace adopts advanced temperature control technology, which can achieve high precision temperature control and ensure the quality and reliability of crystal preparation.
3. Reasonable equipment structure: the furnace has a reasonable structure design, to ensure the uniformity and stability of crystal growth.
4. Simple operation: the operation of the furnace is very simple, can easily carry out process operation and parameter control.
5 High efficiency and energy saving: energy saving materials are used inside the furnace, which makes the heating efficiency high and the energy utilization rate high.
6. Safe and reliable: the equipment adopts high quality materials and advanced safety technology to ensure the safety of user operation and high reliability of equipment.
Bridgman crystal growth furnace Application fields:
1650℃ Bridgman crystal growth furnace is mainly used in the field of semiconductor materials, for the growth of a variety of single crystals, including silicon, sapphire, silicon nitride, silicon carbide, etc. It can grow high purity, high quality and large size single crystals for the production of semiconductor devices, lasers, optoelectronic devices, etc. In addition, the furnace can also be used to grow photovoltaic materials, magnetic materials, ferroelectric materials, etc.
Technical parameters of Bridgman crystal growth furnace:
Product name | 1650℃ Bridgman Single Crystal Growing furnace |
Product model | CYKY-BG1650 |
Power supply | Maximum power: 15KW |
Operating temperature | Maximum operating temperature: 1650℃ (<1 hour) Continuous operating temperature: 1600℃ |
Heating element | Silicon molybdenum rod |
Furnace | High purity alumina furnace tube, its size is 80 ×1070mm |
Tube & flange | Equipped with a set of stainless steel sealing flanges, allowing crystal growth in a vacuum or atmosphere protected environment |
Sample stand | A Φ60 x 100mm alumina sample stand Type B thermocouple is inserted into the bottom of the sample table to measure crucible temperature in real time |
Crucible loading | Automatic sample table lifting for easy crucible placement/sampling Maximum stroke 700mm |
Heating area | Three temperature zone furnace body, forming a large temperature gradient (each temperature zone length 100mm, total temperature zone 300mm) |
Temperature control system | PID temperature control, can be set up 30 rising and cooling procedures With super mild break protection Three type B thermocouples |
Furnace body moving stroke & speed | The maximum moving stroke of furnace body is 500mm Moving speed: 0.03~3mm/ hour |
Vacuum pump | Bipolar rotary vane vacuum pump 1.1L/S |
Power supply | 220V 50HZ |
Remarks | Comes with a 10L water cooler |
