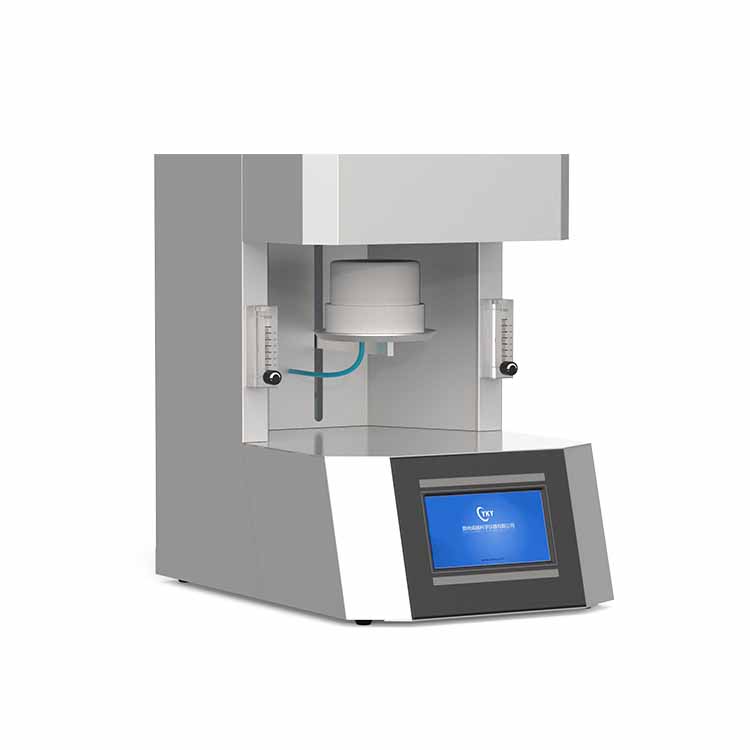

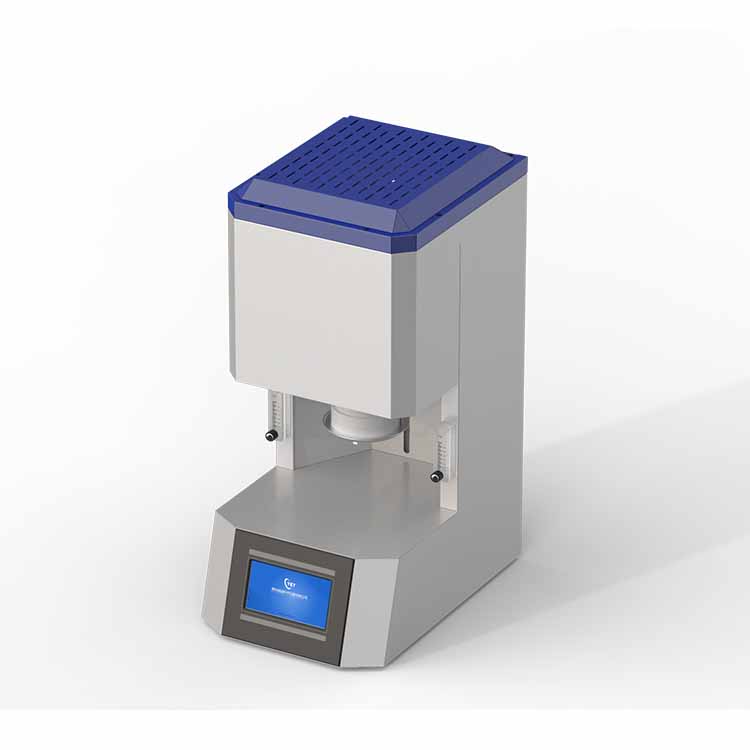

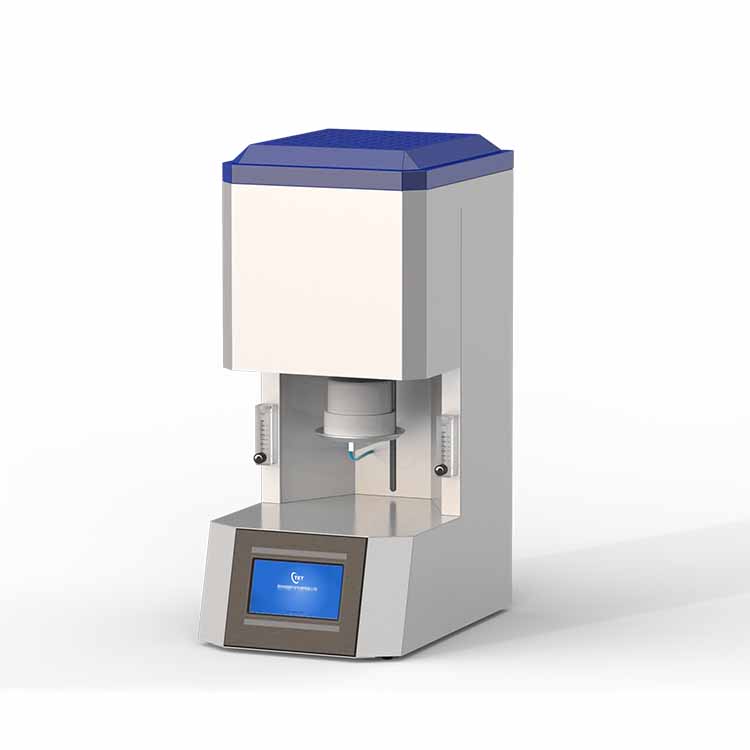

Cobalt-chromium alloy, commonly known as soft metal, is widely used in the medical field because of its excellent biocompatibility and non-toxicity. However, because the forming and sintering process of cobalt-chromium alloy is a major difficulty in processing, this greatly restricts the promotion of this alloy material in the denture industry and restricts the development of the industry. After two and a half years of technical research, our company successfully developed the first “cobalt-chromium alloy dental sintering furnace” that can be used in production. The soft metal sintering furnace provides precise high-temperature sintering process for cobalt-chromium alloy dentures. The intelligent temperature control system can store multiple sintering curves, the main control chip can intelligently control the gas inlet and change; all operations can be done on the touch screen, the operation is simple and intuitive. Our soft metal sintering furnace will be your best choice for the production of cobalt-chromium dentures.
Scope of application: soft metal (cobalt chrome) dental crown sintering
Soft metal sintering furnace technical parameters:
Model | CY-A1400-ZQ |
Chamber structure | Lifting type, lift mechanism mute processing |
Chamber size | φ100×150mm |
Chamber volume | 1.2L |
Chamber material | Imported alumina fiber |
Operating mode | HD full color LCD touch screen |
Working temperature | 0～1400℃ |
Heating rate | ≤60℃/min |
Heating zone | Single heating zone |
Temperature accuracy | ±1℃ |
Temperature control | 30 Steps programmable and PID automatic control |
Temperature measuring element | S-type thermal couple |
Gas | Pure air and inert gas, program automatically controls switching |
Gas interface | 1/4" ferrule connector (Ø8 pagoda-shape connector) |
Power supply | AC: 220V 50/60Hz |
