Featrues
1.Automatic Lifting up and down

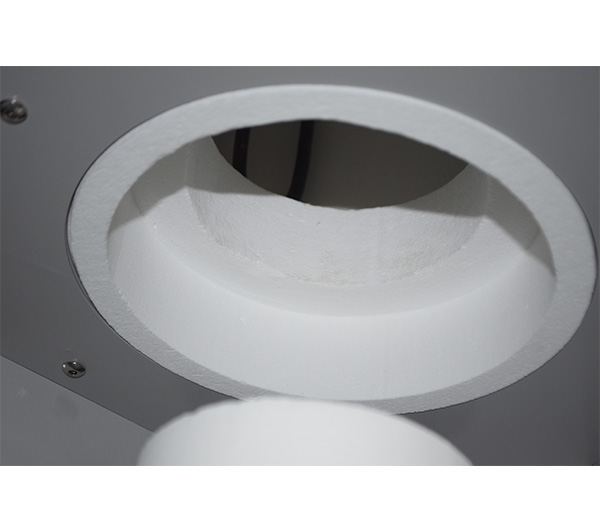

2.High temperature chamber material, resistance high temperature 1700 ℃

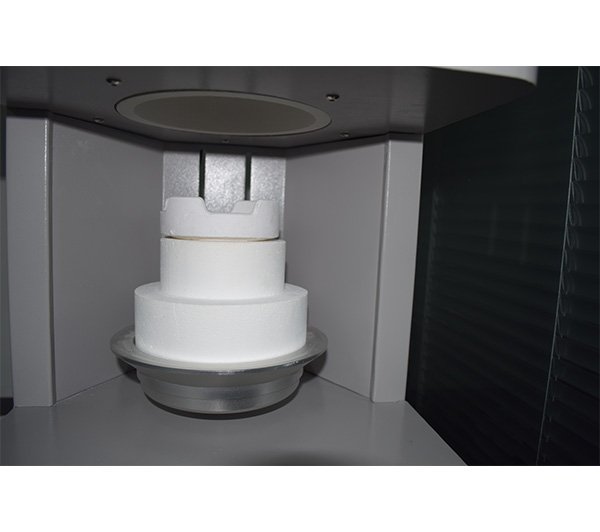

3.Programmable controlled,after sinter, the tray will automatic come down to reduce whole heating time
4.7" Larger Touch panel with PC interface
5.Round heating zone, more uniform temperature field
6. Fast sintering speed, total sintering process time less than 120 minutes.
Technical parmaters
Model | CY-B1700X |
Limiting temperature | 1700℃ |
Controller | 7" LCD touch Panel |
Working temperature | ≤1650℃ |
Heating rate | Suggestion 0~20℃/min |
Temperature zone | Single |
Temperature accuracy | ±1℃ |
Chamber size | Φ120*120mm |

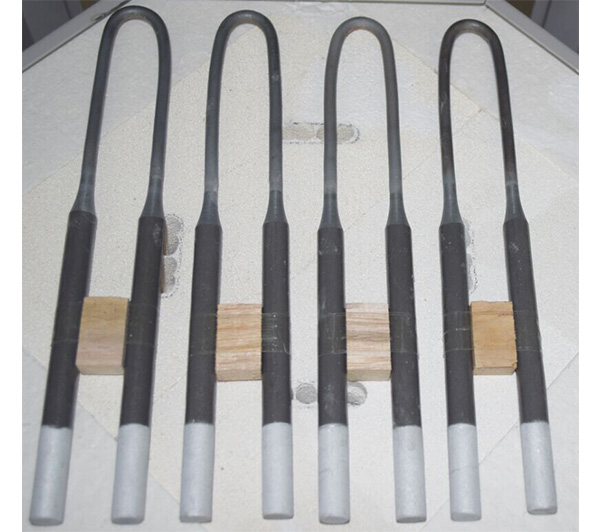

Heating element | 1800 MoSi2 rod |
Thermal couple | B Type |
Temperature control | PID automatic control via SCR power control |
Heating curves | 30 steps programmable |
Sealing type | bottom type door |
Over temperature alarm | yes |
Overcurrent protection | yes |
Working voltage | 220V 50-60Hz |
