Basic info
Model NO.: CY-GP-1202
Structure: Desktop
Certification: CE, ISO
Type: Polishing Machine
Trademark: CYKY
Specification: polishing machine
Customized: Non-Customized
Material: Steel
Application: School, Lab
Precision Rotating Shaft: Running off < 5 Micron
Transport Package: Wooden Case
Origin: China
Product Description
12" Precision Auto Lapping/ Polishing Machine for for preparing metallographic samples
Description of the 12" precision auto lapping / polishing machine:
This machine is equipped with 12" super flat lapping plate and can be used as a high precision lapping machine for polishing crystal components, semiconductor wafers, and ceramic substrates up to 4" in diameter. It can be used as a standard grinding and polishing machine for preparing metallographic samples as well.
Specification of the auto lapping / polishing machine:
| Power | AC 110V and 208-240V (50/60Hz) switchable for worldwide operation. |
| Features | One cast iron plate for lapping and one cast aluminum plate for polishing.
Two rocking workstations with wafer holders and condition rings, which can be controlled independently for polishing 2 pcs of 4" wafers at the same time.
Complete accessories are included for immediate use |
| Super-Flat 12" (300 mm) Diameter Lapping Plate | Flatness < 0.25 micron / inch² |
| Precision Rotating Shaft | Running Off < 5 micron |
| Heavy Duty Cast Aluminum Case with Bright Painting | Color : Black or White |
| Two Work Stations with 8° Rocking and adjustable speed | 8" rocking with 0- 9 rocking / minute adjustable |
| Two Flat Sample Holders for Carrying < 4" Dia. Wafer | 105 Dia. x 35 T mm |
| Two Condition Rings | 120 O.D. x 110 I.D. x 32 T mm |
| Variable Speed of Master Plate with Digital Display | 0 ~ 150 rpm |
| Adjustable Timer for Auto-Stop | 0 - 99 hours |
| Motor | 300 W high torque DC motor |
| Dimensions | 700 L x 475 W x 300 H (mm) |
| Weight | 154 lbs |
| Dimensions of shipment | 40"x30"x26" |
| Weight of shipment | 220 Lbs |
| Optional Parts | Automatic Slurry Feeder
2" Polishing Fixture for Precision / Automatic Thinning and Polishing
|
| Compliance | CE Certified |
| Warranty | One year limited with lifetime support
Rusting and damage due to improper storage condition or maintenance is not covered by warranty |
standard package:
| No. | Description | Qty |
| 1 | 12" polyimide foam pad | 1 pc |
| 2 | 12" poromeric pad | 1 pc |
| 3 | Power cord | 1 pc |
| 4 | Sample holder | 2 pcs |
| 5 | Wax | 2 pcs |
| 6 | Condition ring | 2 pcs |
| 7 | Hex wrench & screwdriver | 1 set |
| 8 | Fuse(10A) | 2 pcs |
| 9 | 12" iron plate | 1 pc |
| 10 | 12" Aluminum plate | 1 pc |
| 11 | Input tube & output tube | 1 pair |

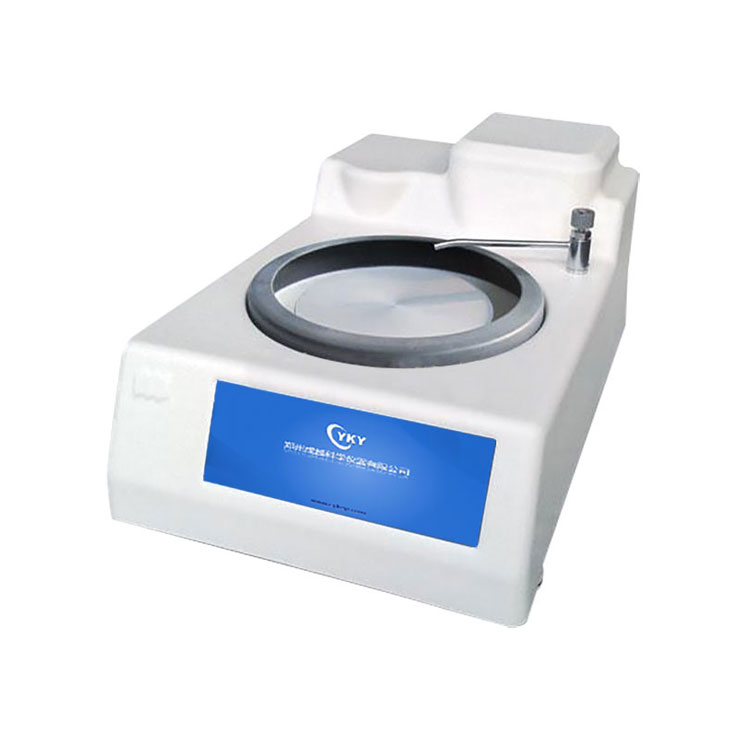

reference picture of the polishing machine:
