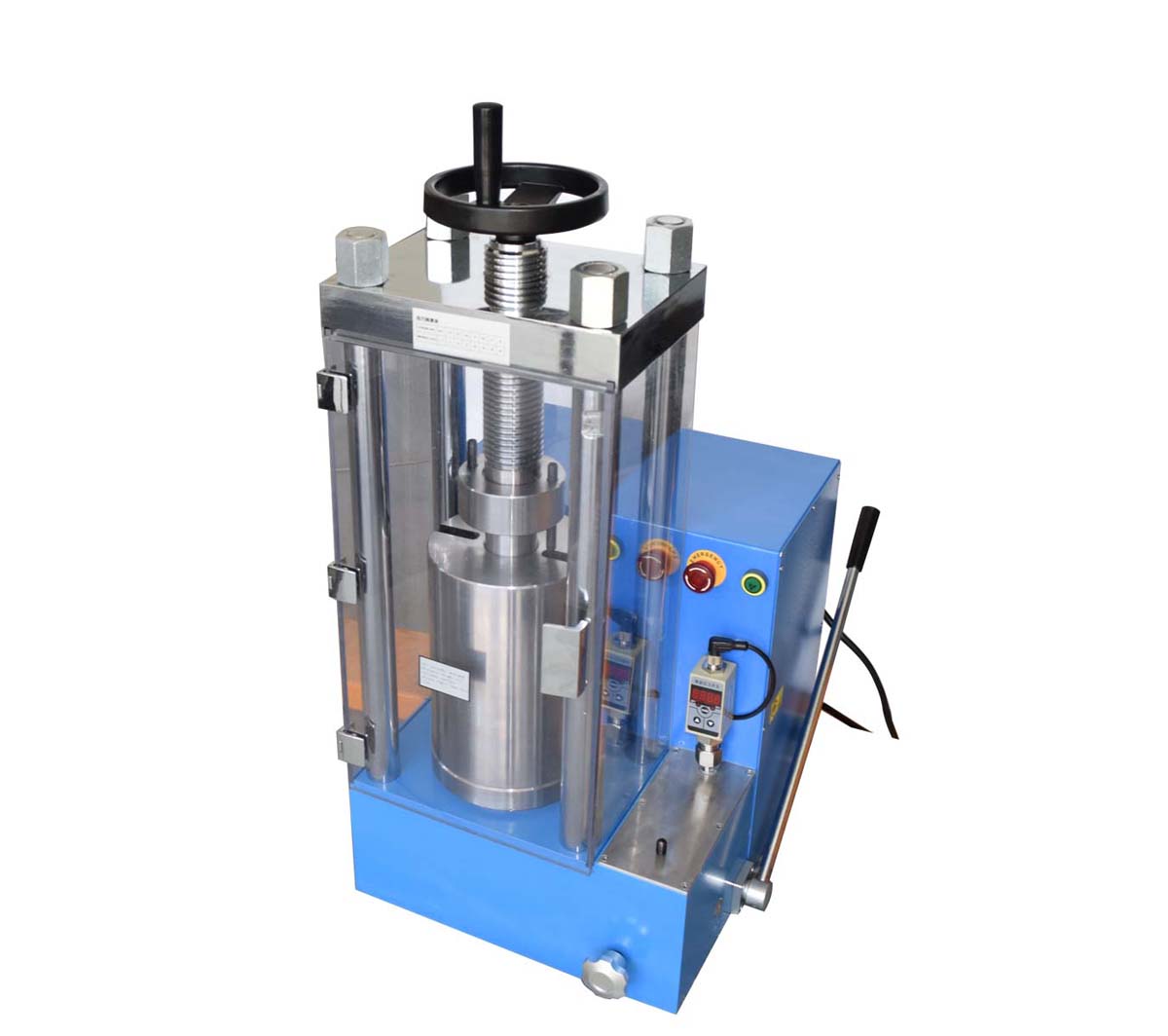

60T compact cold isostatic pressing(CIP) electric hyraulic press CY-PCD-60J

60T compact cold isostatic pressing(CIP) electric hyraulic press CY-PCD-60J

60T compact cold isostatic pressing(CIP) electric hyraulic press CY-PCD-60J

60T compact cold isostatic pressing(CIP) electric hyraulic press CY-PCD-60J

60T compact cold isostatic pressing(CIP) electric hyraulic press CY-PCD-60J

60T compact cold isostatic pressing(CIP) electric hyraulic press CY-PCD-60J

60T compact cold isostatic pressing(CIP) electric hyraulic press CY-PCD-60J

CY-PCD-60J is an excellent tool to prepare high-density compound pellet and small diameter rod in laboratory.It is designed with O.D50*150 isostatic stainless steel chamber which use for Scientific research, teaching, testing, pharmaceutical, catalysis, chemical industry, etc. It has a compact structure will all in one structure to protective from oil link.

Inquire Now Next Product

Model No.	PCD-60J
Pressure gauge	0~60T (0~34MPa)
Piston diameter	Φ150mm

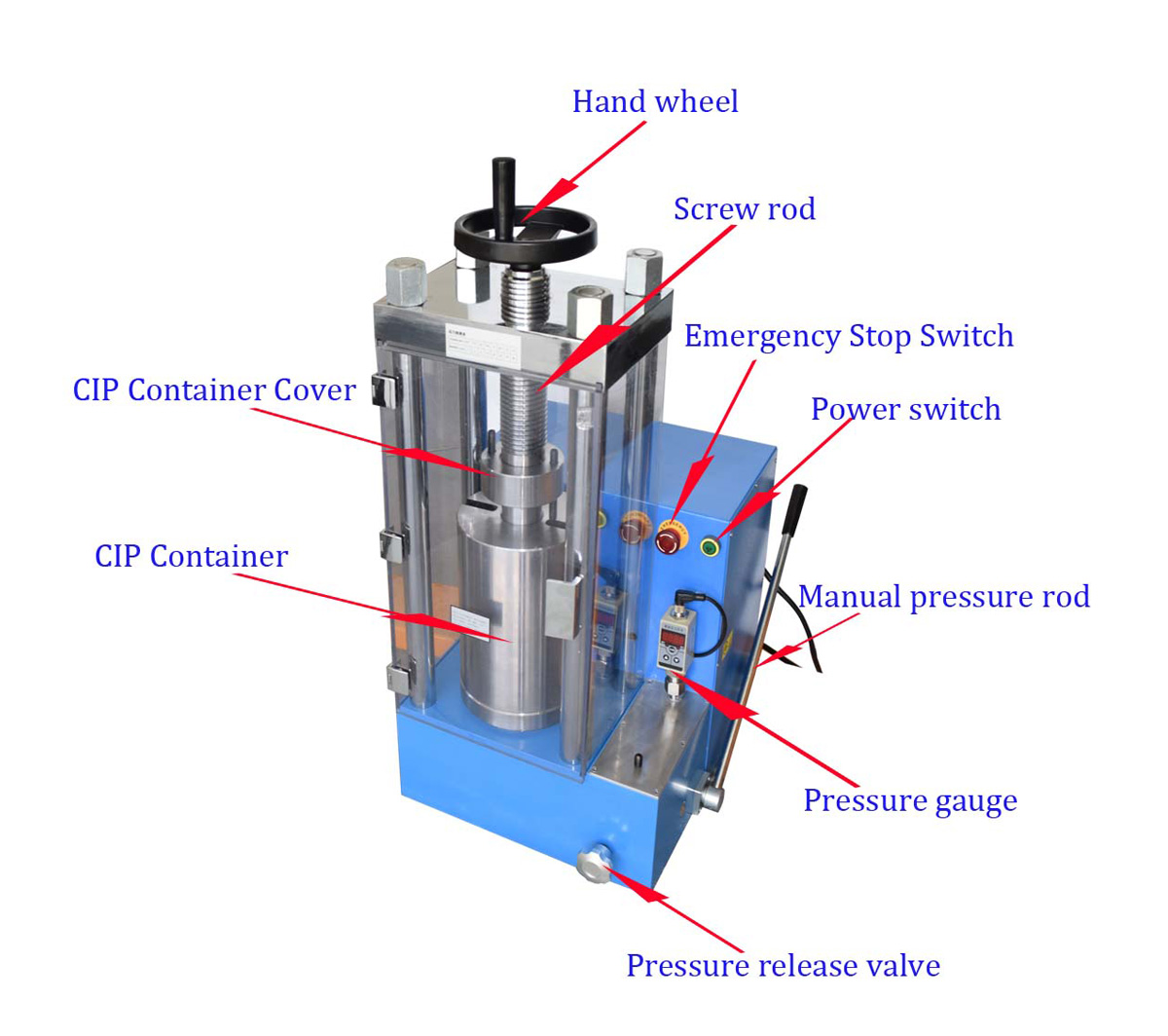

Main structure	All in one structure, no oil link point
Pressure gauge	Digital gauge 0.0~40.0MPa
Max piston distance	50mm
Way of pressure	Electric/Manual
Supplement pressure	Automatic/Manual
Isostatic pressing chamber	0~300MPa
Chamber dimension	Φ50*150mm
Outer dimension	405470720mm
Power supply	AC220V, 50/60Hz
Gross weight	200kg

Pressure conversion

Real Pressure	System Pressure	Chamber Pressure
5T	2.83MPa	25MPa
10T	5.66MPa	50MPa
15T	8.49MPa	75MPa
20T	11.3MPa	100MPa
25T	14.1MPa	125MPa
30T	16.9MPa	150MPa
40T	22.6MPa	200MPa
50T	28.3MPa	250MPa
60T	34.0MPa	300MPa

;
