Low Temperature Liquid Nitrogen Cryogenic Mill CY-YDQM-2LLow Temperature Liquid Nitrogen Cryogenic Mill CY-YDQM-2L

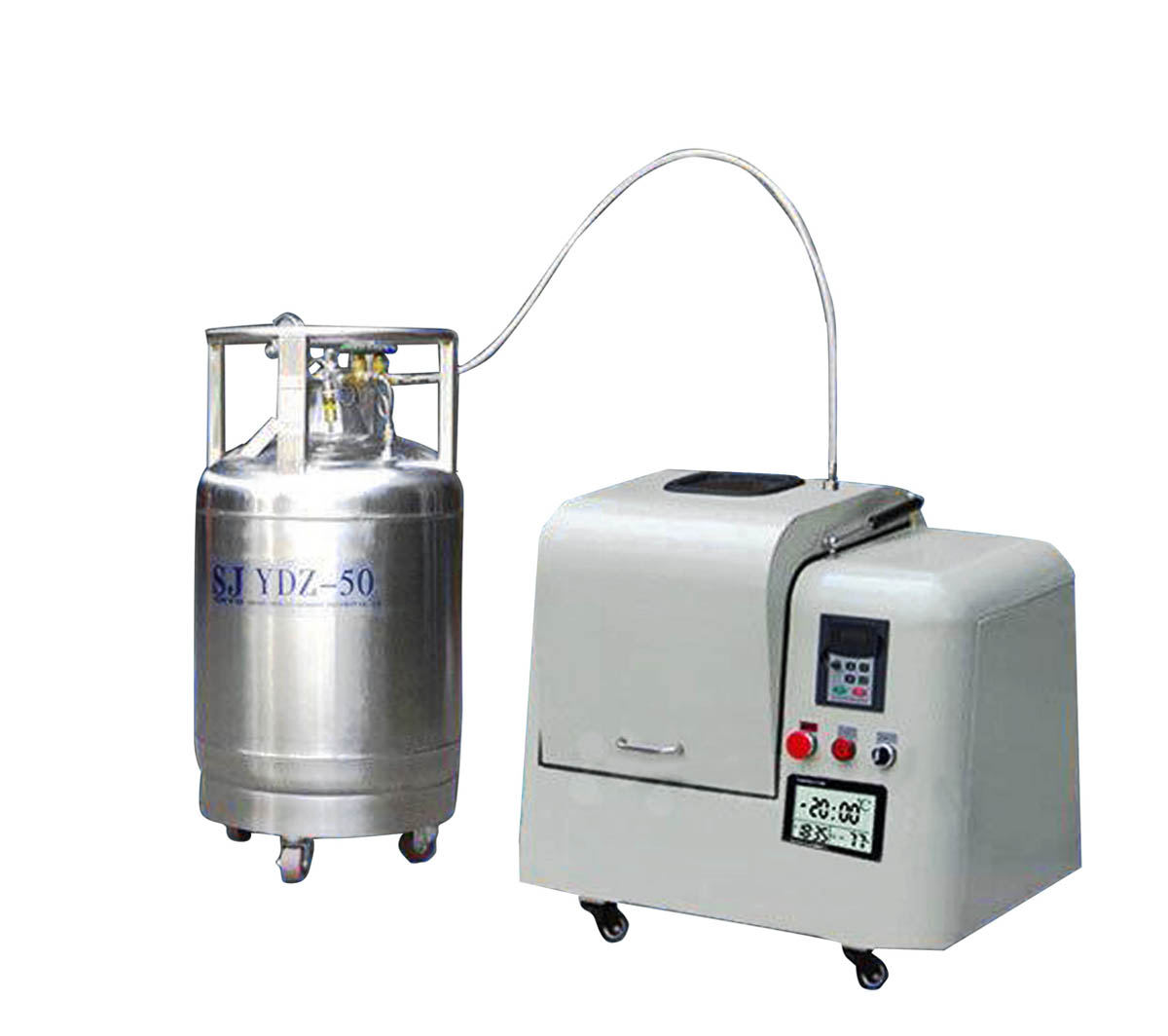

Low Temperature Liquid Nitrogen Cryogenic Mill CY-YDQM-2L

    Features

    1.Temperature is adjustable and controllable

    2.Large capacity: total 2L, four different tanks, one time mill,can get different sample size

    3.Ultra pure crucible, To avoid powder secondary pollution


    Item Name

    Cryogenic mill

    Model No.

    CY-YDQM-2L

    Capacity

    2L

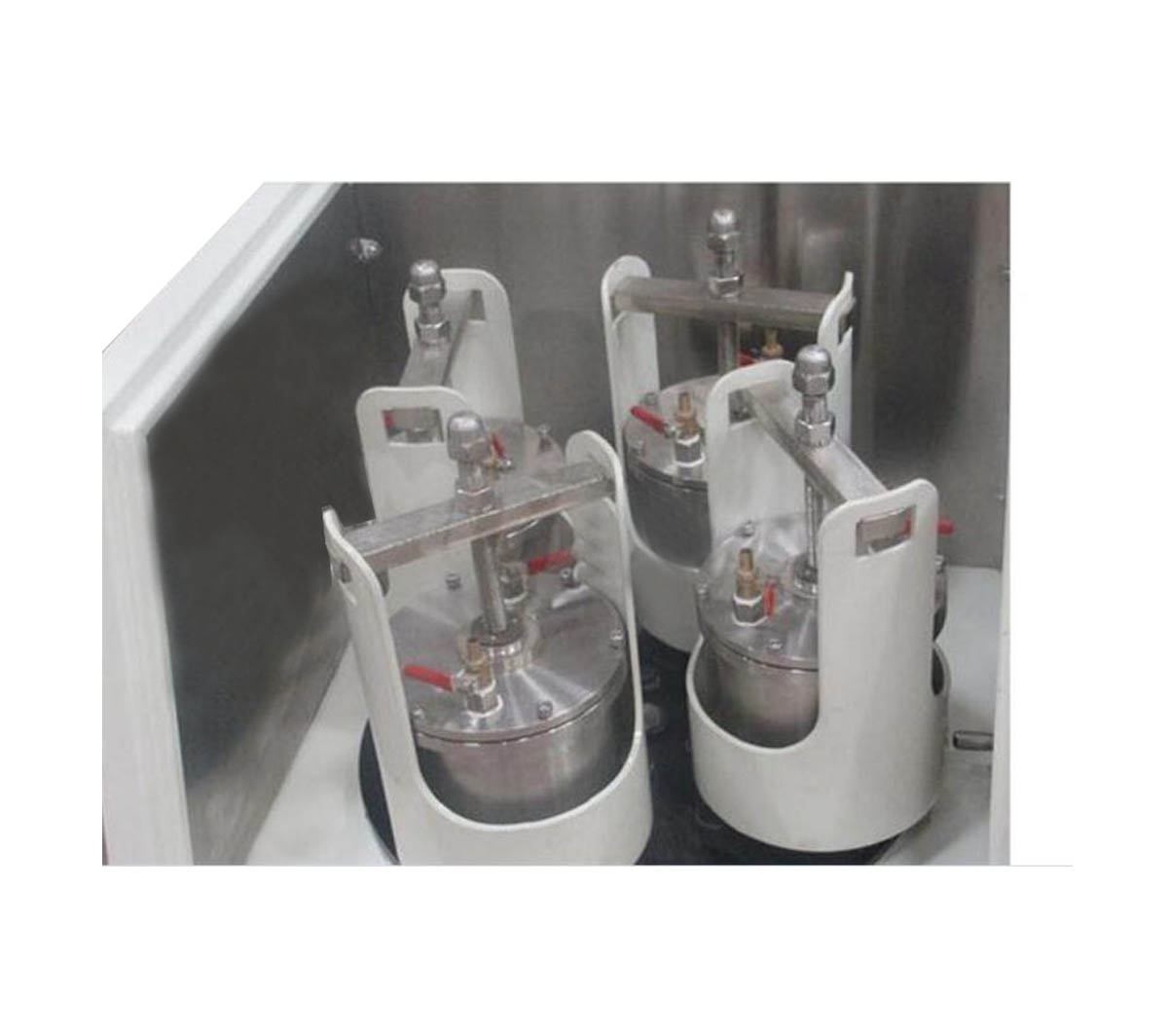

    Tank

    Zirconia or agate crucible 4 pieces

    Maximum loading of each tank

    3/4 of the tank capacity, 500ml

    Feeding granularity

    Crispy material< 10mm, others < 3mm

    Discharging size

    0.1um

    Rate Speed

    Revolution:290rpm;rotation:530rpm

    Speed adjust

    Frequency control

    Driving method

    Gear drive

    Control

    Programmable control

    Ball mill tank temperature

    -40℃~20℃

    Gas consumption

    4-5L/hour

    Dimension

    750*480*520mm

    Gross weight

    125kg
