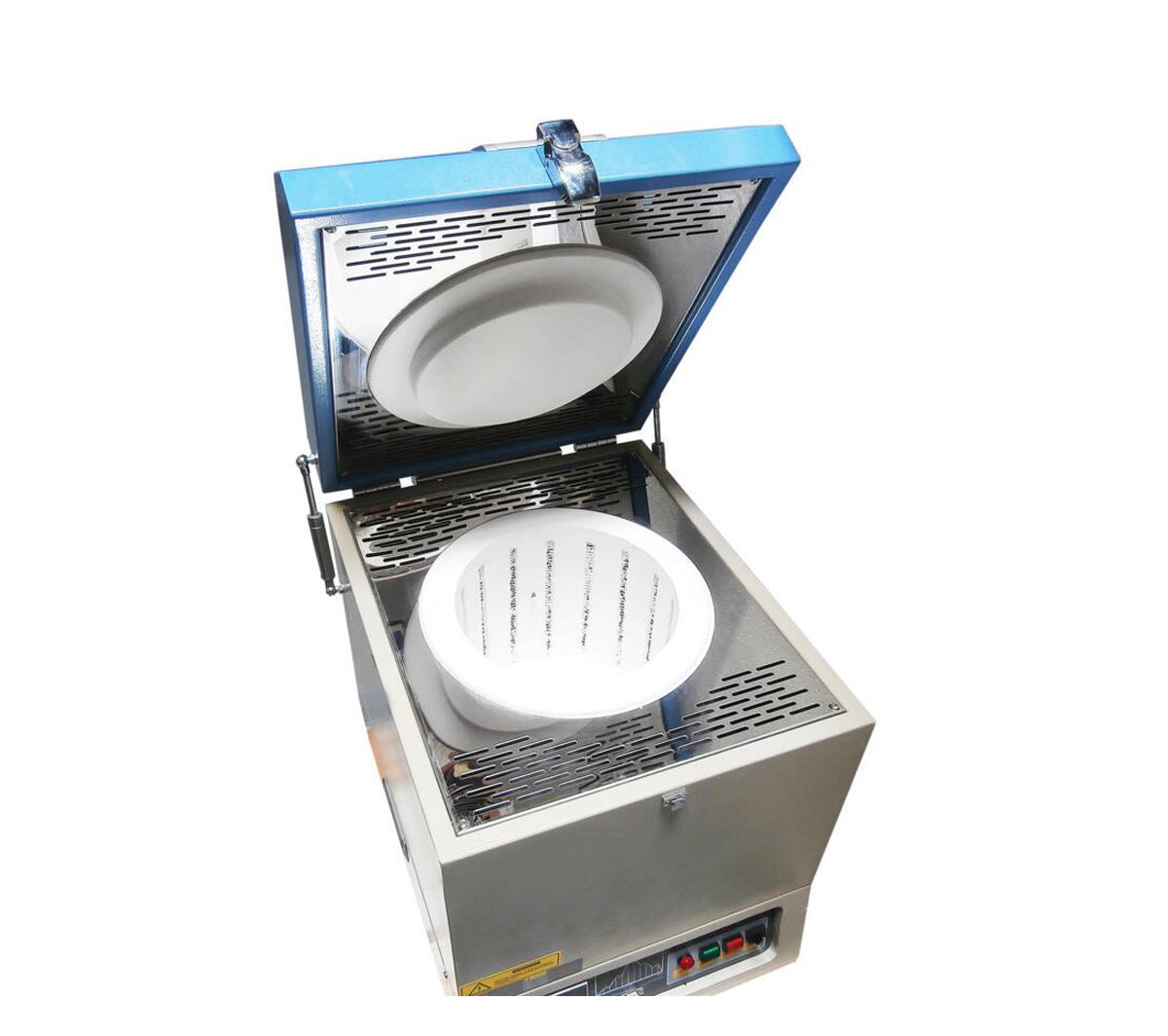

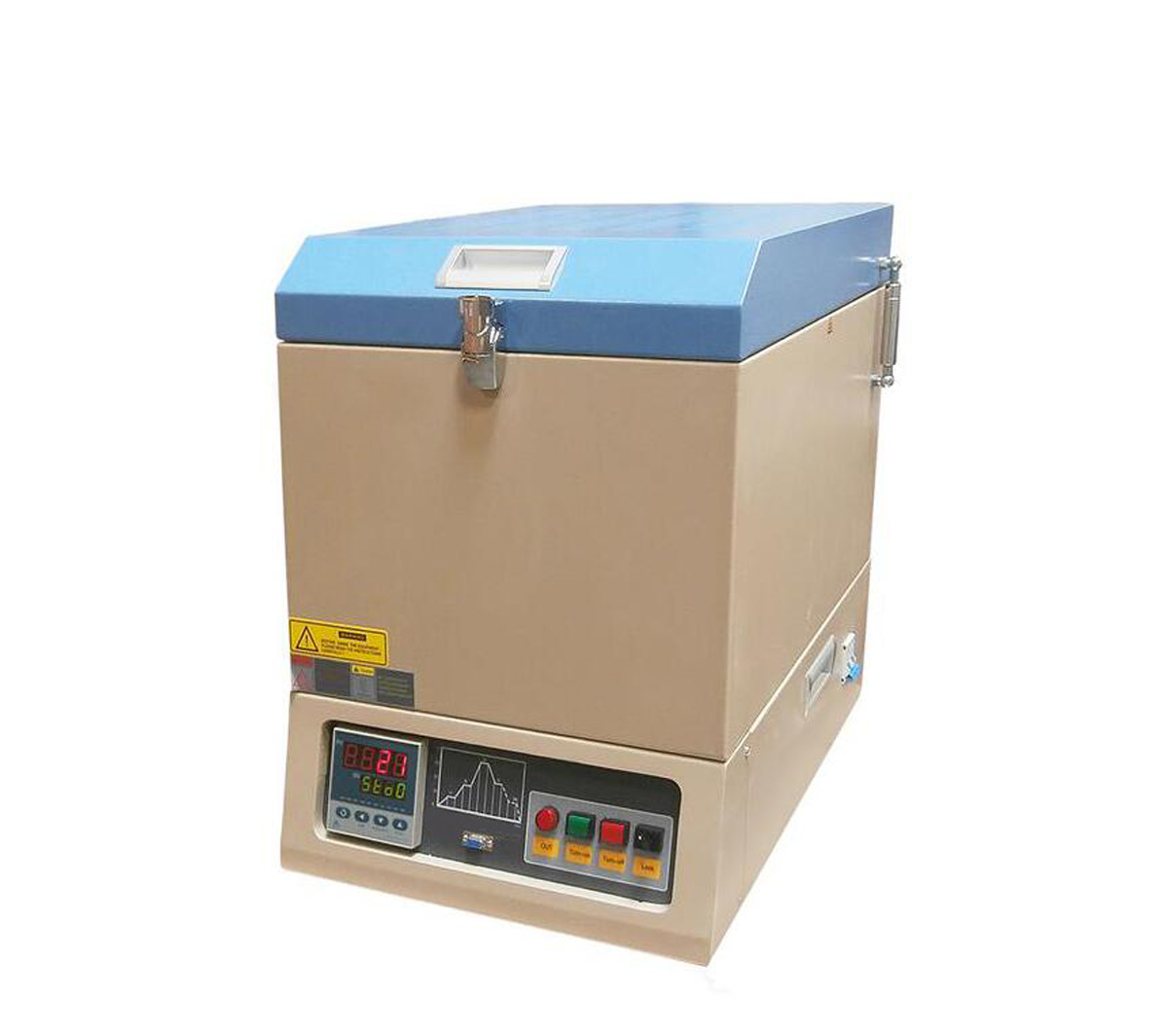

Vertical Crucible Furnace with 9.5"Dia x 8.6"H Chamber with PID Programmable Controller CY-VBF-1200X

    Features

    1. LED digital buttion panel with PID Programmable control

    2. CE certified, quality warranty

    3. High quality alumina fiber, good heat preservation effect

    4. 30 steps Programmable and SCR accuracy temperature control

    5. Clear heating element, no color greening changing

    6. Low power, energy conservation and environmental protection


    Model

    CY-VBF-1200X

    Display

    Digital LED button controller

    Limiting temperature

    1200℃

    Working temperature

    ≤1150℃

    Heating rate

    Suggestion 0~20℃/min

    Temperature accuracy

    ±1℃

    Inside chamber size

    Φ240*220(mm),9L capacity

    Heating element

    Fe-Cr-Al alloy

    Thermal couple

    K Type

    Temperature control

    PID automatic control via SCR power control

    Heating curves

    30 steps programmable

    Chamber material

    Alumina Fiber

    Protective

    Built-in over-temperature alarm and thermocouple failure alarm

    Rated power

    2.5 KW

    Working voltage

    AC 220V, 50-60Hz

    Packing

    PLY wood box

    Accessories

    Door block 1 piece,glove 1pair, crucible tongs 1pc, manual book
