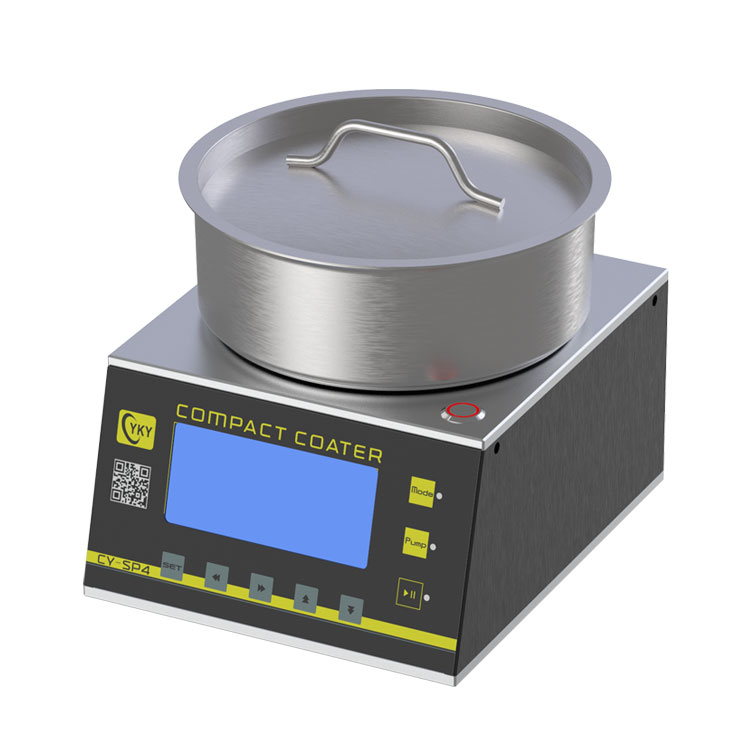

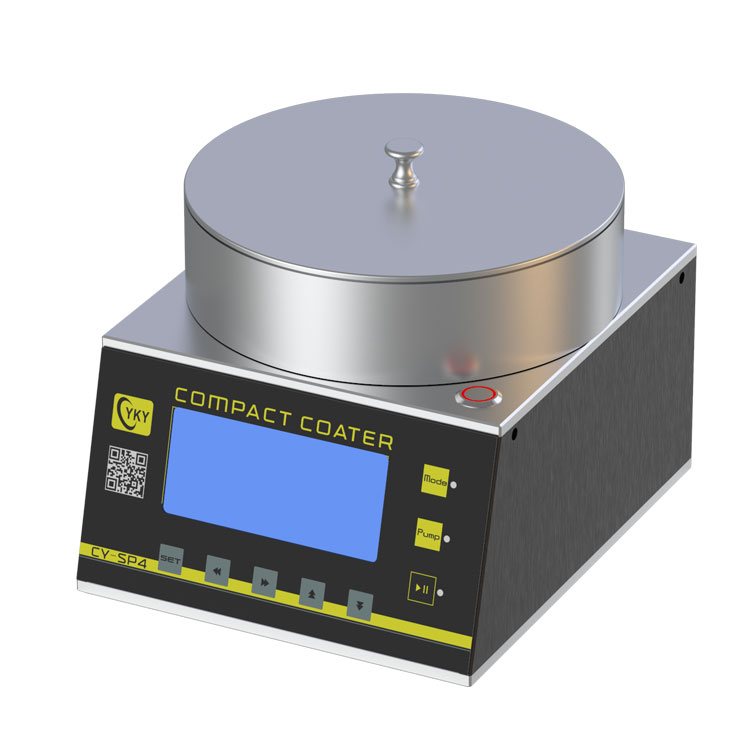

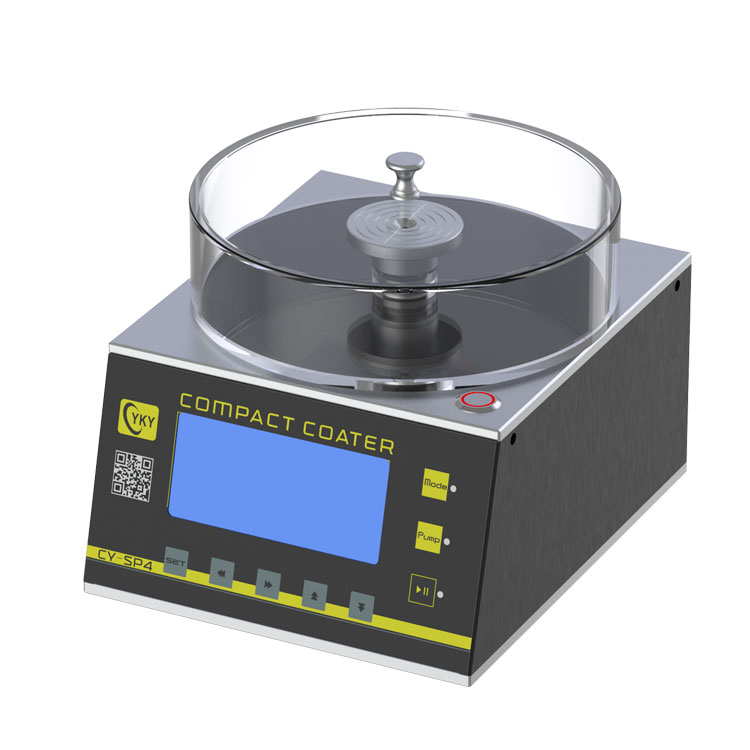

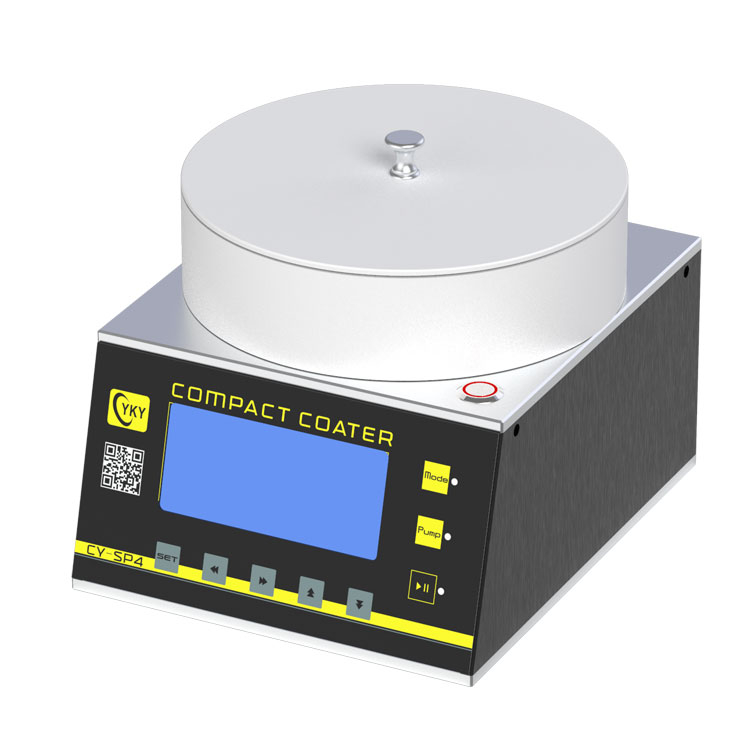

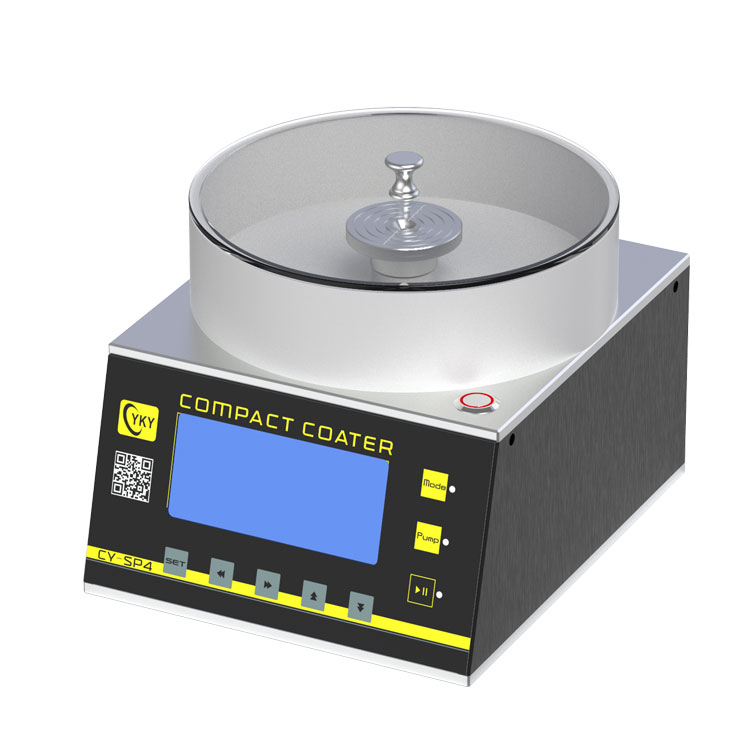

Compact Vacuum Spin Coater with Vacuum Chucking Cy-Sp4

    CY-SP4 spin coater is a high performance compact spin coater. It is designed for high uniformity thin material coatings. With its small footprint, the spin coater can be installed in a fume hood or a glove box. The upgraded program can store up to five recipes and each recipe could be edited with five spin steps.


Product Description


compact vacuum spin coater
Description of the spin coater:
CY-SP4 spin coater is a high performance compact spin coater. It is designed for high uniformity thin material coatings. With its small footprint, the spin coater can be installed in a fume hood or a glove box. The upgraded program can store up to five recipes and each recipe could be edited with five spin steps.

Specification of the spin coater:


Item

Detail

Spin coater

Supply voltage

AC220V, 50Hz

Spin speed

0~8000rpm

Acceleration

100~5000rpm/s

Speed resolution

1rpm

Single step time

3000s

Substrate size

Diameter ≤ 4 inches (100mm)

Chamber material

Plexiglass

Operation method

Button + LCD screen

Dispensing method

Manual dispensing, optional precision syringe pump

Coating curve

5 segments per curve, a total of 5 curves can be   stored

Pumping port

Φ8mm quick screw joint

Overall size

210mm×250mm×180mm

Total Weight

8kg

Exhaust system

Vacuum pump

Dry mechanical pump

Pumping rate

1.1L/s

Power supply

AC220V 50/60Hz
