Programmable High Speed Vacuum anticorrosive Spin CoaterProgrammable High Speed Vacuum anticorrosive Spin Coater

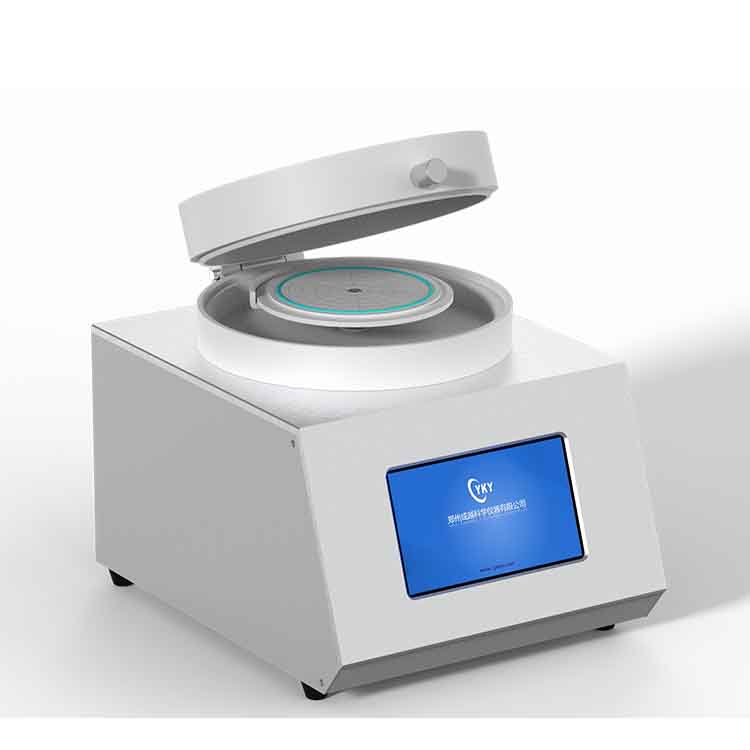

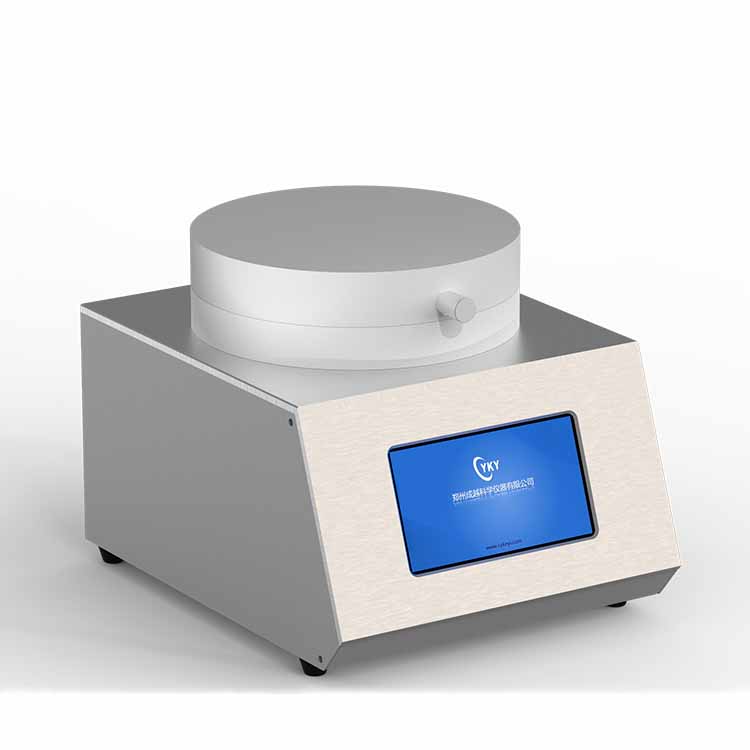

Programmable High Speed Vacuum anticorrosive Spin Coater

    Programmable High Speed Vacuum anticorrosive Spin Coater is Mainly used in liquid materials, gels, flowable pastes  Its programmable control instantly provides controlled high-speed rotation and a fast but liquid, gel finish on the substrat.

Programmable High Speed Vacuum anticorrosive Spin Coater is Mainly used in liquid materials, gels, flowable pastes  Its programmable control instantly provides controlled high-speed rotation and a fast but liquid, gel finish on the substrat.

Programmable High Speed Vacuum anticorrosive Spin Coater Advantages:

Programmable High Speed Vacuum anticorrosive Spin Coater is CE certified tabletop spin coating device dedicated to spin coat small substrates up to 100 mm diameter at Max. 10000 rpm. The spin head actuator is a precision DC servo motor with accurate speed and acceleration control. The substrate can be held by vacuum (for thinner objects). The device has a user-friendly keyboard and LCD display for programming various parameters up to 12 programs, 6 segments. Spin duration, spin speed, and acceleration can be programmed from the front panel. All components in the device are corrosion protected to make it cleanroom compatible.

High Speed Vacuum anticorrosive Spin Coater Main Features:

1. Vacuum adsorption method to fix the sample, easy to operate

2. Use the positioning tool to easily place the sample in the center position to reduce the vibration caused by the eccentricity or the flying piece

3. According to the sample specifications, different suction cups can be used, and the replacement is convenient and simple.

4. There are 12 sets of procedures to ensure the consistency and uniformity of the coating thickness.

5. The degree of vacuum can reach -0.05MPa

6. Accept substrates from 5 mm to 5 inches

7. PP chamber is used for anti-corrosion operation.

8. An air inlet at the top of the cover that can be filled with inert gas during the coating process, including a 20 ml plastic syringe

9. Ar gas can be used (the vacuum pump must be outside the glove box)

10. Safety interlock is integrated in the cover

High Speed Vacuum anticorrosive Spin Coater Technical Parameters:

Motor power

 350w

Speed range

Programmable speed of 500~10000 rpm

Program operation

12 sets of programs can be stored, each set contains 6 running stages

Increase and decrease rate setting range

100rpm/s-2000rpm/s

Time range

0-60s

Suction cup

Φ19mm, Φ60mm

This machine can be equipped with heating function

heating range RT-100°C

Input Power

AC 220V (Please email us for AC 110V Version)

1000 W total for oilless pump and spin cater

24VDC high speed motor



Shipping Weight

46 kg (100 lbs)

Shipping Dimensions

40"(L) x 30"(W) x 30"(H)

Warranty & Compliance



One year limited with lifetime support

Rusting and damage due to improper storage condition or maintenance are not covered by warranty

Product Dimensions

450mm Depth ×280mm W ×340mm H


High Speed Vacuum anticorrosive Spin Coater Installation Conditions:

This equipment is required to be used at an altitude of 1000m or less, a temperature of 25°C±15°C, and a temperature of 55% Rh±10%Rh.

Water

Equipment is   equipped with inlet and outlet

Electricity

AC220V 50Hz,   must have good grounding

Gas

no need

Workbench

size 600mm*600mm*700mm, bearing weight 50kgs or more

Ventilation

need
