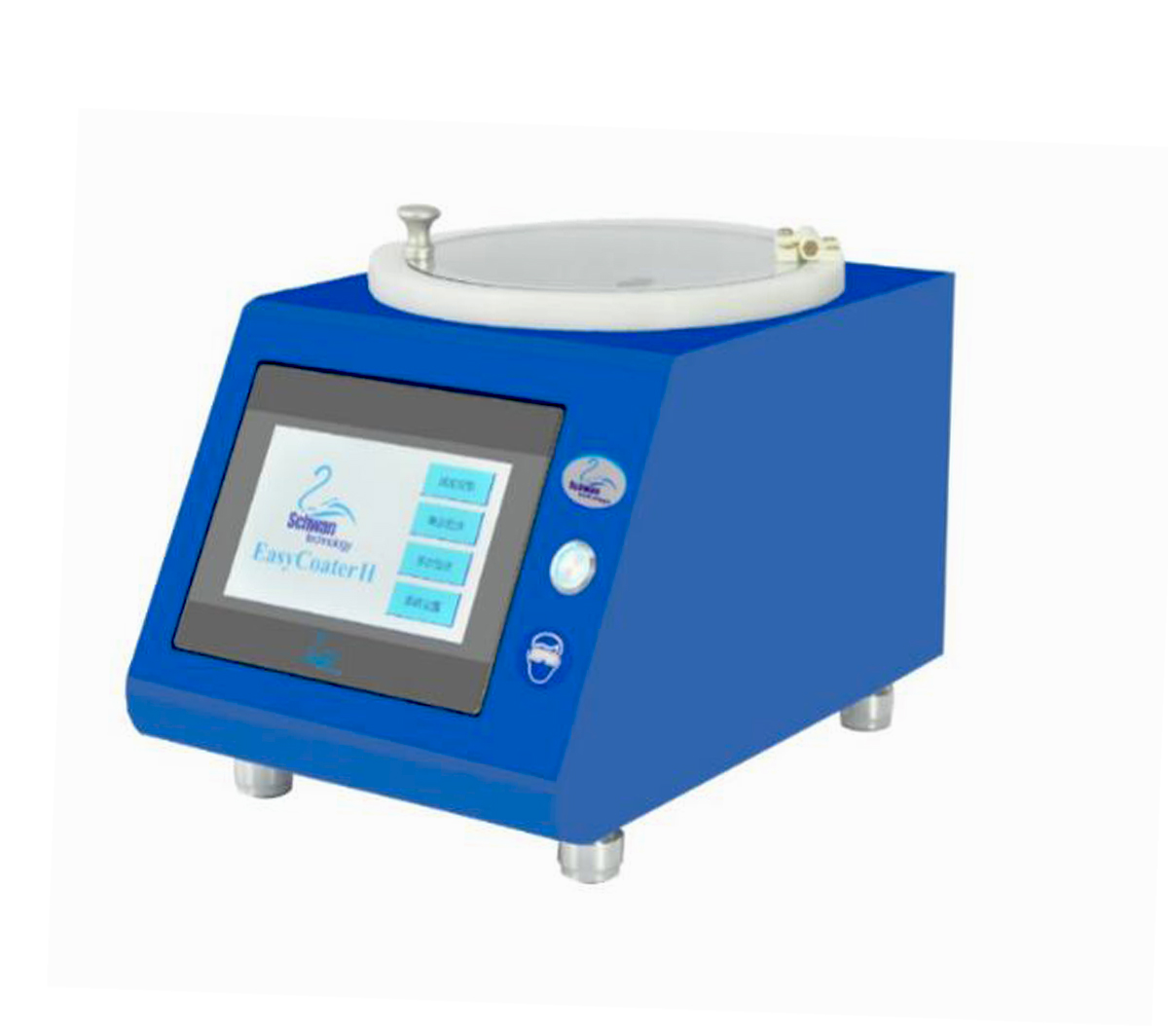

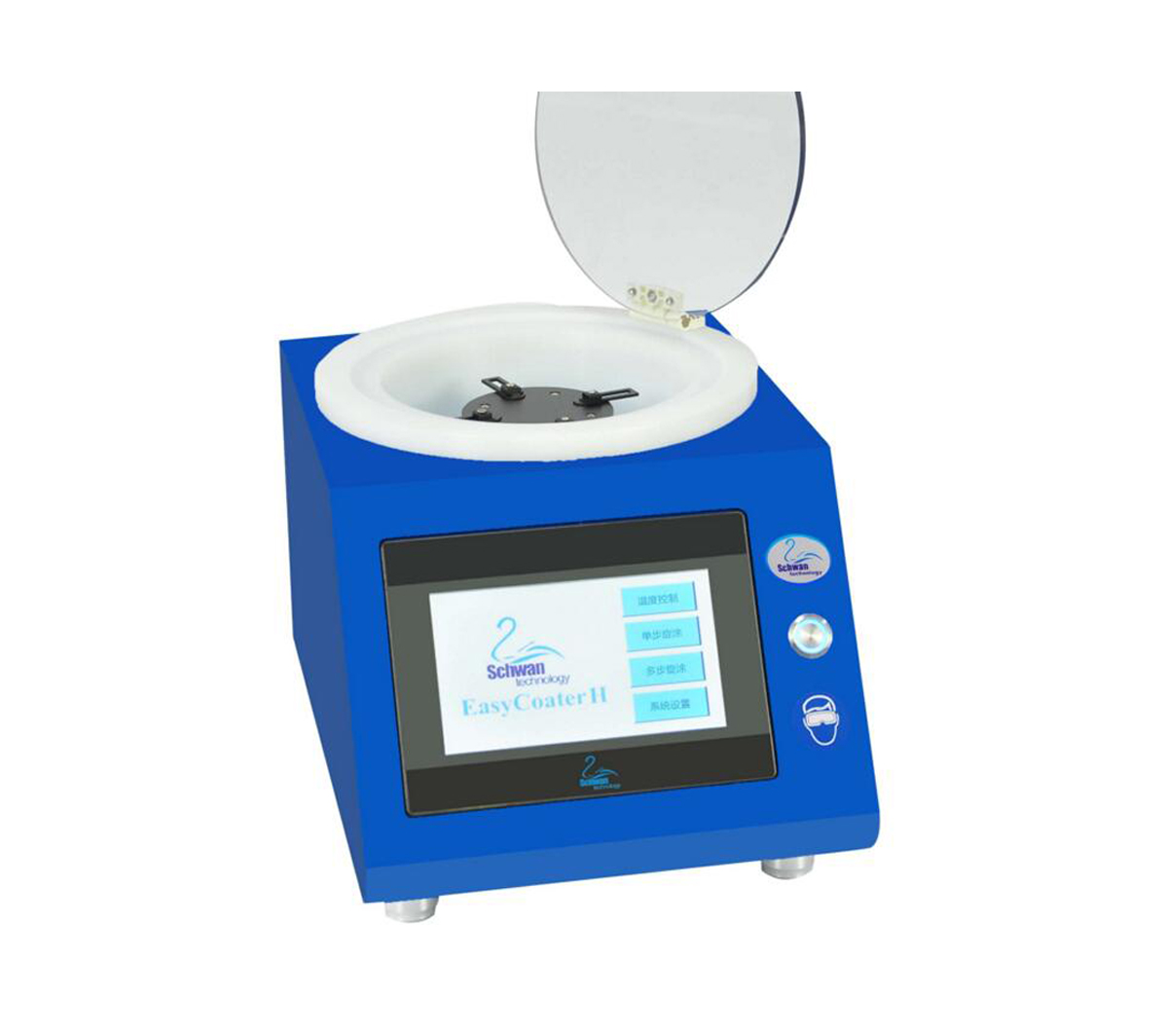

150℃ Programmable Temperature Control Vacuum Spin Coater with alloy chuck CY-IC5000

    Features

    1.200w brushless dc motor,single chip microcomputer control

    2.High-definition 4.3” display

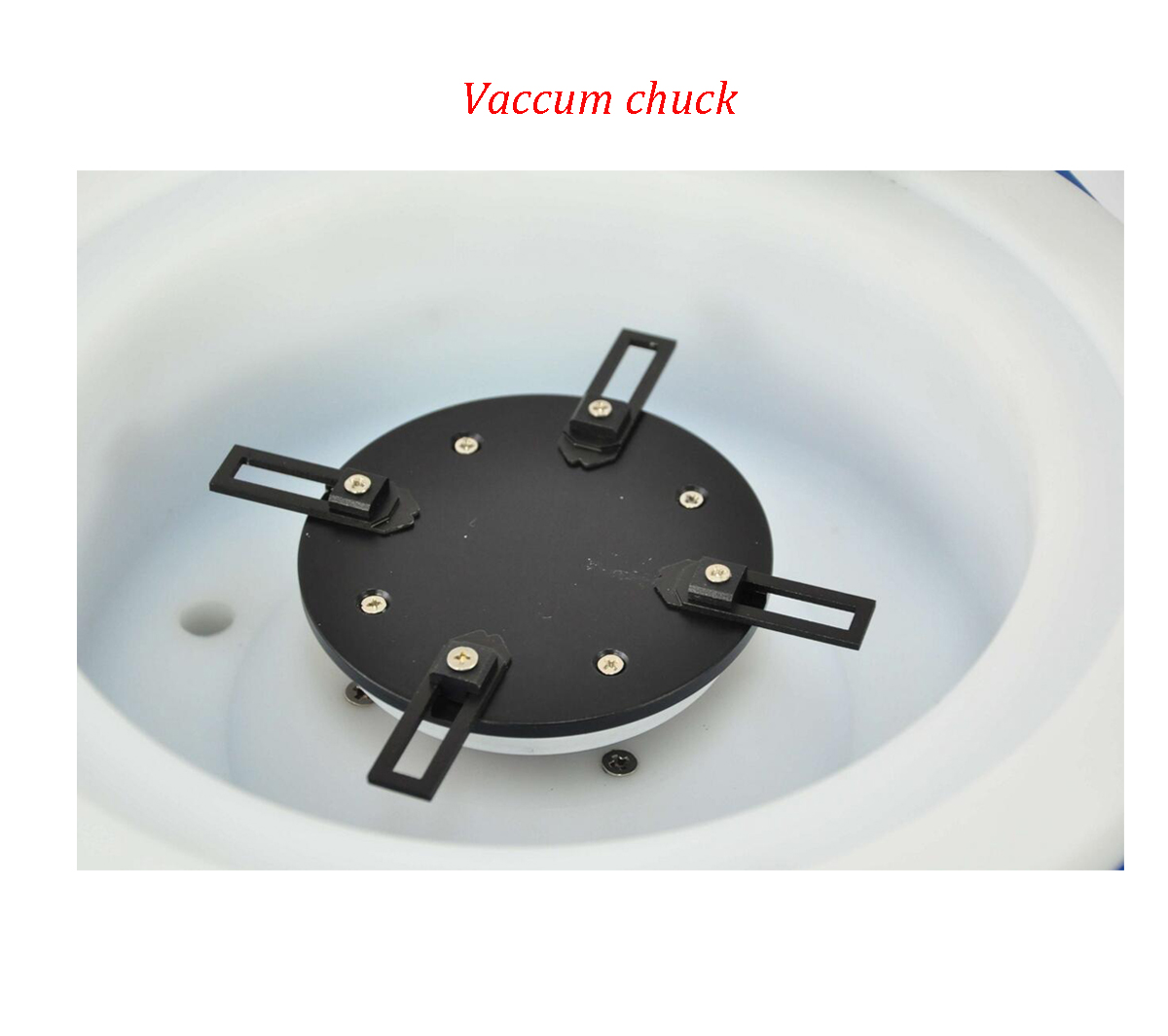

    3.Standard 2” alloy heating rotating vacuum chuck, can reach 150℃

    4.Pre-set single or multi-step coating operate

    5.Prevent glue blocking design

    6.PP anti- corrosion chamber, replaceable

    7.HDPE vacuum adhesive disc


Features

1.200w brushless dc motor,single chip microcomputer control

2.High-definition 4.3” display

3.Standard 2” alloy heating rotating vacuum chuck, can reach 150℃

4.Pre-set single or multi-step coating operate

5.Prevent glue blocking design

6.PP anti- corrosion chamber, replaceable

7.HDPE vacuum adhesive disc


Model No.

CY-IC5000

Heating plate

Φ50mm

Temperature range

Rm~150℃

Temperature accuracy

±0.5℃

Speed resolution

±1RPM

Rotating speed

100~5000RPM

Accelerated speed

100~3000rpm/s

Single step timing

0.1~3000s

Control

100 sets programmable control,100 steps

Motor power

Brushless DC Motor 200w

Heating power

150W

Working voltage

AC 220V, 50Hz,5A
