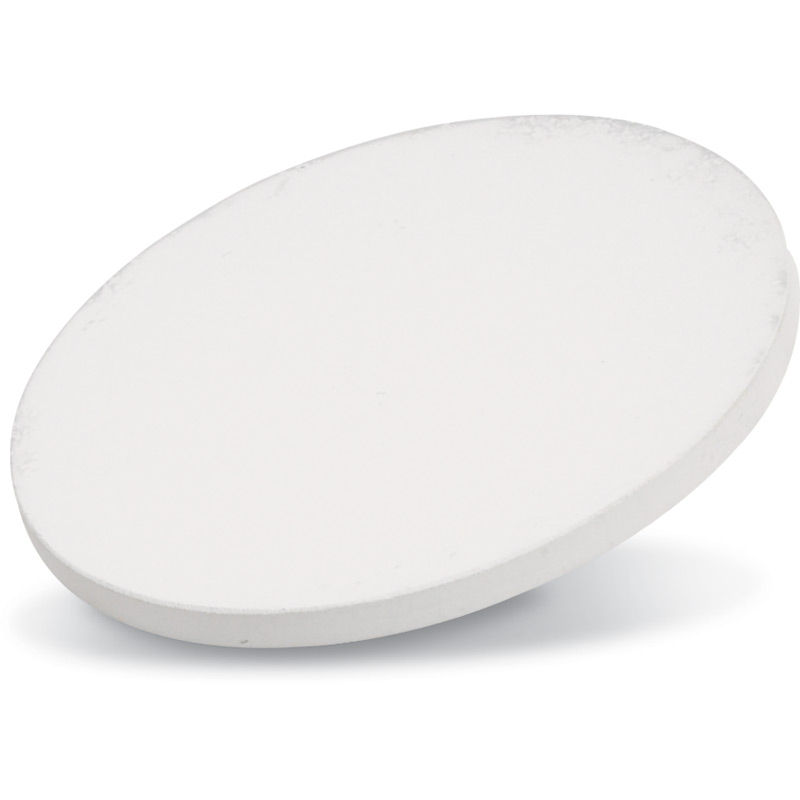

Yttrium Oxide (Y2O3) Sputtering Targets

Yttrium Oxide (Y2O3) Sputtering Targets

    Yttrium Oxide (Y2O3) Sputtering Targets


Yttrium oxide is a chemical compound with a chemical formula of Y2O3. It is white in color with a melting point of 2,410°C, a density of 5.01 g/cc, and a vapor pressure of 10-4 Torr at ~2,000°C. It is considered to be the most important yttrium compound. Yttrium oxide is used to make phosphors which provide the color red in televisions and yttrium iron garnets are an important element of microwave filters. It is evaporated under vacuum for the fabrication of semiconductors and passive components.

Yttrium Oxide (Y2O3) Specifications

Material Type

Yttrium Oxide

Symbol

Y2O3

Color/Appearance

White, Crystalline Solid

Melting Point (°C)

2,410

Theoretical Density   (g/cc)

5.01

Z Ratio

**1.00

Sputter

RF, RF-R

Max Power Density

(Watts/Square Inch)

20*

Type of Bond

Indium, Elastomer

Comments

Loses oxygen; films   smooth and clear.
