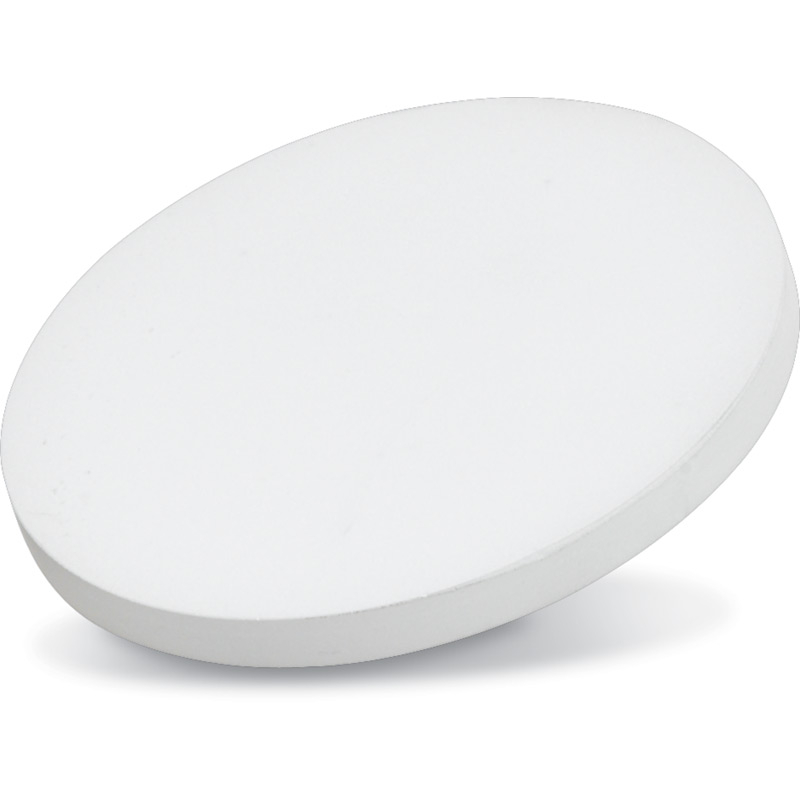

Zirconium Oxide (ZrO2, Fully stabilized 8mol% Y2O3) Sputtering Targets

Zirconium Oxide (ZrO2, Fully stabilized 8mol% Y2O3) Sputtering Targets

    Zirconium Oxide (ZrO2, Fully stabilized 8mol% Y2O3) Sputtering Targets


Zirconium oxide is a chemical compound with a chemical formula of ZrO2. It is often referred to as zirconia. It is white in appearance with a melting point of ~2,700°C, a density of 5.89 g/cc, and a vapor pressure of 10-4 Torr at ~2,200°C. Due to its resistance to cracks, zirconium oxide is heavily utilized for ceramic production. Cubic zirconia, which is zirconium oxide in cubic crystalline form, is sold by jewelers as a low-cost alternative to diamonds. Zirconium oxide is evaporated under vacuum for optical coatings, semiconductors, and fuel cells.

Zirconium Oxide (ZrO2, Fully stabilized 8mol% Y2O3) Specifications:

Material Type

Zirconium Oxide

Symbol

ZrO2

Color/Appearance

White, Solid

Melting Point (°C)

~2,700

Theoretical Density   (g/cc)

5.89

Z Ratio

**1.00

Sputter

RF, RF-R

Max Power Density

(Watts/Square Inch)

20*

Type of Bond

Indium, Elastomer

Export Control (ECCN)

1C234

Comments

Films oxygen deficient,   clear and hard.
