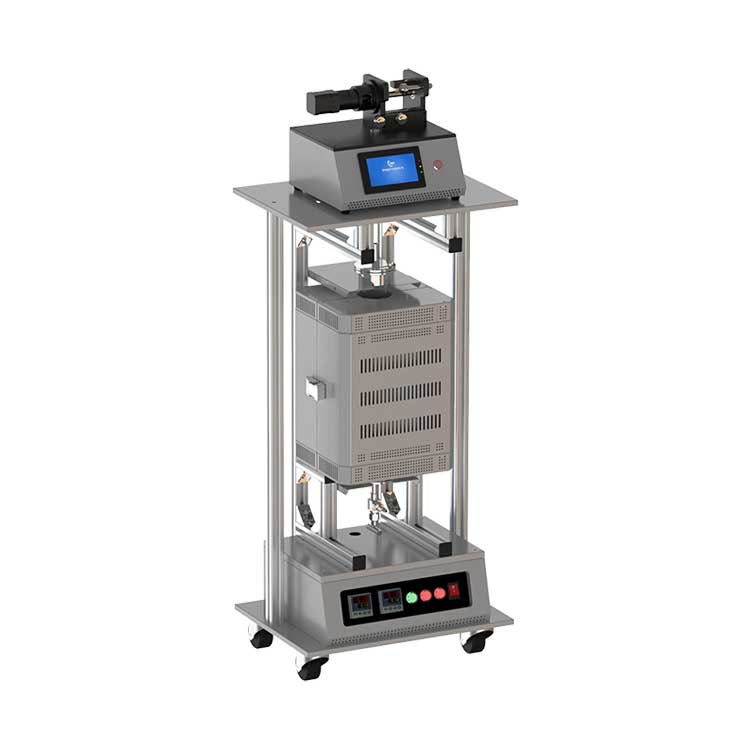

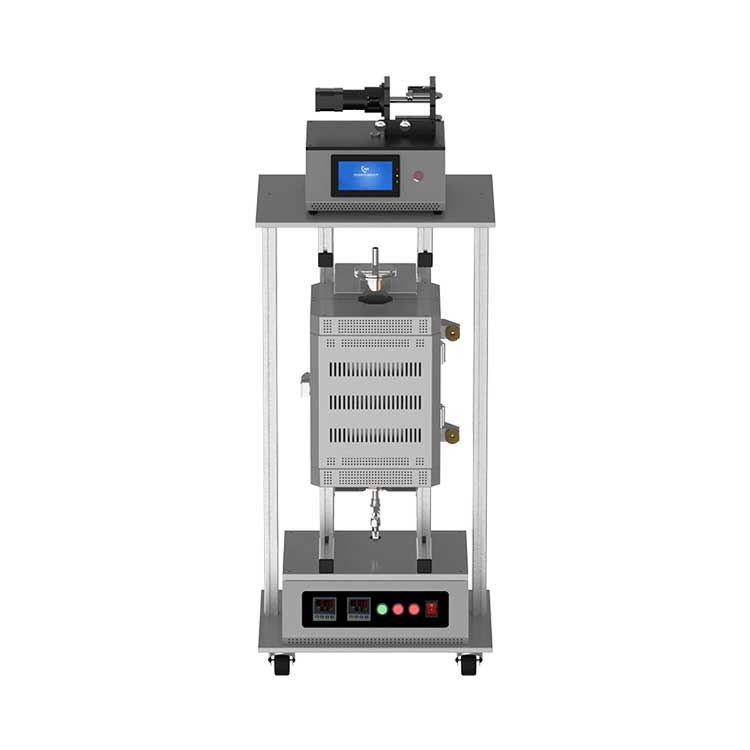

Bridgman crystal growth furnace is a small 1100℃ Bridgman crystal growth furnace with a 2-inch quartz tube and precision hanged wire travel mechanism.
Bridgman crystal growth furnace is used to grow small size crystals in the atmosphere-protected environment or sealed quartz crucible environment. The growth furnace adopts tube structure and has three zones: a heating zone, a gradient zone and a cooling zone, each of which uses PID independent temperature control. The suspension wire is made of platinum wire, which can withstand temperatures up to 1600℃. The lifting motor uses a stepper motor with the speed range of 0.03mm / h to 90mm / h. It can be adjusted to meet the needs of various crystal growth.
The field of use is for the growth of small size crystals in the atmosphere-protected environment or sealed quartz crucible environment.
Model | CY- O1200-60II-T-BMGH |
Furnace tube material | High purity quartz |
Furnace tube diameter | 50mm |
Furnace tube length | 540mm |
Furnace chamber length | 280mm |
Heating zone length | 100mm+100mm |
Operating temperature | 0~1100℃ |
Temperature control accuracy | ±1℃ |
Temperature control mode | 30 or 50 segment program temperature control |
Display mode | LCD touch screen |
Sealing method | 304 stainless steel vacuum flange |
Flange interface | 1/4" ferrule connector (Ø8 pagoda-shape connector) |
Vacuum | 4.4E-3Pa |
Rated power | 4.5KW |
Power supply | AC:220V 50/60Hz |

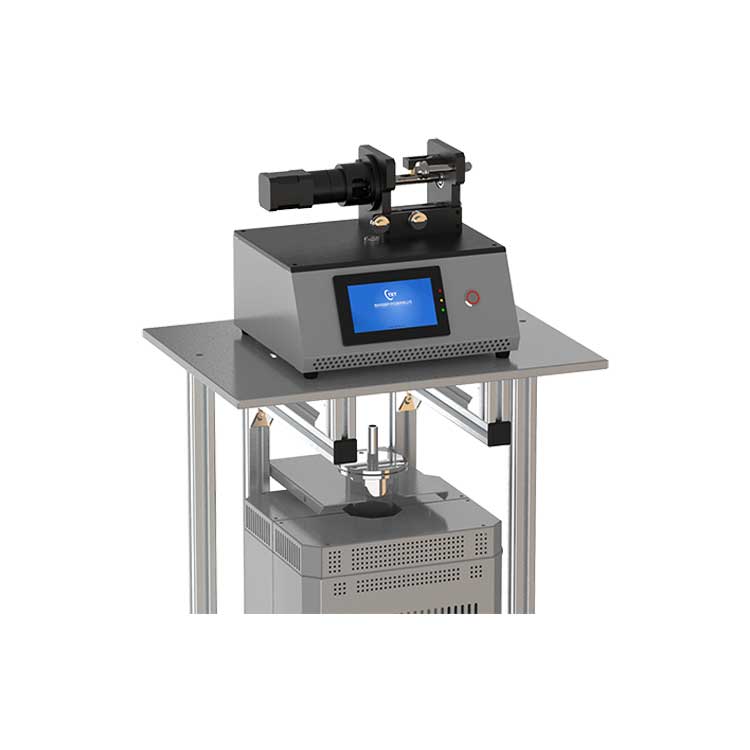

Precision lifting machine | Speed range: 0.03~90mm/h (adjustable) Total travel: 900mm Motor power: 30W |
