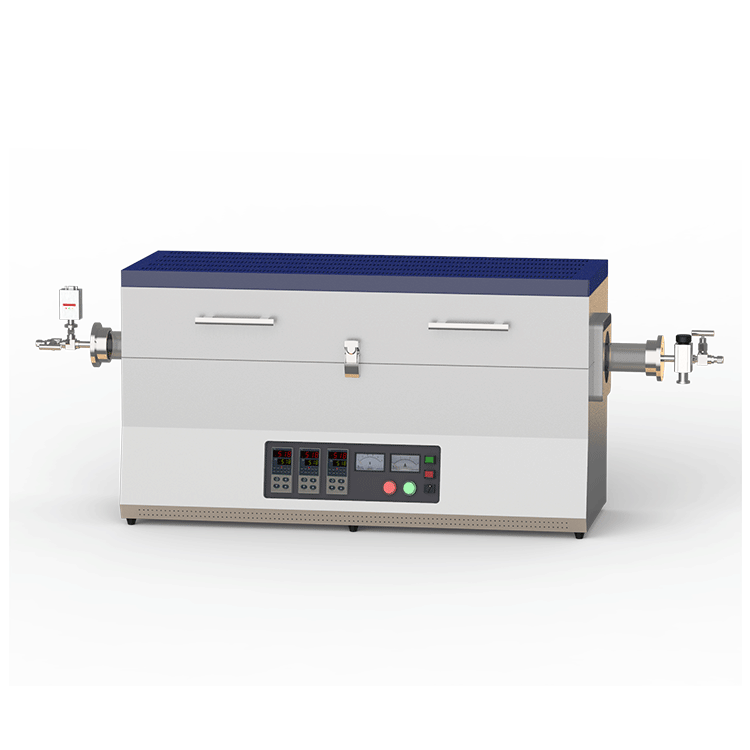

Three-heating zone tube furnace uses high-quality electric furnace wire as heating element, the maximum heating temperature is 1200℃, and the diameter of the quartz furnace tube is 50 mm. If the customer needs, can contact the technician to customize the larger diameter furnace tube.
This tube furnace has three heating zones, and the heating zone length each section can also be customized by contacting a technician. The temperature zone is controlled by the precision temperature control meter for PID temperature control. The 30-segment temperature rise and fall program can be edited, and the overheating and open circuit of thermocouple protection functions are also available. The flanges on both sides of the furnace tube are equipped with a digital vacuum gauge and a mechanical pressure gauge, which can be used to control the atmosphere in the furnace tube. The instrument adopts LED highlight digital tube display and push-button operation. Even non-professionals can master the use of the instrument after simple training, which can greatly improve your experiment efficiency.
Tube furnaces are mainly used in metallurgy, glass, heat treatment, lithium battery positive and negative materials, new energy, abrasives and other industries, and can also be used for heat treatment in atmospheric environment. It can also be used to form a CVD system for related coating test production.
Model | CY-O1200-50III-C |
Furnace tube material | High purity quartz |
Furnace tube diameter | 50mm |
Furnace tube length | 1300mm |
Furnace chamber length | 1060mm |
Heating zone length | 300mm+300mm+300mm |
Operating temperature | 0~1100℃ |
Temperature control accuracy | ±1℃ |
Temperature control mode | 30 or 50 segment program temperature control |
Display mode | LED (highlight digital tube display) |
Sealing method | 304 stainless steel vacuum flange |
Flange interface | 1/4" ferrule connector (Ø8 pagoda-shape connector) |
Vacuum | 4.4E-3Pa |
Power supply | AC:220V 50/60Hz |
