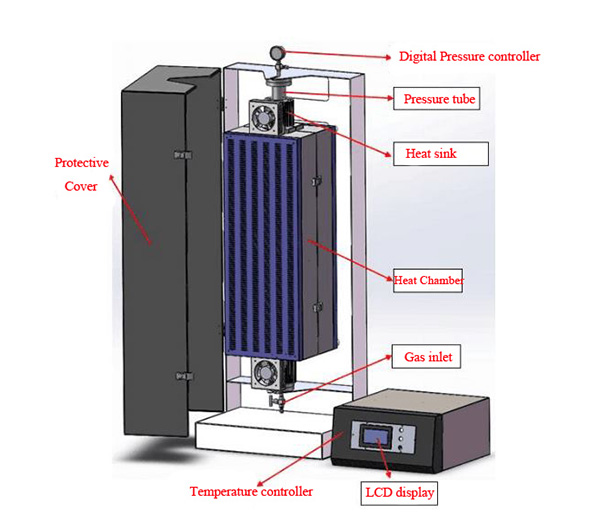

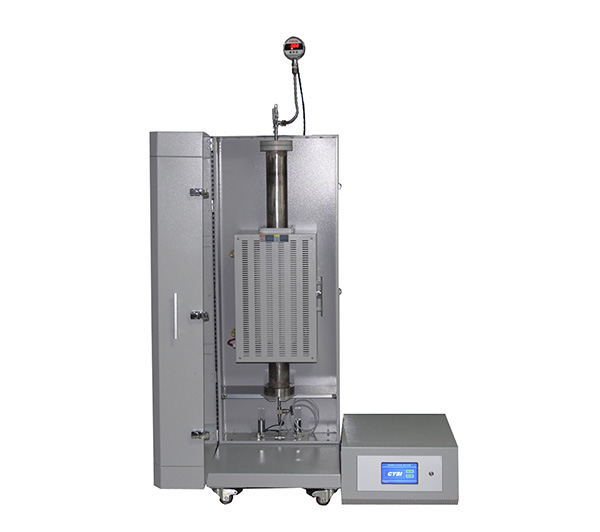

CY-1200X-I-HPV is a high-pressure verticle split tube furnace with two heating zones. The processing tube is made of 70 mm OD. Ni-based superalloy with 1100oC max working temperature, which is designed for growing crystal via the high-pressure hydrothermal method.
High temperature high pressure vertical tube furnace | ||
Tube Material | SS310S Stainless Steel alloy O.D80mm x I.D70(±2) mmO.D60mm x I.D 50(±2) mm | Ni based super-alloy GH747OD 60mm x ID 52 mm |
Copper gasket | O.D80mm tube:Gasket 99 O.D x 82 I.D x 2.2mm O.D 60mm tube: 82 O.D x 63.6 I.D x 2.2mm | For 60mm O.D tube: 82 O.D x 63.6 I.D x 2.2mm |
Working Pressure vs. Working Temperature | 577 PSI max at ≤500°C511 PSI max at ≤600°C428 PSI max at ≤700°C363 PSI max. at ≤800°C185 PSI max at ≤900°CAttention: Never heat up above 900°C | 725 PSI (5Mpa) max. at ≤800°C 435 PSI (3Mpa) max. at ≤900°C217 PSI (1.5Mpa) max. at ≤1000°C145 PSI (1Mpa) max. at 1100°C Attention: Never heat up above 1100°C |
Pressure Measurement Range | 0~15Mpa | 0~15Mpa |
Max. Heating Temperature | 900°C | 1100°C |
Working Gases | Inert gas & Hydrogen | Inert gas, hydrogen and oxygen |
Heating Temperature | 800°C continuous | 1100°C max.for < 1hr 1000C for continuous |
Heating Rate | ≤30°C/min | ≤20°C/min |
Heating Element | Fe-Cr-Al Alloy doped by Mo | Fe-Cr-Al Alloy doped by Mo |
Heating Zone | Total length: 440mm Single zone Constant temp. zone: 150mm ±1°C, or as customized | |
Temperature Control | PID control method with over-temp protection Temperature stability: ±1°C | |
Thermocouple | Omega 3mm OD K Type with high temperature tolerance (220°C) connector | |
Positive Pressure Sensor | Installed in high pressure flange | |
PC control | Yes | |
Pressure Alarm System | Upper limit and lower limit control method Alarm strob and warning whistle | |
Voltage | AC 220V 50/60Hz, or as customized | |
Power | 2.5KW(20A breaker required) | |
Warranty | One year limited manufacturer warranty with lifetime support (Consumable parts such as processing tubes, o-rings and heating element are not covered by the warranty). |
