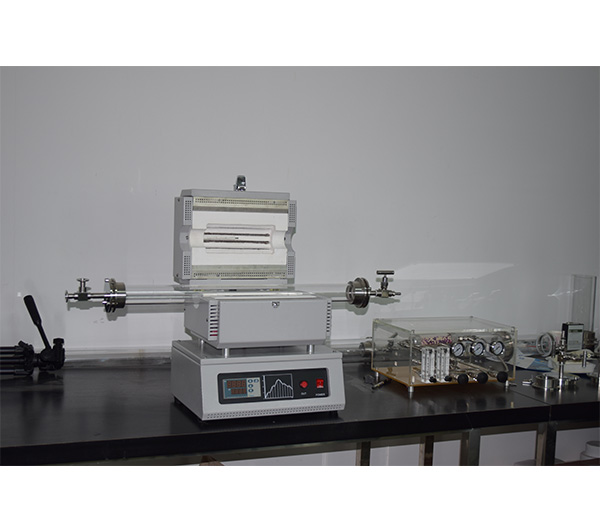

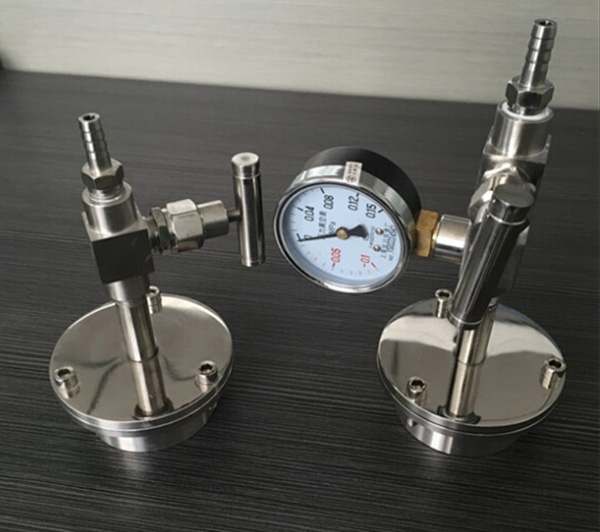

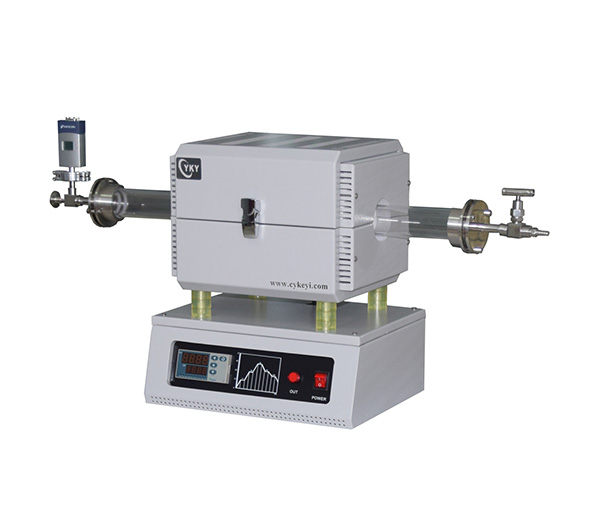

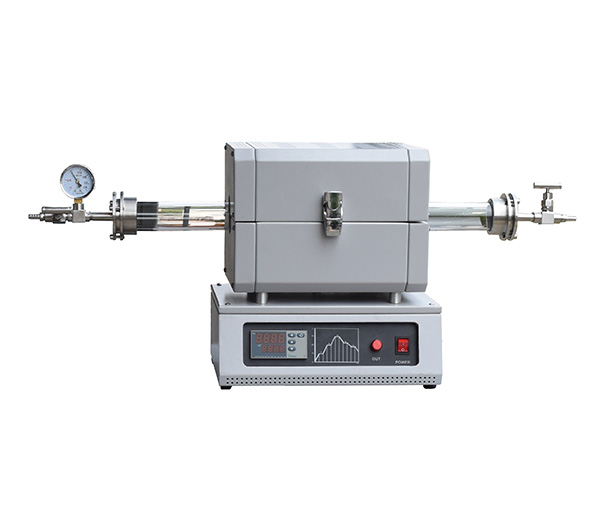

CY-O1200-50ICS is a CE certifiable compact and energy saving (750W power consumption) split tube furnace with a max. working temperature of 1200°C and All electric parts . The furnace can be adopted either a 1", 2" or 2.36"(60mm) O.D quartz tube with a pair of stainless steel vacuum sealing flanges. The 1/4" barb fitting for rubber hose connection allows heating sample in the vacuum or flowing gas. The built-in precision temperature controller can provide up to 30 segments of heating and cooling steps with +/- 1 °C accuracy.
Application of horizontal mini tube furnace
1.CVD experiment
2.Preparation of carbon nanotubes
3.Growth of graphene
4.Crystalline silicon substrate coating
5.Diffusion welding for metal materials
6.Heat treatment under the vacuum of atmosphere surroundings
| Furnace Structure | 1.Double layer steel structure.2.High purity Al2O3 fibrous insulation with Max. energy saving |
| Model No. | CY-O1200-50ICS |
| Display | LED button controller |
| Limiting temperature | 1200℃ |
| Working temperature | ≤1150℃ |
| Heating rate | 0-20℃/min |
| Heating zone length | 200mm |
| Heating zone | Single zone |
| Max outer tube diameter | 50mm |
| Tube length for use | 450mm |
| Temperature accuracy | ± 1℃ |
| Heating element | Fe-Cr-Al alloy adopt by Mo |
| Thermal couple | K TYPE |
| Max Power | 750w |
| Temperature control | 30 steps programmable PID control |
| Chamber material | Alumina fiber |
| Over-temperature alarm | Yes |
| Over-current alarm | Yes |
| Working voltage: 220V 50Hz, or as customized |
