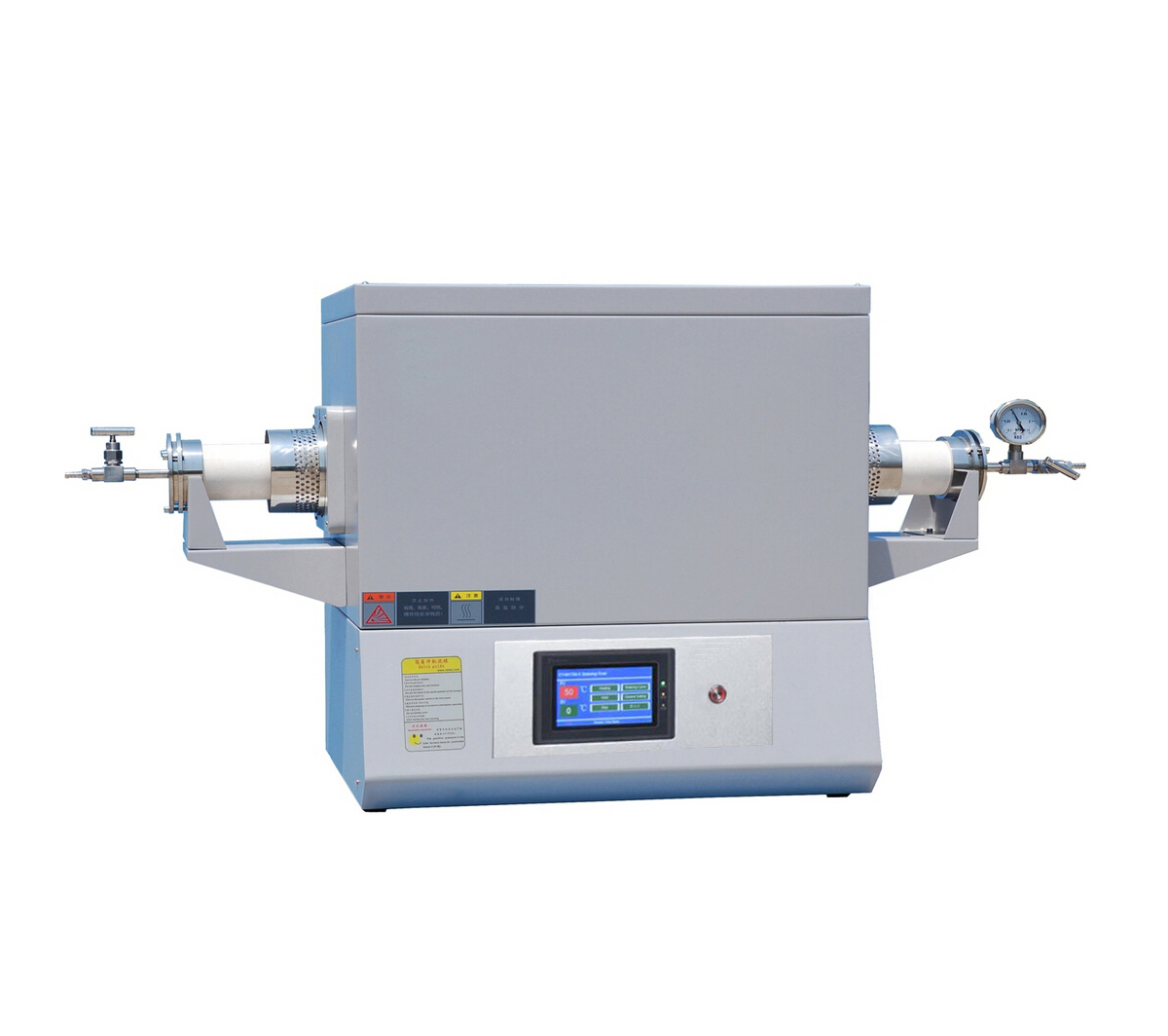

CY-T1700-80IT is a compact tube furnace with High Purity MoSi2 heating rods and high purtiy corundum tube which can reach 1700℃.The tube furnace is controlled by a 30 segment programmable with high precision SCR (Silicon Controlled Rectifier) digital controller with7” touch panel. It is widely used in material & chemical labs to sinter all types of new material samples under vacuum or other gas conditions
Model No. | CY-T1700-80IT |
Display | 7” LCD Touch Panel |
Limiting temperature | 1650℃ |
Working temperature | ≤1600℃ |
Heating rate | 0-20℃/min |
Heating Zone length | 300mm, constant temperature zone150mm |
Corundum tube diameter | OD80*1000mm |
Temperature accuracy | ± 1℃ |
Heating element | High Purity MoSi2 Rod |
Thermal couple | B TYPE |
Cooling method | Double layer structure with fan cooling |
Temperature control | 30 steps programmable PID control |
Chamber material | Alumina fiber |
Over-temperature alarm | Yes |
Over-current alarm | Yes |
Sealing flange | S.S vacuum flange |
Cooling method | air forced cooling |
Gas mixer | One way with Float Flow Controller |
Main Power | 4.5Kw |
Working voltage | AC220V,50Hz |
