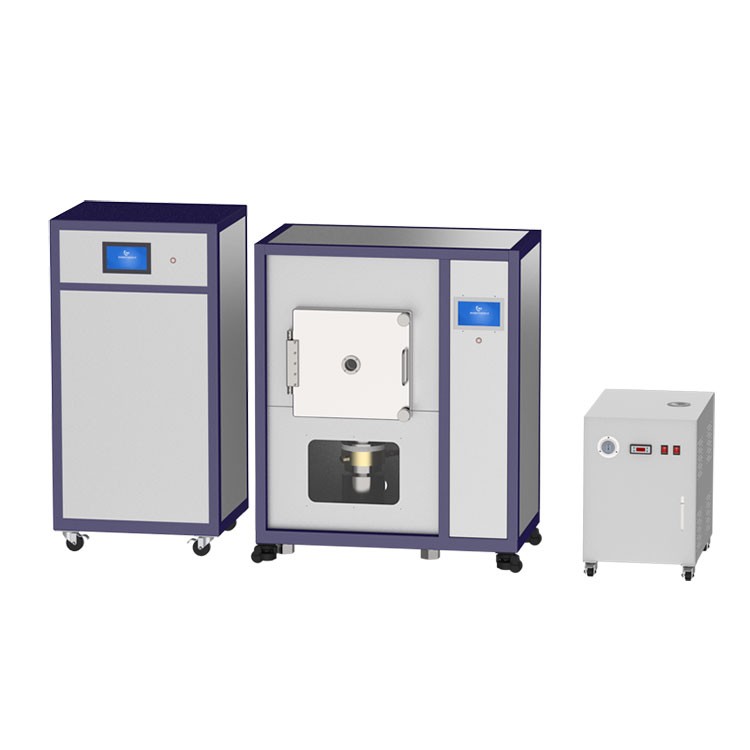

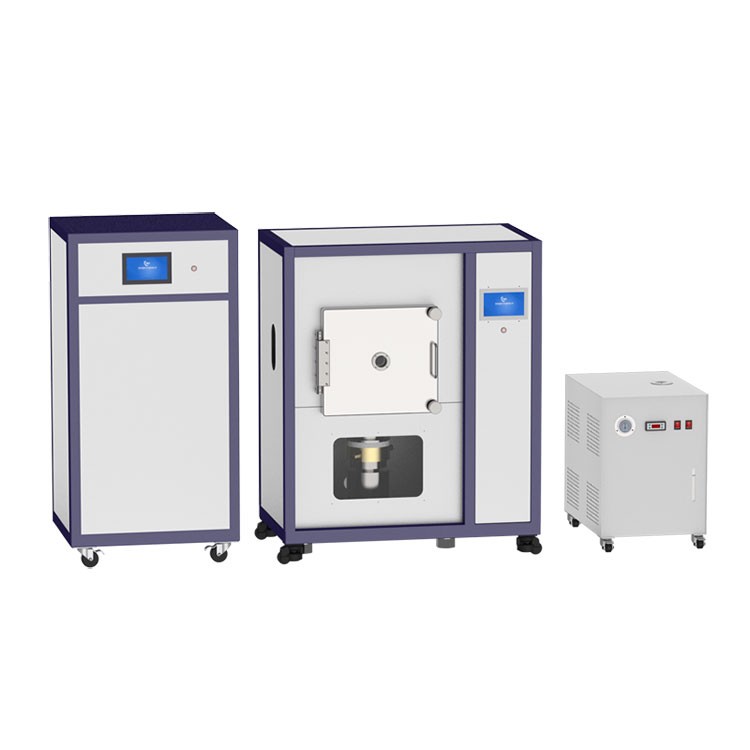

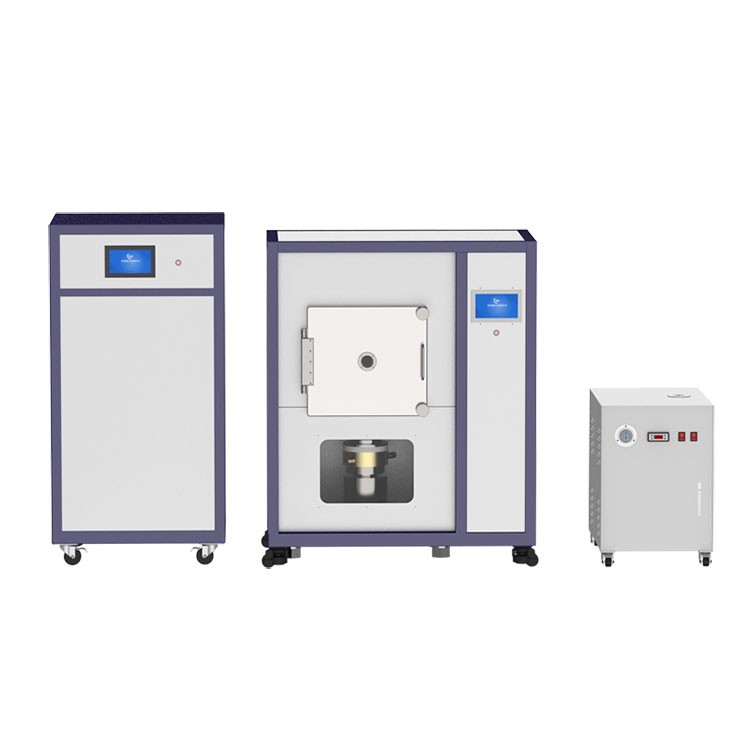

Spark plasma sintering furnace (SPS) (20T, 1600℃)
Spark plasma sintering furnace has a maximum temperature of 1600℃. It can be used for material annealing, material thermocompression bonding, surface treatment and synthesis, etc. The treated sample can be metal, ceramic, nano material, amorphous material, and the like. It is perfectly fit solid electrolyte and electric thermal material research.
SPARK PLASMA SINTERING (SPS) is a new technology for rapid powder consolidation. SPS uses a high current pulsed power supply to excite and promote material consolidation and reaction sintering processes. Compared with the traditional technology, the SPS can adjust the density values of various conductors, non-conductors and composite materials to any demand value during the processing. SPS minimizes the experimental time and energy consumption and also maintain the micro-nano structure of the material. Therefore, since its birth, it has quickly become an important tool in many fields such as scientific research, new material research and development, and industrial production.
Spark plasma sintering furnace specifications:
Structure | • Stainless steel vacuum chamber • Hot pressing system • DC pulse power supply • Vacuum system • Hot pressure control system |
power | 20KW |
Input power | AC380V 50Hz Three phases |
Output current | DC0-1500A (Digital Control) |
Output voltage | DC0-10V (Digital Control) |
Pulse frequency | • 5 - 255 ms (Adjustable) • 2 - 1000 Hz (Adjustable) |
Maximum temperature | • 1200℃ ( K-type thermal couple ) • 1600℃ (B-type thermal couple ) • Two types of thermal couple are included |
Temperature control system | • Precision Eurotherm temperature controller is built in •According to the fastest heating rate, the over temperature is less than 3℃ • Temperature accuracy: < 0.1℃ |
Hydraulic press | • Manual operated hydraulic press to apply pressure. • Max pressure: 20 T • Digital Pressure guage is built in with over-pressure alarm. |
Mold | • Equipped with hot isostatic graphite mold (made in Japan) • Die core diameter: 12 - 50 mm (can be customized according to customer requirements) • Made of high purity graphite by HIP processing, Max. Pressure for the die is 50 MPa, and Max. Load from the hydraulic press is dependent on die's ID |
Sintering zone | 100mm |
Vacuum chamber | • Square stainless steel chamber • Inner double layers stainless steel chamber to pass cooling water |
Vacuum degree (room temperature) | • 10 Pa (7.5×10^-2 torr) (mechanical pump with two-stage rotary vane vacuum pump) • 1 Pa (10×10-4 torr) (Molecular pump system, available at our company) |
Maximum heating rate | 300℃/min |
Circulating water cooler | The equipment is equipped with a recirculating water chiller with a flow rate of 58L/min |
Standard accessories | • Dedicated SPS hot pressing mold • K & B type thermal couples • Silicone sealing ring • Sample demoulding tool |
Dimension | • Power supply: 760 L × 460 W × 1820 H, mm • Furnace: 970 L × 720 W × 1400 H, mm |
Quality certification | CE certified |
